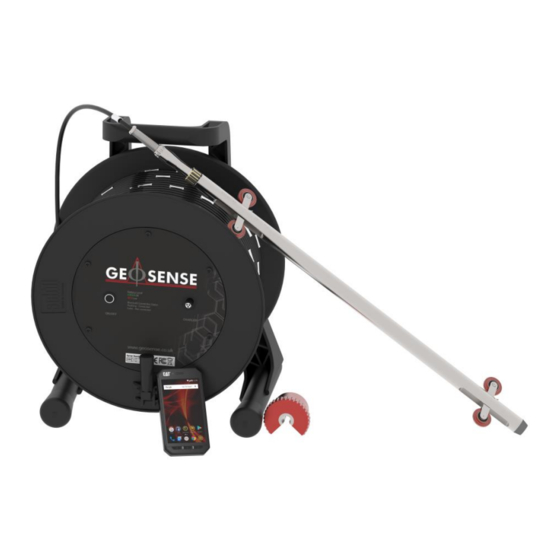

MEMS Digital Portable
Horizontal Inclinometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEMS DPI I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Geosense MEMS DPI I

Summary of Contents for Geosense MEMS DPI I

  • Page 1 MEMS Digital Portable Horizontal Inclinometer...

  • Page 2: Table Of Contents

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 TABLE OF CONTENTS ................................0 VERSION CONTROL ........................3 INTRODUCTION ..........................3 2.1.......................... 4 ENERAL ESCRIPTION 2.2. HEORY OF PERATION ......................... 5 2.3. EASUREMENT OF NCLINATION ..................... 7 CONFORMITY ..........................8 MARKINGS ........................... 10 DELIVERY .............................
  • Page 3 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 12.2. ASD R EADOUT ..........................61 12.3..........................62 EEL AND ABLE SPECIFICATIONS ..........................63 SPARE PARTS .......................... 65 RETURN OF GOODS ........................ 66 14.1. ETURNS ROCEDURE ........................66 iii. Chargeable Service or Repairs ....................66 Warranty Claim ..........................

  • Page 4: Version Control

    Feb 2022 2. INTRODUCTION This manual is intended for all users of the Horizontal Portable Inclinometer Systems manufactured by Geosense® and provides information on their operating principles, conventions, operation and maintenance. It is VITAL that all personnel responsible for the use of the Portable Inclinometer...

  • Page 5: General Description

    Analogue to a Digital signal, making it particularly suitable for the demanding environments of geotechnical and civil engineering applications. Geosense® Inclinometer probes carry ‘onboard’ calibration data so that probe / cable / reel / readout combinations are all interchangeable. Each element also has a unique serial number.

  • Page 6: Theory Of Operation

    Theory of Operation Special tubes, commonly referred to as Casing or Access Tubes, are installed into or fixed onto the structure or formation to be monitored. (see Geosense® Inclinometer Casing Installation Manual). Inclinometer casing is a specially machined ABS tube that has 4 equally spaced, parallel ‘keyways’...
  • Page 7 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 The Geosense® Digital Horizontal Inclinometer Probe houses a pair of extremely sensitive Micro Electro-Mechanical System (MEMS) Tilt Sensors. In the Horizontal probe, the ‘A’ axis is mounted with its ‘Null’ or ‘Zero’ output at 0 degrees from horizontal.

  • Page 8: The Measurement Of Inclination

    ‘gauge length’ (see sketch) and another reading is taken. This process is repeated up the full length of the casing. To minimise the issue of ‘Human Error’, Geosense® has introduced the option of ‘Automatic Inclinometer Data Acquisition’ into its proprietary software. This utilises...

  • Page 9: Conformity

    Email: info@geosense.co.uk Web: www.geosense.co.uk. Declaration of Conformity We Geosense® Ltd at above address declare under our sole responsibility that the Geosense® products detailed below to which this declaration relates complies with protection requirements of the following harmonized EU Directives: • Low Voltage Directive 2014/35 •...
  • Page 10 EU Directives: We Geosense Ltd at above address declare that the equipment detailed below is in conformity with the following UK Regulations and their corresponding Statutory Instruments: •...

  • Page 11: Markings

    V1.1 09/02/2022 4. MARKINGS Figure 3: Geosense Inclinometer Probe Markings All Geosense® Digital MEMS Inclinometer systems are labelled with the following information and each component carries a unique identification serial number that is included on the labels. Product group: MEMS Inclinometer system •...

  • Page 12: Delivery

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 5. DELIVERY This section should be read by all users of equipment manufactured by Geosense®. 5.1. Packaging Geosense® Inclinometers are packed for transportation to site. Packaging is suitably robust to allow normal handling by transportation companies. Inappropriate handling techniques may cause damage to the packaging and the enclosed equipment.

  • Page 13: Storage

    Baseline Prior to any survey taking place, the appropriate Geosense® Inclinometer Casing will need to have been installed on site. The Geosense® Horizontal Inclinometer system can be used to measure the profile of the casing in relation to a presumed fixed point.

  • Page 14: Zone Of Influence

    6.3. Zone of Influence The Geosense® Horizontal Inclinometer measures absolute angle, however the system as a whole is relative when referring to a measurement of displacement over a profile. This means that movement (displacement as a result of heave or settlement) in the vertical plane must be measured in relation to a fixed end of the system.

  • Page 15: Operational Modes

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 6.4. Operational Modes The Geosense® Portable Horizontal Inclinometer is designed to be used on installations where either both ends, or only one end of the inclinometer casing is accessible. Installation where both ends are accessible Access End...
  • Page 16 V1.1 09/02/2022 Where one end is not accessible, Geosense® are able to supply a dead-end pully which allows for the rope to be looped back and to the operator. Figure 6: Dead-end pulley (pipe fittings may vary dependent on casing used)

  • Page 17: Operation

    09/02/2022 7. OPERATION This section of the manual is intended for all users of portable Geosense® inclinometer equipment and is intended to provide guidance with respect to its use. It must be remembered that no two installations will be the same and it is inevitable that some ‘fine tuning’...

  • Page 18: System Component Descriptions

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 Illustrated below (Figure 10: Inclinometer Components) are the components of the Geosense® Inclinometer and Readout System A. INCLINOMETER PROBE B. CABLE C. CABLE REEL with CHARGER D. ASD (ANDROID SMART DEVICE) with CHARGER and STYLUS E.
  • Page 19 USB charger / power supply. 5) CABLE SUPPORTS For fitting into the top of all Geosense® Inclinometer casing (and the casing from most other manufactures), these are used to position the probe at a repeatable location within the casing.

  • Page 20: Battery Charging

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 7.3. Battery Charging Whilst the Reel and ASD have long battery lives, fully charging the equipment prior to visiting site is strongly recommended. As with most handheld equipment, the ASD can be easily charged using most USB chargers and power banks.
  • Page 21 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 5) Remove the cap from the reel connector and fit the charger lead to the reel. (Figure 12: Charge Port - Inclinometer Reel) Figure 12: Charge Port - Inclinometer Reel 6) Connect the charger to a mains electrical supply, switch it on and allow the readout to charge fully.

  • Page 22: Installing The Inclinometer Application On The Asd

    09/02/2022 7.4. Installing the Inclinometer Application on the ASD It is necessary to install the Geosense® software Inclinometer Application onto the ASD from the Google® Play Store. This will ensure the latest version is downloaded. For this it will be necessary to establish an ‘Identity’ with Google® and establish a connection to the internet.

  • Page 23: System Assembly And Operation

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 8. SYSTEM ASSEMBLY AND OPERATION 8.1. Assembling the System Most of the components of the Inclinometer Readout System are contained within the hard carry case. Only the cable, reel and its charger are housed within the soft case.
  • Page 24 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 7) The Geosense® Horizontal Inclinometer has a connection at each end. This is so the probe can be rotated around the Z-axis to allow for the entry end to be changed between surveys.
  • Page 25 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 Machined mating guides must be aligned 8) Remove the Android ASD from the hard case and turn it on. (For detailed ASD specific instructions see Section 9 later in this manual).
  • Page 26 10) On the ASD, check that the ‘Bluetooth’ symbol is showing in the top bar. (By default, it is set to turn on but if it is not, go to the ASD settings and turn it on). 11) Open the Geosense® Inclinometer Application ‘IncloPRO’. For detailed ‘App’ operating instructions, see Section 9.
  • Page 27 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 Figure 15: Paired Reels Screen 12) When using the App for the first time, it will be necessary to search for the Reel to carry out this pairing operation. Once paired, the ASD memorises the configuration.
  • Page 28 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 14) Tap the ‘Connect’ icon again if you wish to break the Bluetooth connection. It should return to an ‘all white’ colour. (If you are about to conduct a survey, leave the reel connected for now). 15) It is good practice to make sure the connection to the probe is good and the readings are relatively stable before the probe is inserted into the casing.
  • Page 29 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 16) Remove the cover from the inclinometer access tube if there is one. (A secure cover is strongly recommended to stop any foreign objects or animals entering the pipe work. Horizontal installations if not sealed can house rodents which can deposit nesting material that will block the access casing) Prior to any horizontal survey, the pull rope must have been installed within the inclinometer casing.
  • Page 30 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 II. If using a double ended installation, pull the rope through to the access end from the far end. Have someone stationed at the far end to make sure the loose end of the rope does not enter the installation. If you lose the end of the rope it may be difficult or impossible to recover.
  • Page 31 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 18) Release the brake screw on the side of the Cable Reel.
  • Page 32 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 19) Attach the dead-end pulley rope that is present inside of the inclinometer casing to the base end of the inclinometer probe. (For the first survey run, attach the eyelet to the end of the probe marked by 2 rings). Figure 18: Eyelet cap attached to second end of the probe, marked with 2 rings in later models (a 2 is shown in this model) It is CRITICAL that the pulley rope is FIRMLY ATTACHED...
  • Page 33 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 21) With tension applied to the “tension-end” of the rope, insert the Inclinometer probe into the casing in the vertical keyways. The fixed wheels must run at the base, with the sprung wheels gently slotted into the start of the access casing by hand.
  • Page 34 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 22) With tension applied to the “tension-end” of the rope, insert the Inclinometer probe into the casing, with the wheels engaged into the keyways. The sprung wheels will always be at the top, with the fixed set at the base. Figure 21: Inclinometer probe inserted into access casing.
  • Page 35 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 23) Once the probe has entered the casing fully, the probe should be pulled to the far end using the “tension-end” of the rope for the start of the survey. The survey should always be started from the far end. You must always start the survey from the same position (i.e.
  • Page 36 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 25) Using the rope and the cable, move the Inclinometer Probe to the far end of the casing, stopping when the ferrule marking the correct distance (depth if compared to the vertical system) is reached. Keep tension on the rope and cable at all times to avoid any slack.
  • Page 37 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 30) Once you reach the top/access end with the probe, the survey needs to be repeated, with the probe rotated 180 degrees around the Z-Axis. First Survey Orientation – 1 ring end connected to reel Second Survey Orientation –...

  • Page 38: Using Inclopro Software Application (Android)

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 9. USING INCLOPRO SOFTWARE APPLICATION (ANDROID) 9.1. Recording a Survey The following steps detail how the readings can be taken with the IncloPRO Android application. Section 8. SYSTEM ASSEMBLY AND OPERATION must be followed for the operation of the survey.
  • Page 39 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 I. If this is the first time a site has been visited for a survey, add the site/project that the Inclinometer survey is to be conducted on. i. Press the “+” symbol to the right and below the “Site List” and add the name of your site or project.
  • Page 40 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 Table 1: Borehole configuration settings Borehole Settings Description Borehole Name Text entry for the name of the borehole the survey is being conducted on Borehole Type The orientation of the survey. Different probes are required for different orientations First Reading Depth The depth/distance from the access/top...
  • Page 41 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 4) When you are ready to begin the survey, select the “TAKE READINGS” button Figure 27: Take readings...
  • Page 42 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 5) With the probe inserted to the far end of the casing and at the first depth to be recorded, wait for the probe temperature to stabilise Figure 28: Probe stabilising...
  • Page 43 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 6) Once the probe has stabilised, you will be notified, and the survey can begin by pressing “Begin Survey”. Figure 29: Begin survey once the probe has stabilised...
  • Page 44 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 7) Once the survey begins, the first reading will show the live readings, the depth will be the furthest point from the access end, as set in the borehole information in the app. Make sure that the depth marked on the cable matches the depth shown in the app for each reading.
  • Page 45 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 1) Once the reading has been accepted, the app will move to the next depth (in this example, 7.5m as the probe is 0.5m long (as set in the borehole setup)). The probe will always move through three stages regardless of whether it is in manual or auto mode.
  • Page 46 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 5) At any time, the “QUICK DATA CHECK” can be activated, but “AUTO ACCEPT MODE” must be cancelled first. Figure 32: Quick data check screen 6) Use the “QUICK DATA CHECK” button to view the readings stored in memory, so far, at any point in the survey.

  • Page 47: Viewing Data

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 If an error is detected, the depth can be changed to retake a reading from another position, by using the UP / DOWN buttons. 9.2. Viewing Data All completed surveys can be accessed from the “VIEW DATA” screen, located within the Borehole selection screen.
  • Page 48 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 Table 2: View Data - Options available to the user View Settings Description Survey Data Table On screen display of the survey data (one survey selected at a time) Upload Selected Survey to FTP Creates an output file (in select output format) and uses FTP details entered into the settings menu to FTP the file for...

  • Page 49: Initial / Base Surveys

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 9.3. Initial / Base Surveys It is common to carry out three sets of Initial Readings to form the Base Data file. Therefore, IncloPRO can use one, two or three sets of data to form the Base Data file, to which subsequent readings are compared.
  • Page 50 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 To select data set(s) for use as the Base Data: 1) tap the “SET BASE SURVEYS” at the top of the Surveys list. 2) Select the suitable files and tap “OK”. This selection is stored on the ASD (Android Smart Device) so that it is not necessary to make this selection each time the data is viewed.

  • Page 51: Upload Selected Survey To Ftp

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 9.4. Upload Selected Survey to FTP Where data is to be sent directly to a remote server, this option creates a file in the selected output format (CSV or RPP) and uses FTP details entered into the settings menu, to send the transmission.

  • Page 52: Data Handling

    If ‘.csv’ format is selected, the exported data file format is ASCII, making it commonly accessible via many software packages, and small in size. Geosense® has worked closely with ‘Deep Excavations Inc’, to enable PC based data handling via their ‘Site Master’ Inclinometer Data Presentation Software package.
  • Page 53 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 Opened in a spreadsheet, each comma should be set to delineate a column so the header information would be presented as follows: Table 3: Manually entered borehole information – these details are commonly entered manually at the setup stages, and automatically populated when the data is exported.
  • Page 54 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 The following highlighted line of the file identifies the sequence of the variable values. Figure 35: Sequence of variable value columns Table 4: Variable value descriptions reading sequence (top of the tube = highest No.) DEPTH_METRES depth of a readings (cable marker...

  • Page 55: Data Reduction

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 The following figure (Figure 36: Format of raw .csv file format from export) shows the formatting of a typical raw .csv file export. ID, DEPTH_METRES, A_POSITIVE_SINX, B_POSITIVE_SINX, A_POSITIVE_MM, B_POSITIVE_MM, etc 19,0.5,0.0083666,0.0019453,4.1833,0.97265,-0.0083284,0.0216397,-4.1642,10.8198, 17.246,17,532 18,1,0.0083852,0.0019631,4.1926,0.98155,-0.0083313,0.021654,-4.16565,10.827,17.253,17.545 17,1.5,0.0074967,0.0019666,3.74835,0.9833,-0.0074857,0.0215836,-3.74285,10.7918,17.251,17.538 16,2,0.0075014,0.0019636,3.7507,0.9818,-0.0074974,0.0215763,-3.7487,10.7881,17.260,17.545 etc, etc, etc...
  • Page 56 These are quite normal and the reason for recording both ‘+’ and ‘-’ values is to remove these differences. Geosense® calculate the Checksums using the following equation: Checksum A = (Reading A+) + (Reading A-)
  • Page 57 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 The position of the tube at a particular depth is represented by the accumulation of the Deviations at that depth. To calculate the total deviation from top to bottom use the following equation: Tot.

  • Page 58: Temperature Considerations

    09/02/2022 10.3. Temperature Considerations Geosense® has carried out significant research into temperature effects on the Probe and its electronics and has found that the thermal effects are very small. However, at the beginning of a survey it is strongly recommended that the temperatures in the probe be allowed to ‘normalise’, (referred to as the stabilising...

  • Page 59: Maintenance

    09/02/2022 11. MAINTENANCE 11.1. Lubrication and Cleaning The Geosense® MEMS Digital Inclinometer is a low maintenance device. With careful use, routine inspections and a small amount of maintenance, it will provide reliable data over a long period. Upon completion of a monitoring exercise it is strongly recommended that the probe and cable be wiped down to remove moisture and detritus.

  • Page 60: Storage

    Remedy Difficulty connecting cable Keyways are not Align keyways aligned Lack of lubrication Damaged/bent pins Return to Geosense for repair Dirt/debris Clean with fresh water and remove all contaminants, then dry Threaded collars cross Do not force threaded parts threaded...
  • Page 61 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 Wheelset does not return to fully extended position Presence of dirt / lack Clean with fresh water and dry, then lubricate with light of lubrication machine oil. If problem persists, replace wheel sets* Wheels do not turn freely Presence of dirt / lack...

  • Page 62: Asd Readout

    Bluetooth power off other Bluetooth devices items such as speakers that are linked to the same ASD Bluetooth fails to Return to Geosense for connect despite using inspection the app The ASD freezes after extended periods of use Bluetooth connection...

  • Page 63: Reel And Cable

    Remedy Reel will not turn on Flat battery Charge battery and check charger is functioning Fault with battery Replace battery – refer to Geosense support Cable becomes kinked/twisted Allowing probe to Replace cable freefall or incorrect deployment/recovery Do not allow probe to freefall...

  • Page 64: Specifications

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 SPECIFICATIONS MODEL Orientation Full Scale Range Vertical ±30° from horizontal PROBE Sensor type Biaxial MEMS Sensor accuracy ±0.004° (±13.5 arc sec, ±0.07 mm/m) ±0.0125% FS Sensor resolution 0.0005° (2 arc sec, 0.01 mm/m) 0.0017% FS Sensor repeatability ±0.002°...
  • Page 65 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 CAT® S42 ANDROID SMART DEVICE (ASD) DISPLAY Super Bright 5” Display – FHD (1920 x 1080) IPS, auto switch support and Display Type: wet finger/glove-on working technology** Display Cover: Corning® Gorilla® Glass 5 CAMERA Main/Rear: 13MP autofocus with PDAF, LED flash...

  • Page 66: Spare Parts

    MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 13. SPARE PARTS Under normal use spare parts are not generally required for Geosense® Inclinometer Systems. However, the following items are available. It is strongly recommended that replacement service components be fitted by Geosense® or their qualified...

  • Page 67: Return Of Goods

    Inspection & Estimate It is the policy of Geosense® that an estimate is provided to the customer prior to any repair being carried out. A set fee for inspecting the equipment and providing an estimate is also chargeable. Inspection or repairs will not be undertaken without formal order coverage.

  • Page 68: Packaging And Carriage

    Sufficient site data has been provided to Geosense® by the purchaser as regards the nature of the installation to allow Geosense® to select the correct type and range of MEMS Digital Inclinometer and other component parts.
  • Page 69 MEMS Digital Portable Horizontal Inclinometer V1.1 09/02/2022 The Purchaser assumes all risks and liability whatsoever in connection with the MEMS Digital Portable Inclinometer equipment from the time of delivery to Purchaser...
  • Page 70 V1.1 09/02/2022 Nova House . Rougham Industrial Estate . Rougham . Bury St Edmunds . Suffolk . IP30 9ND . England . Tel: +44 (0) 1359 270457 / Fax: +44 (0) 1359 272860 / email: info@geosense.co.uk / www.geosense.co.uk Support: support@geosense.co.uk Sales: sales@geosense.co.uk...
