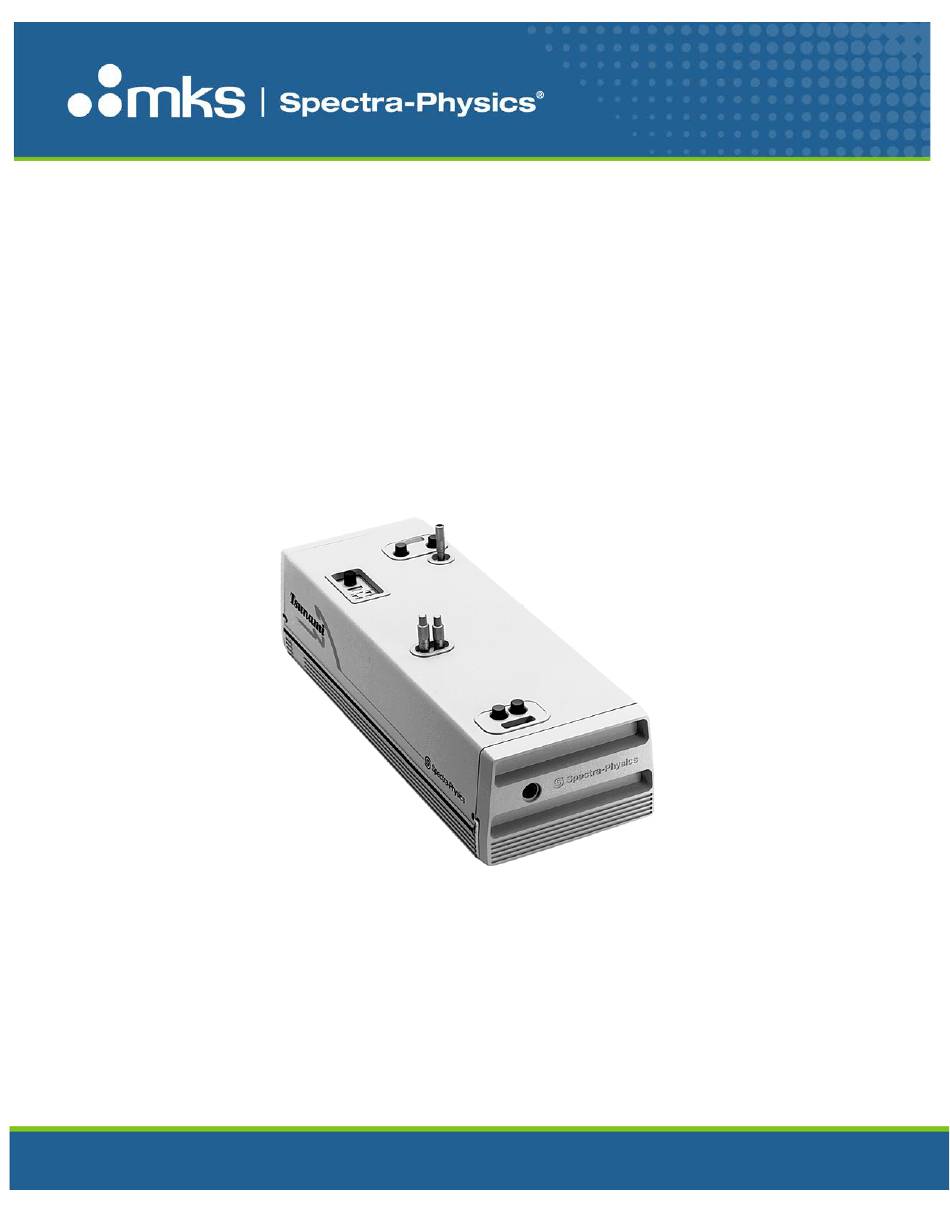

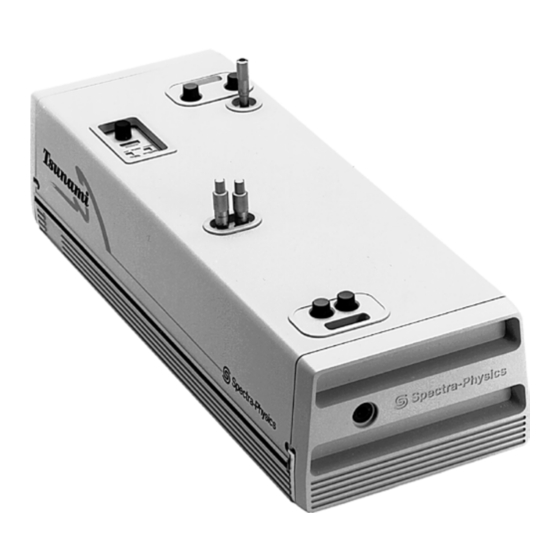

- Page 1 Pre-Installation Guide Tsunami Spectra-Physics, Inc 3635 Peterson Way Santa Clara, CA 95054 April 2020 ©Newport Corporation MKS Spectra-Physics Confidential 1 of 10...
-
Page 2: Table Of Contents
General Procedures ........................ 8 Required Maintenance ..........................9 Laser measurement equipment ..................... 9 Accessory Kit ........................... 9 Preventative Maintenance ..................... 9 Pre-Installation Requirements ......................... 10 Physical Location: ........................ 10 When Your System Arrives: ....................10 ©Newport Corporation MKS Spectra-Physics Confidential 2 of 10... -
Page 3: Introduction
We at Spectra-Physics intend to provide you with responsive support so that you can derive great satisfaction and value in using our systems for your applications. We are available to you at 1- 800-456-2552. ©Newport Corporation MKS Spectra-Physics Confidential 3 of 10... -
Page 4: When The System Arrives
Please note that the laser head required a sturdy breadboard or optical table. Some optics sets in the Tsunami require nitrogen purging. Electronic Grade 5, oil free, dry nitrogen is required. ©Newport Corporation MKS Spectra-Physics Confidential 4 of 10... -
Page 5: When The System Arrives (Continued)
14.37 x 17 x 5.71 36.5 x 43.3 x 14.5 20.7 9.41 3983 11.0 x 8.0 x 6.03 27.94 x 20.32 x 15.32 3.18 Chiller M-25 20.2 x 12.7 x 23.9 51.3 x 32.3 x 60.7 ©Newport Corporation MKS Spectra-Physics Confidential 5 of 10... -
Page 6: General Specifications
OFF. SPECTRA-PHYSICS’ SERVICE ENGINEERS CANNOT PERFORM ELECTRICAL OR PLUMBING WORK AT YOUR SITE. Final Check: Upon the completion of the installation of utilities, verify that the services meet all building safety codes. ©Newport Corporation MKS Spectra-Physics Confidential 6 of 10... -
Page 7: General Specifications (Continued)
80 kPa (12 PSI) or damage to the filters will result. Use the 3.6 m (12ft) PTFE purge line provided to connect the model 3910 to the laser head. Note: Electronic Grade 5, oil free, dry nitrogen is required. ©Newport Corporation MKS Spectra-Physics Confidential 7 of 10... -
Page 8: Maintenance Agreement
The chiller operation of the laser system should be checked once a week. The power output and the mode-locking of the system should also be checked once a week by verifying the output values. If any of the output characteristics have changed, please call Spectra-Physics Technical Support at 1-800-456-2552. ©Newport Corporation MKS Spectra-Physics Confidential 8 of 10... -
Page 9: Required Maintenance
• Verify that the chiller is set to the appropriate temperature, and good coolant level. Reference the Tsunami User’s manual, as well as the Millennia User’s manual to optimize the performance of your system. It is recommended you read the manuals before operating the laser system. ©Newport Corporation MKS Spectra-Physics Confidential 9 of 10... -
Page 10: Pre-Installation Requirements
Save all packing and shipping material until the installation has been completed. Obtain the correct safety glasses and a power meter. Customer Signature Date Phone Number Fax Number E-Mail Sales Order Number ©Newport Corporation MKS Spectra-Physics Confidential 10 of 10...
