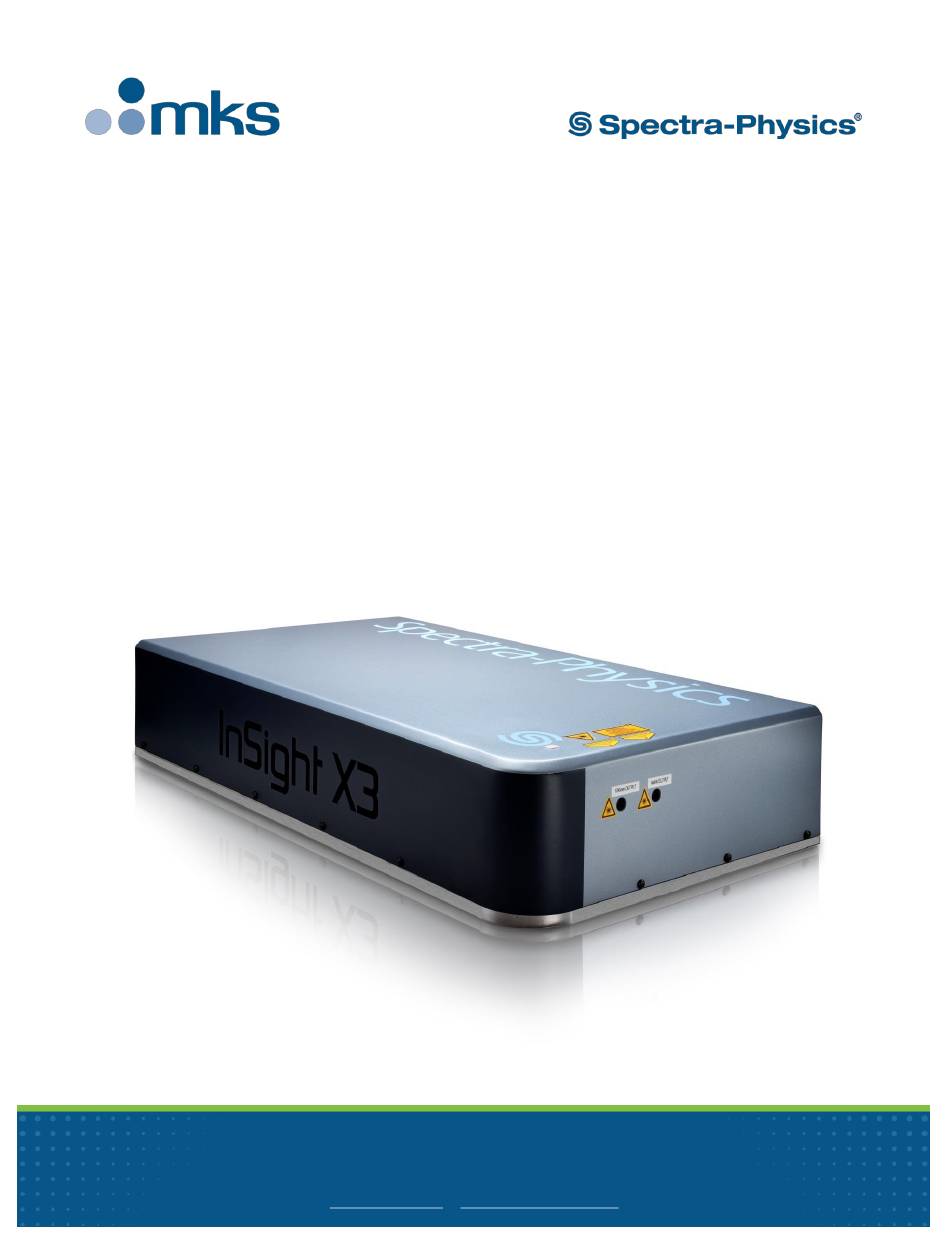

- Page 1 Pre-Installation Guide ® InSight MKS INSTRUMENTS, INC. SPECTRA-PHYSICS LASERS 3635 PETERSON WAY • SANTA CLARA, CA 95054-2809 • USA P: +1.408.980.4300 WWW.MKSINST.COM • WWW.SPECTRA-PHYSICS.COM...
- Page 2 We at Spectra-Physics intend to give you responsive and thorough service. For US Customers, the service team is available at 1-800-456-2552 or service@spectra-physics.com for any questions. For worldwide support please refer to https://www.spectra-physics.com/company/contact/ or the InSight X3 user’s guide table 8-1. Best Regards, Spectra-Physics/MKS Sales, Service, and Product Management teams...
-
Page 3: Installation Location And Environment
1 – Installation Location and Environment The location of the system and environment of your laboratory should follow these guidelines: A. A safe location that meets all applicable building codes. B. Easy access around the laser for service personnel to perform maintenance. C. -
Page 4: Utility Requirements
Temperature, operating 20 ºC to 25 ºC Relative humidity, operating Maximum 75% noncondensing, up to 25 ºC Temperature, storage 20 ºC to 25 ºC Relative humidity, storage < 65% for 15ºC to 35 ºC Cooled water temperature in closed-loop 21ºC typical chiller 1. -
Page 5: Computer Requirements
1.4 Computer Requirements ® Two modes of control are offered for the standard InSight system: © A. InSight graphical user interface (GUI) control software for use on a Windows based computer. For more information on the control software, refer to the user manual. In order to run the GUI control software, the control computer must meet these minimum requirements: Intel or AMD 32 or 64-bit, single or multi-core processor with >... -
Page 6: Pre-Installation Checklist
2 – Pre-Installation Checklist Physical Location: A location with adequate clearance around system to conduct service and accessible by ® Spectra-Physics personnel. A temperature controlled room. Utility services have been installed. Local building and safety codes are in compliance and have been verified. When Your System Arrives: Upon receiving your system, immediately inspect the outside of the shipping containers. -
Page 7: When The System Arrives
3 – When the System Arrives 3.1 Inspection When the system arrives, any sign of damage to the shipping crates should be brought to the attention of the delivering freight company and noted on the invoice before signing the invoice. A claim must be filed with that commercial carrier (usually within 30 days). -
Page 8: Maintenance
4 – Maintenance ® Standard maintenance is necessary for standard operation of the InSight laser system and to maintain both standard and extended warranties. Detailed below are some of the standard maintenance procedures; for a more detailed explanation please refer to the user’s manual. -
Page 9: General Procedures
year. Regularly inspect the input air filter on the power supply for a buildup of dust and debris. If dirty, remove the filter and wash it in clean water. Operating the laser in a clean environment will provide for the longest filter lifetime. 4.4 General Procedures The Chiller, output power, and general performance of the laser system should be checked regularly.
