- Page 1 Pre-Installation Guide For all Spirit & HighQ-2 Laser Models Spectra-Physics, Inc. 3635 Peterson Way Santa Clara, CA 95054 April 2020 ©Newport Corporation MKS Spectra-Physics Confidential 1 of 11...
-
Page 2: Table Of Contents
Utility Requirements ......................7 Computer Requirements ..................8 Pre-Installation Checklist ....................9 Physical Locations: ..................... 9 Maintenance Agreement ....................10 Nalco Mixture ....................10 Filters ..........................10 Chiller Fluid ....................... 11 General Procedures ..................11 ©Newport Corporation MKS Spectra-Physics Confidential 2 of 11... -
Page 3: Introduction
We at Spectra-Physics intend to provide you with responsive support so that you can derive great satisfaction and value in using our systems for your applications. We are available to you at 1-800-456-2552. ©Newport Corporation MKS Spectra-Physics Confidential 3 of 11... -
Page 4: When The System Arrives
A non- standard system will require special consideration. To have other published specifications demonstrated, consult with your Service Engineer to determine whether additional diagnostic equipment will be required. ©Newport Corporation MKS Spectra-Physics Confidential 4 of 11... -
Page 5: Pre-Installation Considerations
Please note that the laser head is very heavy and requires a sturdy and stable optical table. Consider room requirements for future maintenance and upgrades by your Spectra- Physics Field Service Engineer. ©Newport Corporation MKS Spectra-Physics Confidential 5 of 11... -

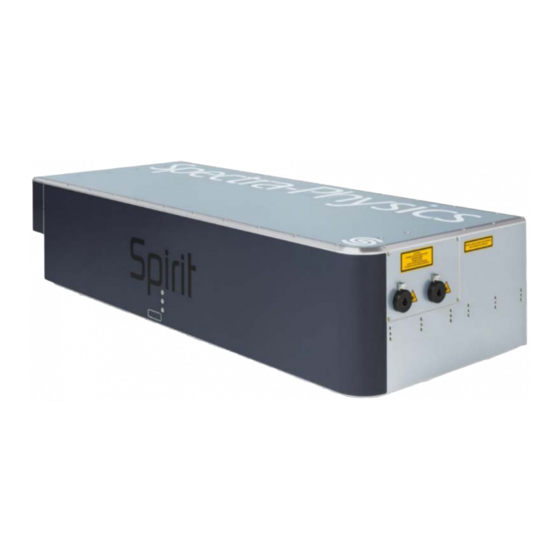

Page 6: Physical Description
Spirit 70 & 100 Laser Head 39.7 x 14.6 x 9.0 1009 x 370 x 229 >154.4 >70.00 Controller / Chiller 31.5 x 21.8 x 43.4 800 x 553 x 1103 220.5 100.0 ©Newport Corporation MKS Spectra-Physics Confidential 6 of 11... -
Page 7: Utility Requirements
Spirit 70 and Spirit 100 Controller 208 – 230 VAC, 50/60 Hz, Single Phase (NEMA-6- 20 socket) Current: <16A Chiller 208 – 230 VAC, 50/60 Hz, Single Phase (NEMA-6- 20 socket) Current: <16A ©Newport Corporation MKS Spectra-Physics Confidential 7 of 11... -
Page 8: Computer Requirements
To access the GUI, please refer to the system manual of your Spirit laser system. In order to maintain CDRH safety requirements, run only the GUI software on the control computer during laser operation, i.e., do not run other software at the same time. ©Newport Corporation MKS Spectra-Physics Confidential 8 of 11... -
Page 9: Pre-Installation Checklist
Save all packing and shipping material until the installation has been completed. ❑ Obtain the correct safety glasses and a power meter. Customer Signature Date Phone Number Fax Number E-Mail Sales Order Number ©Newport Corporation MKS Spectra-Physics Confidential 9 of 11... -
Page 10: Maintenance Agreement
Chiller temperature to make sure cooling is within specifications. If the laser is not going to be used for an extended period of time, turn off the laser and drain the cooling solution. ©Newport Corporation MKS Spectra-Physics Confidential 10 of 11... -
Page 11: Chiller Fluid
If any of the output characteristics have changed, please call Spectra-Physics Technical Support at 1-800-456-2552. ©Newport Corporation MKS Spectra-Physics Confidential 11 of 11...
