UG237: EFM8BB2-SLSTK2021A User's Guide
Connectors
6. Connectors
6.1 Breakout Pads
Many of the EFM8's pins are routed out to "breakout pads" at the top and bottom edges of the kit. A 2.54 mm pitch pin header can be
soldered in for easy access to these pins. Most I/O pins are available, with the exception of pins used to drive the LCD.
Note: Some of the breakout pads are shared by on-board EFM peripherals. The schematic must be consulted to make sure that it is
acceptable to use a shared pin in your application.

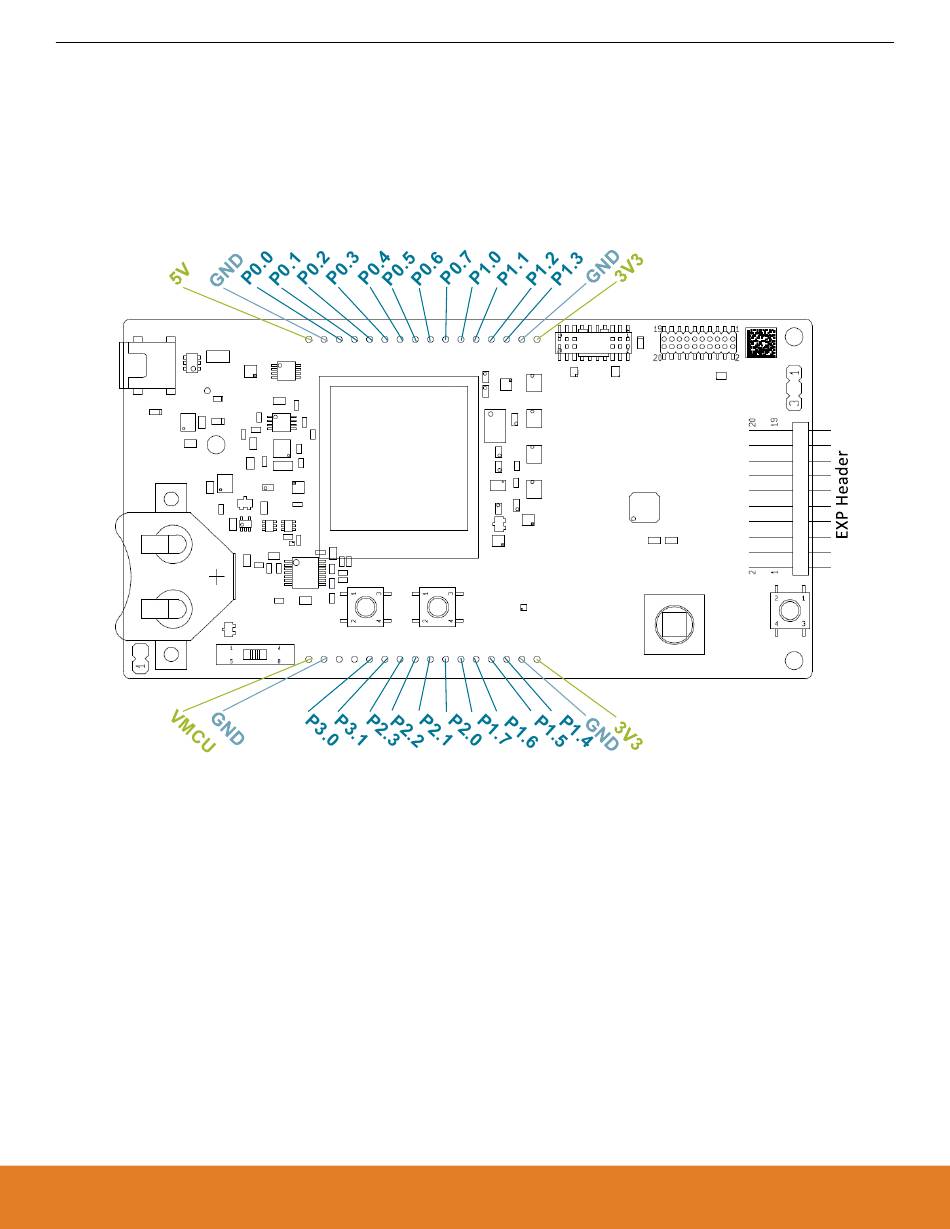

Figure 6.1. Breakout Pads and Expansion Header
silabs.com | Building a more connected world.
Rev. 0.4 | 10
