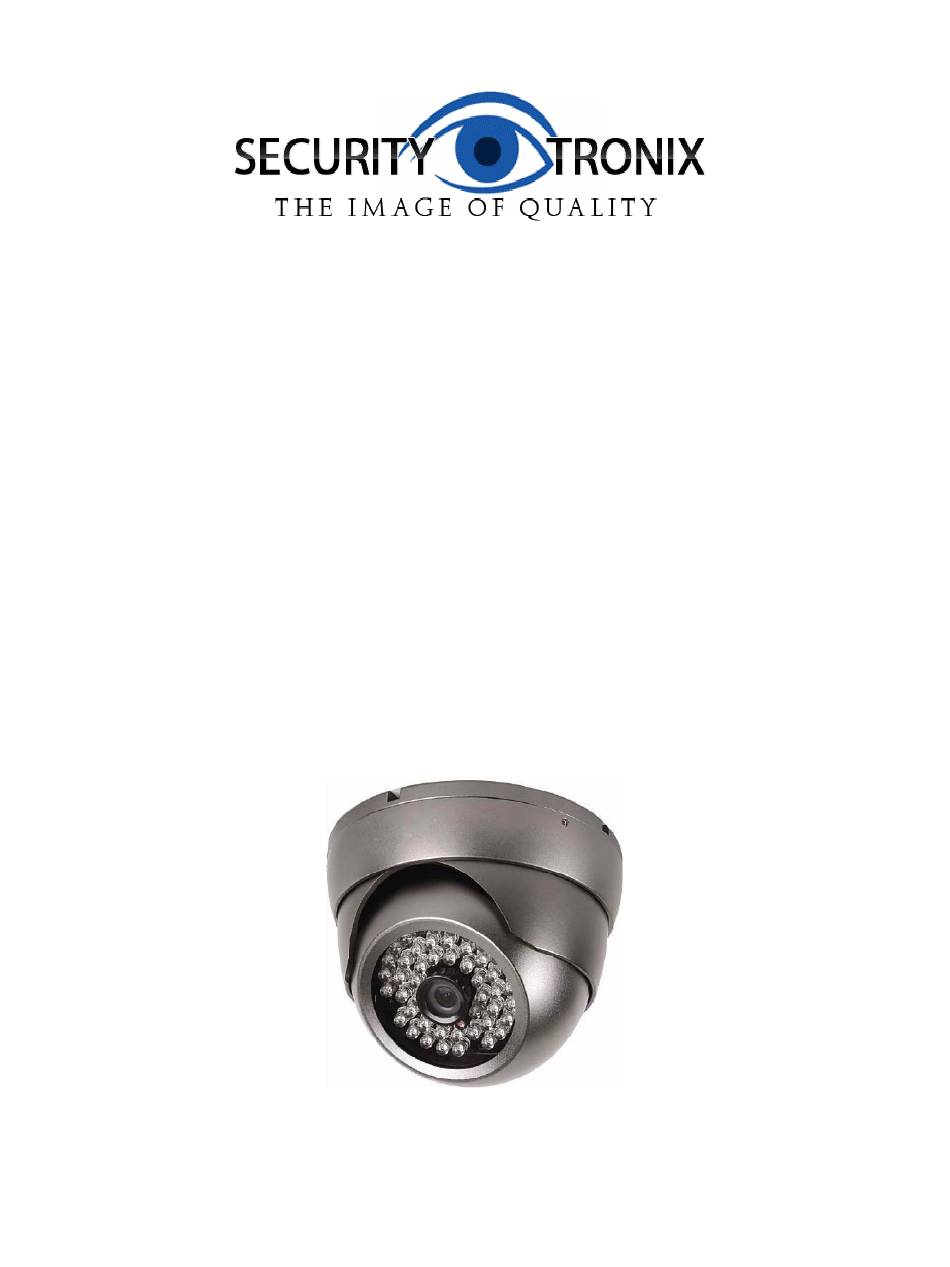

- Page 1 INSTALLATION MANUAL ST-DWD600IRVP2812-B Vandalproof Infrared Color Camera v2.0 3/10/11...
-
Page 2: Package Contents

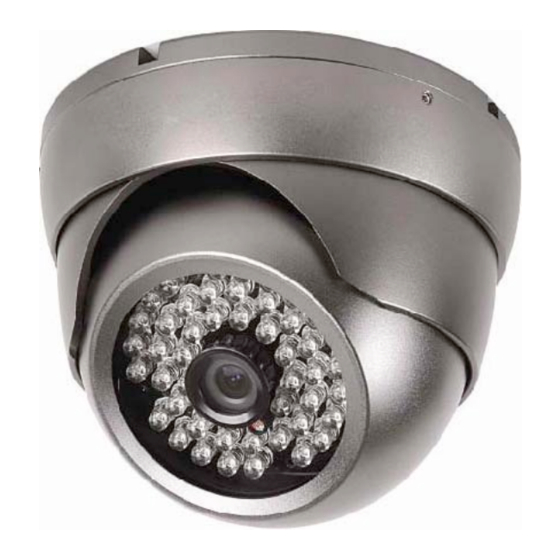

90 feet and a 2.8mm – 12mm manual zoom lens. The ball style dome camera provides the installer with the ability to easily adjust the camera’s viewing area. The ST-DWD600IRVP2812-B is a cost effective surveillance solution for any budget. -
Page 3: Unpacking And Handling
INSTALLATION AND OPERATION 1. UNPACKING and HANDLING Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material 2. MECHANICAL INSPECTION Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. -
Page 4: Osd Settings
5. OSD SETTINGS Accessing the camera’s OSD menu and making menu selections is accomplished using the attached “cursor pad”: UP, DOWN, LEFT, RIGHT and PUSH center for entering the selection. v2.0 3/10/11... - Page 5 v2.0 3/10/11...
-
Page 6: Troubleshooting
6. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
