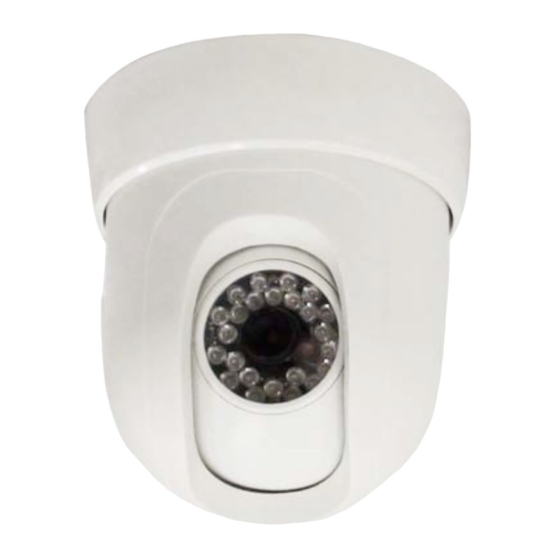

Vandalproof infrared intelligent dome ptz color camera

Advertisement

INSTALLATION MANUAL
ST-WD600PTZMINI-IR
Vandalproof Infrared Intelligent Dome PTZ
Color Camera
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-WD600PTZMINI-IR and is the answer not in the manual?

Questions and answers

Summary of Contents for Security Tronix ST-WD600PTZMINI-IR

  • Page 1 INSTALLATION MANUAL ST-WD600PTZMINI-IR Vandalproof Infrared Intelligent Dome PTZ Color Camera...
  • Page 2: Package Contents

    This package contains: One ST-WD600PTZMINI-IR vandalproof infrared intelligent dome color camera One installation manual Note: The ST-WD600PTZMINI-IR requires a minimum 12VDC 700mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-WD600PTZMINI-IR is a professional grade infrared indoor dome color camera with pan, tilt and zoom (PTZ) capability of 600TVL of resolution.
  • Page 3: Unpacking And Handling

    INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
  • Page 4: Wiring Connections

    4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75Ω coaxial video cable. c. Connect unshielded twisted pair (UTP) control cable between the camera’s RS485 port and the PTZ controller.
  • Page 6: Troubleshooting

    5. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
