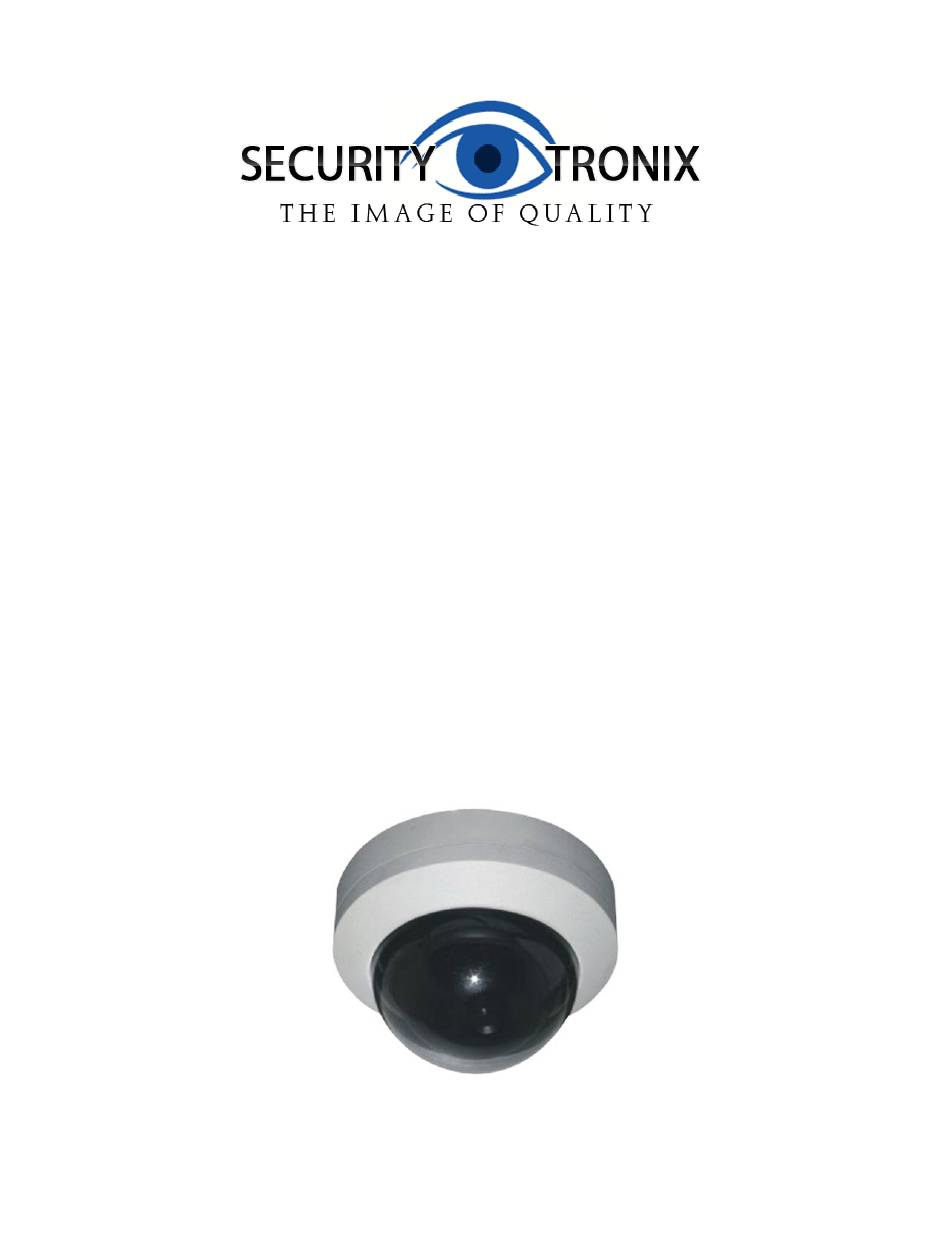

- Page 1 INSTALLATION MANUAL ST-DLI600VP3.6-B-W Vandal proof Dome Color Camera v1.0 12/20/11...

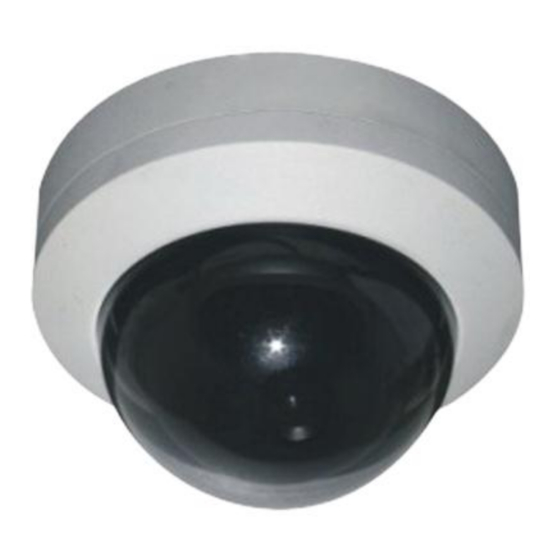

- Page 2 PACKAGE CONTENTS This package contains: One ST-DLI600VP3.6 vandalproof color camera One installation manual Note: The ST-DLI600VP3.6 requires a minimum12VDC 150mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A. PRODUCT DESCRIPTION The ST-DLI600VP3.6 is a vandalproof dome color camera designed around a 1/3” Color SONY Super HAD CCD with 600TVL of resolution.
- Page 3 INSTALLATION AND OPERATION This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.
- Page 4 4. WIRING CONNECTIONS a. Connect the power supply’s DC plug to the camera’s power outlet. b. Connect the camera to the monitor with a 75 coaxial video cable. c. Connect power supply’s AC plug to a suitable AC power outlet. d.
- Page 5 v1.0 12/20/11...
- Page 6 6. TROUBLESHOOTING a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current. b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required;...
