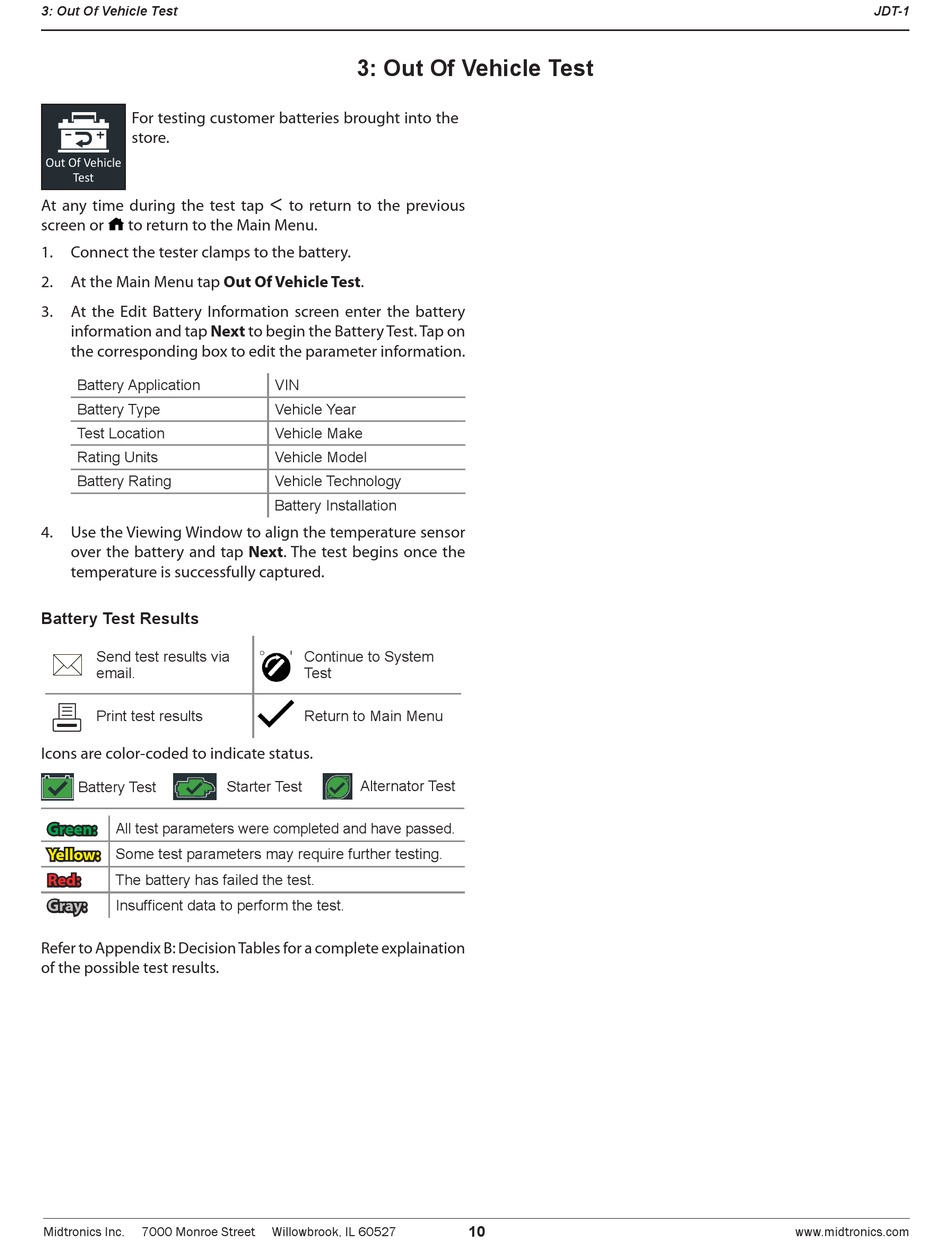

3: Out Of Vehicle Test

For testing customer batteries brought into the
store.
Out Of Vehicle
Test
At any time during the test tap
screen or to return to the Main Menu.
1. Connect the tester clamps to the battery.
At the Main Menu tap Out Of Vehicle Test.
2.
3. At the Edit Battery Information screen enter the battery
information and tap Next to begin the Battery Test. Tap on
the corresponding box to edit the parameter information.
Battery Application
Battery Type
Test Location
Rating Units
Battery Rating
4. Use the Viewing Window to align the temperature sensor
over the battery and tap Next. The test begins once the
temperature is successfully captured.

Battery Test Results

Send test results via

email.
6
Print test results
Icons are color-coded to indicate status.
Battery Test
Green:
All test parameters were completed and have passed.
Yellow:
Some test parameters may require further testing.
Red: The battery has failed the test.
Gray:
Insufficent data to perform the test.
Refer to Appendix B: Decision Tables for a complete explaination
of the possible test results.
