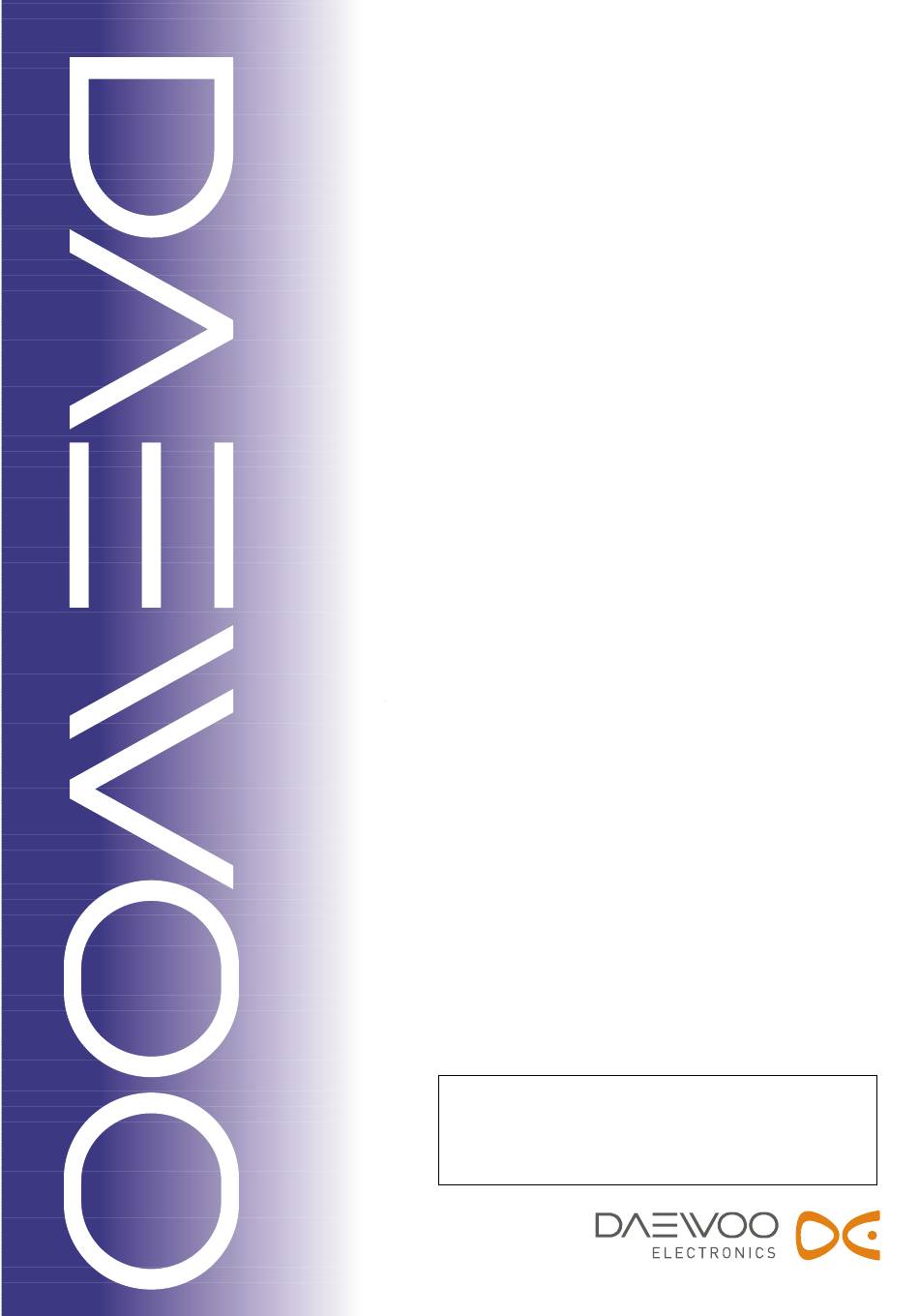

Service Manual
LCD TV 19"
Model :
DSL-19M1WC
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.
S/M NO : SL19M1W001
MAR.2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL-19M1WC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DSL-19M1WC

Summary of Contents for Daewoo DSL-19M1WC

  • Page 1 S/M NO : SL19M1W001 Service Manual LCD TV 19" Model : DSL-19M1WC Caution : In this Manual, some parts can be changed for improving. their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List)in Service Information Center.

  • Page 2: Table Of Contents

    DSL-19M1WC SERVICE MANUAL CONTENT Brief Introduction Of The DSL-19M1WC PART 1： ★Schematic Diagram ★Printed Circuit Exploded view PART 2： Key Ics And Assemblies PART 3： Detailed Circuit PART 4： ★Main Board ★DVD Board ★HI-voltage Board Parts List PART 5：...

  • Page 3: Part 1 Brief Introduction Of The Dsl-19M1Wc

    Part 1 Brief Introduction Of The DSL-19M1WC Schematic Diagram 12V IN POWER SUPPLY Panel AV OUT Composite 19” TFT LCD 12V 5V LVDS 3.3V 1.8V PC IN FLI8125 AT49BV040B Hsync Vsync 74LVC125 Decoder FLASH & AV IN Scaler Composite SVIDEO IN...

  • Page 4: Printed Circuit

    Printed Circuit Main board 3768C(Top layer view)
  • Page 5 Main board 3768C (Bottom layer view)
  • Page 6 DVD board 3769C(Top layer view)
  • Page 7 DVD board 3769C (Bottom layer view)
  • Page 8 HI-voltage Board 3678C(Top layer view) HI-voltage Board 3678C(Bottom layer view) SD card board3773C(Top layer view)
  • Page 9 SD card board3773C(Bottom layer view) Earphone board3772C(Top layer view) Earphone board3772C(Bottom layer view)
  • Page 10 Remote control head board3921C(Top layer view) Remote control head board3921C(Bottom layer view)

  • Page 11: Part2 Exploded View

    Part2 Exploded view...

  • Page 12: Part 3 Key Ics And Assemblies

    Part 3 Key ICs And Assemblies On Main Board On DVD board Serial Serial Position Type Position Type FSAV330 BA033T L7808C-V LM1117 AT49BV040B MT1389HD FLI8125 BA5954 FDS9435A BA6208F AP1510 HY57V641620HGT AT24C32A MX29LV160BT AP1513S AT24C16 CD4052 NJM4558 MSP3415G WM8714 TDA1517P 3U5 3U6 3U7 PESD5VOL4U 3U11 3U12 LM1117...
  • Page 13 ICS ON MAIN BOARD 1. FSAV330 Low On Resistance Quad SPDT Wide Bandwidth Video Switch...
  • Page 14 2. FLI8125 The FLI8125 is a cost-effective, highly-integrated, mixed signal solution for TV and Digital Video applications. It incorporates a multi-standard video decoder, high-speed triple 8-bit Analog-to-Digital Converter(ADC),and front end switching. An integrated VBI Slicer adds Closed Captioning(CC) and Teletext service support, and the built-in microprocessor enables full system control without external devices.
  • Page 15 ·PInput ·Pin List I/O Legend: A = Analog, I = Input, O = Output, P = Power, G= Ground Table 1: Analog Input Port Pin Name Description VDD18_A Analog Power (1.8V) for A & B Channels. Must be bypassed with 0.1uF capacitor to the analog system ground plane.
  • Page 16 GNDS Analog Ground. Must be directly connected to the analog system ground plane on board. Positive analog input ‘A’ for channel 1. The input has to be AC coupled using a series 20 Ohm resistor and 0.1uF Capacitor network. GNDS Analog Ground.
  • Page 17 Negative analog sync input for channels 1 through 4. This acts as the return Path for the Sources connected to SV Channel Inputs. This has to be AC coupled using a series 20 Ohm resistor and 0.1uF Capacitor network to Analog Ground Plane on board. VO_GND Analog Ground.
  • Page 18 Pin Name Description VID_DATA_IN_8 Input Pr / Pb Data in case of 16 Bit Video Input (CCIR601) of Video Input – 1 VID_DATA_IN_9 OR Input Green Data in case of 24 Bit Video Input VID_DATA_IN_10 VID_DATA_IN_11 VID_DATA_IN_12 VID_DATA_IN_13 VID_DATA_IN_14 VID_DATA_IN_15 VID_DATA_IN_16 Input Blue Data in case of 24 Bit Video Input VID_DATA_IN_17...
  • Page 19 Pin Name Description GPIO14/PWM3/ This Pin can be programmed to give out Pulse Width Modulated Output Pulses for external use. SCART16 Or it can be programmed to sense the Fast Blank Input signal from a SCART I/P source. When not used, this pin is available as General Purpose Input/output Port. This Pin provides the Output Data in case of Boundary Scan Mode.
  • Page 20 Table 7: TTL Display Interface Pin Name Description For 8-bit panels For 6-bit panels PBIAS Panel Bias Control (backlight enable) [Tri-state output, 5V- tolerant] PPWR Panel Power Control [Tri-state output, 5V- tolerant] AVDD_LV_33 Digital Power for TTL Block. Connect to digital 3.3V supply. VCO_LV Reserved.
  • Page 21 Table 8: Parallel/Serial ROM Interface Pin Name Description 256K x8 PROM Address. These pins also have bootstrap functionality. For serial SPI ROM interface: - ROM_ADDR17 will be Serial Clock (ROM_SCLK) - ROM_ADDR16 will be Serial Data Output (ROM_SDO) For 512K X 8 PROM, Address Signal A18 is available thru Pin # 44 which is GPIO10. External PROM data input.
  • Page 22 = 0.075 Ω @ V = - 4.5 V. DS(ON) High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. 2-Wire Serial EEPROM 32K (4096 x 8) 4. AT24C32A...
  • Page 24 (SOT-223) 5. LM1117...
  • Page 25 6. 74LVX125 Low Voltage Quad Buffer with 3-STATE Outputs.
  • Page 26 7. AT49BV040B...
  • Page 29 8. CD4052B The CD4052B is a differential 4-Channel multiplexer having two binary control inputs, A and B, and an inhibit input. The two binary signals select 1 of 4 pairs of channels to be turned on and connect the analog inputs to the outputs.
  • Page 30 PInputs ICS ON DVD BOARD Low saturation voltage type 3-pin regulator 1. BA033T...
  • Page 31 2. LM1117 (See Page 22) 3. MT1389HD Abbr. : SR : Slew Rate PU : Pull Up PD : Pull Down...
  • Page 32 SMT : Schmitt Trigger 2MA~16MA : Output buffer driving strength. Main Alt. Type Description RF Interface ( 26 ) RFGND18 Ground Analog ground RFVDD18 Power Analog power 1.8V Analog output RF Offset cancellation capacitor connecting Analog output RF Offset cancellation capacitor connecting RFGC Analog output RF AGC loop capacitor connecting for DVD-ROM...
  • Page 33 Reference Voltage ( 3 ) V2REFO Analog output Reference voltage 2.8V Analog output Reference voltage 2.0V VREFO Analog output Reference voltage 1.4V Analog Monitor Output ( 7 ) SVDD3 Power Analog power 3.3V Central servo Positive main beam summing output RFOP Analog output RFRP low pass, or Negative main beam summing...
  • Page 34 RF Data PLL Interface ( 9 ) Main Alt. Type Description JITFO Analog output The output terminal of RF jitter meter. JITFN Analog Input The input terminal of RF jitter meter. PLLVSS Ground Ground pin for data PLL and related analog circuitry. IDACEXLP Analog output Data PLL DAC Low-pass filter...
  • Page 35 Input HIGHA1 2~16MA, SR Microcontroller address 9 Input HIGHA2 2~16MA, SR Microcontroller address 10 Input HIGHA3 2~16MA, SR Microcontroller address 11 Input HIGHA4 2~16MA, SR Microcontroller address 12 Input HIGHA5 2~16MA, SR Microcontroller address 13 Input HIGHA6 2~16MA, SR Microcontroller address 14 Input HIGHA7 2~16MA, SR...
  • Page 36 Input IOA2 2~16MA, SR Microcontroller address 2 / IO Input IOA3 2~16MA, SR Microcontroller address 3 / IO Input IOA4 2~16MA, SR Microcontroller address 4 / IO Input IOA5 2~16MA, SR Microcontroller address 5 / IO Input IOA6 2~16MA, SR Microcontroller address 6 / IO Input IOA7...
  • Page 37 IOWR# Input 2~16MA, SR Flash write enable, active low / IO IOCS# Input 2~16MA, SR Flash chip select, active low / IO PU, SMT UWR# Input 2~16MA, SR Microcontroller write strobe, active low PU, SMT URD# Input 2~16MA, SR Microcontroller read strobe, active low PU, SMT UP1_2 Input...
  • Page 38 Audio interface ( 28 ) Main Alt. Type Description Audio DAC master clock of SPDIF input While SPDIF input is not used: Input I) Serial interface port 0 clock pin SPMCLK SCLK0 Non-pull II) GPIO Audio data of SPDIF input While SPDIF input is not used: I) Serial interface port 0 data-in Input...
  • Page 39 Audio serial data 2 (Center/LFE) DSD data left surround channel Trap value in power-on reset : I) 1 : manufactory test mode II) 0 : normal operation While using external channels: I) GPO_0 Input 4MA PD ASDATA2 Audio serial data 3 (Center-back/ Center-left-back/Center-right-back, in 6.1 or 7.1 mode) DSD data right surround channel Input...
  • Page 40 While internal AUDIO DAC not used:GPIO ADACVDD1 Power 3.3V power pin for AUDIO DAC circuitry ADACVDD2 Power 3.3V power pin for AUDIO DAC circuitry Video Interface ( 18 ) DACVDDC Power 3.3V power pin for VIDEO DAC circuitry VREF Analog Bandgap reference voltage Analog Full scale adjustment...
  • Page 41 XTALI Input 27M crystal in Input GPIO_3 GPIO Pull-Down Input GPIO_4 GPIO Pull-Down Input RCLKB GPIO_5 GPIO Pull-Up Input RVREF GPIO_6 GPIO Pull-Up Dram Interface ( 58 ) ( Sorted by position ) IO_0 Input Digital Video output C bit 0 (RD16) Non-pull GPIO...
  • Page 42 Input DRAM address 8 Input DRAM address 9 Input RA11 DRAM address bit 11 Pull-Down output DRAM clock enable RCLK Input Dram clock Input DRAM address 3 Input DRAM address 2 Input DRAM address 1 Input DRAM address 0 Input RA10 DRAM address 10 Input...
  • Page 43 Serial interface port 3 chip-select V_ADIN7 Input Non-pull Version AD input port 7 Note: 1. The Main column is the main function, Alt. Means alternative function. 2. The multi-function GPIO pins are set to green characters. 3. The video input port and external TV encoder mode can not both use CCIR-601 mode, at least one of them should be in CCIR-656 mode.
  • Page 45 5. BA6208F The BA6208F is monolithic ICs used for driving reversible motors. It allows control of reversible motors in cassette players and other electrical equipment by using TTL-level logic signals. The IC contains a logic section, which controls forward and reverse rotations as well as forced stop, and an output power section, which can supply an output current of up to 100mA (typical) according to the logic control.
  • Page 46 7. MX29LV160BT 16M-BIT[2Mx8/1Mx16]CMOS SINGLE VOLTAGE 3V ONLY FLASHMEMORY...
  • Page 48 8. AT24C16 2-Wire Serial CMOS E PROM 16k (2048 x 8 ) The AT24C16 provides 16384 bits of serial electrically erasable and programmable read only memory (EEPROM)
  • Page 49 organized as 2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C16 is available in space saving 8-pin PDIP, 8-pin and 14-pin SOIC packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.
  • Page 50 DUAL OPERATIONAL AMPLIFIER 9. NJM4558...
  • Page 51 24-bit, 96kHz Stereo DAC 10. WM8714 The WM8714 is a high performance stereo DAC designed for audio applications such as DVD, home theatre systems, and digital TV. The WM8714 supports data input word lengths from 16 to 24-bits and sampling rates up to 96kHz.
  • Page 52 The WM8714 supports I S, and right Justified audio data interfaces. The WM8714 is an ideal device to interface to AC-3 , DTS , and MPEG audio decoders for surround sound applications, or for use in DVD players. ·FEATURES ·APPLICATIONS ·Stereo DAC ·DVD Players ·Audio Performance...
  • Page 53 ·Low Power CMOS Process ·Totem Pole Output ·16 Pin Package ·Applications ·DC/DC Converters ·LCD TV ·LCD Monitor ·Notebook Computer ·Tablet PC ·Personal Digital Assistants ·Navigation Phone/ Door Phone ·Portable consumer product ·Recommended Operating Condition: Supply Voltage 4.5～8V Operating Ambient Temperature 0～70 °C Operating Frequency 50K～400K Hz...
  • Page 54 ±15% ohm pull-low resistor. The ground pin of the device. NOUT2 The number 2 output driver for driving the NMOSFET switch. NOUT1 The number 1 output driver for driving the NMOSFET switch. The power supplies pin of the device. PWMOUT The output pin of low frequency PWM generator.

  • Page 56: Part 4 Detailed Circuit

    Part 4 Detailed Circuit MAIN BOARD 1. Power VCC12 VCC5 100k SS34 47uH/3A VCC12 OUT1 OCSET OUT2 VSS1 1EC1 3.3k VSS2 220u 1EC2 2.2k 2.2k 470u 100n VCC5 AP1510 VCC5-STB VCC-DVD 1C15 POWER-OFF POWER-OFF 1EC13 1C17 100n 100n 100n 1.2k 100u 100n PNL-VCC...
  • Page 57 2. Hudson_Europe TO KEY BOARD +3.3V_ADC VCC5-STB 2CN1 VCC5 2R61 2R62 2R63 2R60 IN-IR 2FB15 FB0603 G_LED 4.7K 4.7K 4.7K 2L5 10u R_LED 2CN2 2L6 10u G_LED 2R68 NC CON5_1.25MM_DIP 2L7 10u 2L1 10u KEY_ADC_IN1 2C74 绿灯改由电源直接控制,保留GPIO 2L2 10u KEY_ADC_IN2 CON6_1.25MM_DIP 100n 2L3 10u...
  • Page 58 3. Interface CON\SCART21 SCART 3CN81A SCART/FBI R0805 2.7uH SHIELD SCA/CVBS 3C17 100n SCA-CVBS SCA/R 3C39 100n Pb-IN V/YIN SCACVBS-OUT R0805 2.7uH SCA/G SCACVBS-OUT VOUT SCART/FBI R0805 2.7uH SCART-FBI SCA/B FB/0805 BLKGND SCART-FBI 3C11 100n SCA-R SCA/CVBS 3C40 100n Pr-IN VGND SCA/R 3R10 3R11...
  • Page 59 4. Audio 8EC1 10uF/16V AU-R-IN1 TV-MONO 8EC2 10uF/16V TUNER1 330n AU-L-IN1 TCL MPE05-2 8L2 FB VCC+8V VCC5_TUNER R0805 8EC5 10uF/16V AU-R-IN2 8EC6 VCC-T SCL-M 8EC7 10uF/16V SDA-M 8EC3 8EC4 47uF AU-L-IN2 1.5n 470p 100u 100u 100n 100n 8EC10 8EC11 8EC12 8L5 FB 10uF/16V 3R102...
  • Page 60 5. HDMI HDMI0_VCC 5R21 HDMI0_VCC 5R22 nc / 10k 5R37 5R23 4K7 +3.3V_DVDD +3.3V_AVDD +1.8V_AVDD +1.8V_DVDD +3.3V_AVDD 12,13; 15,16; 18,19; 54,55电源对要就近放电容 5EC1 5C10 5C11 10uF 100n 100n 100n 100n +3.3V_DVDD 5R31 5R32 5R33 VD_CLK HDMI_HS HSYNC HDMI_VS VSYNC +3.3V_DVDD HDMI_R RED_Pr SDA-M HDMI_G...

  • Page 61: Dvd Board

    DVD BOARD 1. Index SLOTIN1389HD_TOHEI_HD62_V1 MT1389HD(LQFP256) DVD MP Board for SANYO HD62 PUH (Small Size) MDxxx History Date INDEX & POWER, RESET The original released. (modified from 3-SY1389P3-V1) 2005/10/08 MT1389HD Supports 1389HD & Memory Card Interface SDRAM & FLASH VIDEO OUT & AV-CON AUDIO OUT - WM8766 NAME TYPE...
  • Page 62 2. MT1389HD TQFP 256 JITFO 390pF JITFN DV33 RFV33 RFV33 RFVDD3 750k ADACVDD 3.3uH 2200pF APLLVDD3 3.3uH ASPDIF OPTICAL 0.1uF/NC CE13 DACVDD3 CDV100uF/25v 680k ADIN 0.1uF 0.01uF 2200pF CB10 CE12 CDV10uF/25v CDV10uF/25v DC100bc MS_SDIO CB11 0.1uF MS_SDIO CDV10uF/25v 0.1uF CE14 CDV100uF/25V 150k 150k...
  • Page 63 3. SDRAM & FLASH MA[0..11] MA[0..11] BA[0..1] BA[0..1] DQM[0..1] DQM[0..1] DCLK DCLK DCKE DCKE CAS# CAS# RAS# RAS# DRAM MA10 DQ10 A10/AP DQ10 PCE# PCE# MA11 DQ11 DQ11 PRD# PRD# DBA0 DQ12 BA0/A13 DQ12 PWR# PWR# DBA1 DQ13 BA1/A12 DQ13 [2,4] A[0..21] A[0..21]...
  • Page 64 4. VIDEO OUT & AV-CONNECTOR UP1_2 UP1_2 AVCC AVCC AVCC +5VV +5VV YUV[4..6] Y UV[4..6] ASPDIF ASPDIF 0.1uF CDV10uF/25V +5VV USBM USBM +5VV USBP USBP 75,1%/NC 1N4148 CVBS_OUT L19 0.56uH L20 0.56uH Y UV4 3906/NC 1N4148 75,1% 120P CVBS CVBS CON7 3906 +5VV...
  • Page 65 5. AUDIO OUT WM8714 ACLK ACLK ABCK ABCK ALRCK ALRCK AVCC AVCC DVD-L DVD-L 89_ALS DVD-R DVD-R 89_ALS AVCC ABCK SBCLK1 AVDD ALRCK SLRCK1 ACLK SACLK1 CE29 CB60 CB58 CB59 89_ALS DAC_ASDAT0 CDV47uF/25V 0.1uF 0.1uF 0.1uF +12V R100 CE30 OPEN DAC_ML CB61 CB62...

  • Page 66: Hi-Voltage Board

    Hi-voltage board Test Pannel: AU M170EG01 VIN 10.8~13.2V Lamp voltage 600Vrms Lamp output current 6.5mA Start-up time 1.2s Start-up voltage 1700Vrms Operation frequency 50KHZ...
  • Page 67 Part 5 Part list of DSL-19M1WC Bom No Part No Part Name 02.23.LTD06V3769C0 LTD06V-3769C01 DVD board Part No Name Specification LOCA NO R16 R17 R19 R22 R56 R57 R58 01.57.R.2.E000J SMD resistor 0603-0Ω ±5% R64 R82 R85 R90 R97 R78 R79 R77 R122 01.57.R.2.E1R0J...
  • Page 68 NPO±5%/50V 0603-100P 01.54.CS.2.E101N SMD capacitor 3 C1 C69 C70 NPO±5%/50V 0603-120P 01.54.CS.2.E121N SMD capacitor 3 C54 C56 C60 NPO±5%/50V 0603-150P 01.54.CS.2.E151N SMD capacitor 2 C43 C42 NPO±5%/50V 0603-220P 01.54.CS.2.E221N SMD capacitor 2 C64 C61 NPO±5%/50V 0603-330P 01.54.CS.2.E331X SMD capacitor 2 C39 C38 X7R±10%/50V 0603-390P 01.54.CS.2.E391N...
  • Page 69 CDV-10UF/16V CE9 C10 C18 C51 C11 CE12 CE23 01.34.CL.D.E10U16VA Electrolyse capacitor CE33 CDV-10UF/25V 01.34.CL.D.E10U25VA Electrolyse capacitor 4 CE30 CE31 CE34 CE35 CDV-47UF/10V 01.34.CL.D.E47U10VA Electrolyse capacitor 5 CE16 CE17 CE18 CE21 CE20 CDV-47UF/16V 01.34.CL.D.EV47U16VA Electrolyse capacitor 1 CE11 CDV-47UF/25V 01.34.CL.D.E47U25VA Electrolyse capacitor 5 CE22 CE10 CE29 CE2 CE8 CDV-100UF/10V 01.34.CL.D.E100U10VA...
  • Page 70 01.40.CON.S05.E007 SMD jack FPC-0.5-24P 1 HA1 01.40.CON.S10.FPC1.E015 SMD jack FPC-1.0-12P 1 HA2 01.40.CON.DPH.E020 Jack PH-4A 1 J4 01.40.CON.DPH.E035 Jack PH-8A 1 J2 01.40.CON.DPH.E005 Jack PH-11A 1 J1 1.25-5A( Horizo 01.40.CON.S13.AY1.005 Jack 1 J5 ntal)DIP 1.25-13A( Horiz 01.40.CON.S13.AY1.007 Jack 1 J6 ontal)DIP 1.25-4A( Horizo 01.40.CON.S13.AY1.006...
  • Page 71 1R3 9R7 9R9 1R11 1R14 2R30 2R47 2R48 2R52 3R28 3R29 3R87 8R14 8R15 8R16 8R17 8R18 8R19 8R20 8R21 8R23 8R24 8R25 8R26 01.57.R.2.E103J SMD resistor 0603-10KΩ±5% 8R27 8R28 8R29 8R30 8R33 8R35 8R40 8R41 8R42 8R43 8R44 8R45 8R46 8R47 8R48 8R49 8R50 8R51 8R54 8R55 8R56 8R57 9R5 2R65 01.57.R.2.E273J...
  • Page 72 2C14 2C15 2C16 2C17 2C18 2C19 3C39 3C40 3C41 0603-330P 3C1 3C2 3C3 3C4 3C5 3C6 3C7 01.54.CS.2.E331X SMD capacitor X7R±10%/50V 3C8 3C9 3C10 3C61 0603-470P 01.54.CS.2.E471X SMD capacitor 3 (8C5) (8C13) (8C21) X7R±10%/50V 0603-680P 01.54.CS.2.E681X SMD capacitor 4 3C57 3C58 (3C59) (3C60) X7R±10%/50V 0603-102 01.54.CS.2.E102X...
  • Page 73 3FB3 3FB4 3FB5 3FB6 3FB7 3FB8 01.13.L.Z.ESA100 SMD magnetism bead 0603-100Ω 3FB9 2FB13 1FB1 3FB1 3FB2 8L2 8L4 01.13.L.Z.ESB50P SMD magnetism bead 0805-50Ω PB 8L5 8L6 8L7 3FB10 1L3 1L7 1L8 1L9 3L6 3L7 3L8 01.13.L.L.S.E002 SMD inductor 0603-10UH 7 2L1 2L2 2L3 2L4 2L5 2L6 2L7 01.13.L.L.S.E006 SMD inductor 0805-1.8UH...
  • Page 74 EV-015FC/15 01.40.CON.DCZ.E007 VGA jack 1 3CN10 pin DIP 01.40.CON.DCZ.E001 Jack DASW-8 DIP 1 3CN80 01.40.CON.DCZ.E323 Same core jack AV6-13/PB-27 1 3CN81 AV4-8.4-13/PB- 01.40.CON.DCZ.E170 Same core jack 1 3CN83 CKX-3.5-02(with 01.40.CON.DCZ.E102 Perch earphone jack 1 3CN11 out switch) DIP 01.40.CON.DCZ.E018 Power jack DDK2.5 DIP 1 1JP1 01.40.CON.DTJ.E004...
  • Page 75 01.57.R.2.E105J SMD resistor 0603-1MΩ±5% 2 (5R16) (5R8) 0603-22P 01.54.CS.2.E220N SMD capacitor 2 (5C49) (5C48) NPO±5%/50V 0603-102 01.54.CS.2.E102X SMD capacitor 7 5C5 5C6 5C7 5C8 5C9 5C10 5C11 X7R±10%/50V 0603-392 01.54.CS.2.E392X SMD capacitor 2 5C44 5C45 X7R±10%/50V 0603-103 01.54.CS.2.E103X SMD capacitor 1 (5C47) X7R±10%/50V 5C1 5C2 5C3 5C4 5C21 5C22 5C23...
  • Page 76 01.13.L.Z.ESB50 SMD magnetism bead 0805-50Ω 1 FB1 CD110-100UF/1 01.34.CL.D.E100U16VC Electrolyse capacitor 1 C2 6V 5*11 1.25-13A(vertica 01.40.CON.S13.AY1.003 Jack 1 J2 l) DIP 144-130000090 01.40.CON.DCZ.E351 SD card seat 1 J6 1 SMD SD card board 01.37.PCB.2.E3773C Circuit board 3773C Bom No Part No Part Name 02.14.LTD06I3772C0...
  • Page 77 01.57.R.2.E101J SMD resistor 0603-100Ω±5% 1 R16 01.57.R.2.E103J SMD resistor 0603-10KΩ±5% 1 R17 0603-105 01.54.CS.2.E105Y16V SMD capacitor Y5V-20+80%/16 1 C5 CD110-10UF/16 01.34.CL.D.E10U16VC Electrolyse capacitor 1 EC4 V 5*11 01.41.D.FD.E3RB Radiation diode φ3 1 LED 01.44.IC.D.E0038B HS0038B DIP 1 IR 1.25-6A( vertical 01.40.CON.S13.AY1.002 Jack 1 CON5...
  • Page 78 0603-474 01.54.CS.2.E474Y SMD capacitor Y5V+80-20%/50 1 C15 0603-105 01.54.CS.2.E105Y16V SMD capacitor Y5V-20+80%/16 4 C3 C4 C8 C11 1808-10P/3KV 01.54.CS.6.E100 SMD capacitor 4 C26 C30 C34 C38 NPO±5% SMD ceramic C3225X5R1E10 01.35.CC.E121010U25VX 4 C21 C23 C22 C24 capacitor 220UF/25V 8*12 （±20%,105 , 01.34.CL.D.E220U25VD1 Electrolyse capacitor ℃...
