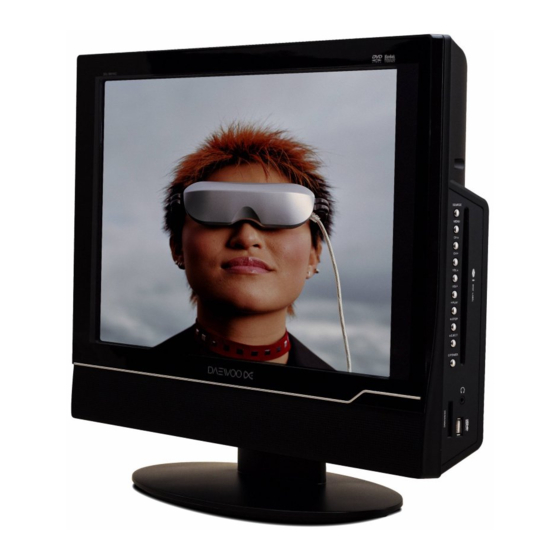

Daewoo DSL19M1WC Instruction Manual

Tft lcd tv
Hide thumbs Also See for DSL19M1WC:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL19M1WC and is the answer not in the manual?

Questions and answers

Related Manuals for Daewoo DSL19M1WC

Summary of Contents for Daewoo DSL19M1WC

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Instructions ................1 Disc Information.....................3 Front Panel......................4 Rear Panel.......................5 Remote Control ......................6 System Connections....................9 Connecting to Power Supply..................9 Connecting to External AV Signal Source..............9 Connecting to External AV Signal Source(YPbPr)..........10 Connecting to External AV Signal Source(SCART) ..........10 Connecting to External AV Signal Source(AV Output)...........11 Connecting to Earphone ..................11 Connecting to PC ....................12...

  • Page 3: Important Safety Instructions

    Important Safety Instructions This symbol indicates that dangerous voltage instituting a risk of electric shock is present within this unit. This symbol indicates that there are important operation and maintenance instructions in the literature accompanying the appliance. Caution: Laser radiation when open. Do not stare into beam. Caution: use of any controls, adjustments, or procedures other than those specified herein may result in hazardous radiation exposure.
  • Page 4 Important Safety Instructions 1. Read these instructions IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. Keep these instructions 2. DANGER: Visible laser radiation when open and 3. Heed all warnings. interlock failed or defeated. Avoid direct exposure to 4.

  • Page 5: Disc Information

    Disc Information Discs Supported DISC LOGO CONTENTS SIZE MAXIMUM TIME 133min(SS-SL) Audio+Video 242min(SS-DL) 12cm (active picture) 266min(DS-SL) 484min(DS-DL) Audio 12cm 74min JPEG Still high resolution 12cm The operating method of some DVD discs is specified by the software maker. Please refer to the instruction manual of the disc.

  • Page 6: Front Panel

    Front Panel 1. Colour TFT screen 7. ■ STOP button 2. SOURCE button Press to stop disc playback. Press repeatedly to select inputs: choose 8. Eject button from TV, SCART, COMPOSITE, S-VIDEO, Press to eject the disc. COMPONENT, VGA and DVD mode. 9.

  • Page 7: Rear Panel

    Rear Panel Open the back cover on the right side of the unit’s rear panel and you will see all jacks, as shown below: 1. Y/Pb/Pr Input Jacks 5. VGA Input Jack Connect the Y/Pb/Pr input in Component Connect the VGA input in VGA mode. mode.

  • Page 8: Remote Control

    Remote Control Preparation of Remote Control Using of Remote control Softly push the back cover to open the battery Point the remote control unit from no more than compartment. about 7 metres from the remote control sensor and within about 60 degrees of the front of the unit.

  • Page 9: Remote Control Drawing

    Remote Control Remote Control Drawing 1. POWER button Press to enter or exit the standby mode. 2. TV button Press to select TV mode. 3. DVD button Press to select DVD mode. 4. P.M. button Press repeatedly to select the screen picture modes, choose...
  • Page 10 Remote Control 19. MENU button (under DVD mode) 31. SLEEP button Press to enter disc menu in DVD mode. Press to select the desired time to sleep. In teletext mode, press to disable teletext 32. Eject button display for page updates and press again Press to eject the disc from the unit.

  • Page 11: System Connections

    System Connections • Open the back cover on the right side of the unit’s rear panel. • Do not connect the power cord until all other connections have been made. • Ensure that you observe the colour code when connecting audio and video cables. Connecting to Power Supply Connect one end of the provided power adapter to the DC 12V IN jack on the side panel of the unit and the other end to the AC wall outlet.

  • Page 12: Connecting To External Av Signal Source(Ypbpr)

    System Connections Connecting to External AV Signal Source (YPbPr) Use red, green and blue component video cables and red and white audio cables to connect the external AV signal source to the Y/Pb/Pr input Jacks on the rear panel of the unit. And the other end of the cables into the corresponding sockets on the TV (see below).

  • Page 13: Connecting To External Av Signal Source(Av Output)

    System Connections Connecting to External AV Input Device (AV Output) Use the AV cables to connect the external AV input device to the AV output jacks on the side panel of the unit. Note: The unit can output TV, COMPOSITE, S-VIDEO and SCART-COMPOSITE signals. After connection, turn on the power of the unit and external AV input device and then press the SOURCE button to select the corresponding mode.

  • Page 14: Connecting To A Pc

    System Connections Connecting to a PC Follow the steps and figure below to connect a PC to the unit. Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit and the other end to the PC.

  • Page 15: Connecting To A Tv Antenna

    System Connections Connecting to a TV Antenna Connect TV signal source from the aerial to the TV jack on the rear panel of the unit. After connection, turn on the power of the unit. Then press the SOURCE button to select TV mode and conduct program selection.

  • Page 16: Tv Function

    TV Function NOTE: In other mode, you can refer to the following instructions in TV mode to go on with some settings. Only when there are signals, the menus can appear and be set. Preparation 1. After connection, press the POWER button to turn on the unit. 2.
  • Page 17 TV Function Brightness Setup Press the ▲▼ button to select Brightness and press the ◄► button to adjust the value. Press the MENU button to return to the previous menu. Contrast Setup Press the ▲▼ button to select Contrast and press the ◄► button to adjust the value. Press the MENU button to return to the previous menu.

  • Page 18: Audio Setting

    TV Function Audio Setting Press the MENU button once to enter the setup menu. Press the ▲▼ button to select Audio and press the ENTER button to enter the menu shown right. In this setup menu, press the ▲▼ button to select the desired item.

  • Page 19: Timer Setting

    TV Function Sound Mode Setup Press the ▲▼ button to select Sound Mode and press the ENTER button to enter. Press the ▲▼ button to select the desired item and then press the ENTER button to confirm your selection. Press the EXIT button to exit from the menu.
  • Page 20 TV Function Tuner/Channel Press the ▲▼ button to select the Tuner/Channel and press the ENTER button to enter the menu shown right. Press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu. Country Press the ▲▼...
  • Page 21 TV Function Prog Organizer Press the ▲▼ button to select the Prog Organizer and press the ENTER button to enter the menu shown right. In the Prog Organizer setup menu, press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu.
  • Page 22 TV Function Search Press the ▲▼ button to select Search and press the ► or ◄ to start searching forward or backward. Press the MENU button to return to the previous menu. Colour System Press the ▲▼ button to select Colour System and press the ENTER button to enter the setup, press the ▲▼...
  • Page 23 TV Function Pr NO Press the ▲▼ button to select Pr NO and press the ENTER button to enter. Press the number buttons to enter the channel number. Press the MENU button to return to the previous menu. Store Press the ▲▼ button to select Store and press the ENTER button to store the above operations. Note: The “Pr NO”...

  • Page 24: Teletext Function

    TELETEXT Function Teletext is an optional function, therefore only the sets with the teletext system can receive the teletext broadcast. Teletext is a free service broadcast by most TV stations which provides up-to-the-minute information on news, weather, television programs, stock prices and many other topics. The teletext decoder of this TV can support the SIMPLE and FASTEXT systems.

  • Page 25: Nicam Function

    NICAM Function The unit supports NICAM function when in TV mode. Under NICAM TV broadcast: 1. When receiving stereo audio signals, press the STEREO/AUDIO button on the remote control repeatedly to select the sound tracks between Nicam Stereo and Mono and the screen will show the corresponding display as shown below: 2.

  • Page 26: Dvd Playback Operation

    DVD Playback Operation Preparation Connect the unit to the power supply and press the POWER button to turn on the unit. Press the SOURCE button and select DVD mode. Holding the disc with its printed side outward vertically to the disc tray and gently insert the disc into the disc tray slot.
  • Page 27 DVD Playback Operation Fast Playback Press the button on the remote control to activate fast backward or forward playback. SLOW During DVD disc playback, press the SLOW button on the remote control to start slow playback. During slow playback, press the PLAY button to resume normal playback.
  • Page 28 DVD Playback Operation Various Camera Angles The movies on some discs have been recorded from various camera positions, which can make you enjoy the same scene from different perspectives. When playing a disc containing various camera angles, the camera symbol appears on the screen. Press the ANGLE button repeatedly until the desired perspective is shown.

  • Page 29: Jpeg Playback

    DVD Playback Operation JPEG Playback JPEG is a common picture format that requires small amounts of storage per image and has low loss in resolution. Hundreds of pictures can be stored on a disc in this format. In order to view JPEG photo albums, you can ask your film development company to make a ”PICTURE CD”...

  • Page 30: Usb And Sd/Ms/Mmc Card Function

    USB and SD/MS/MMC Card Function Preparation In DVD mode, connect USB memory to the USB port or insert SD/MS/MMC card into the SD/MS/MMC card slot on the right side of the unit. Make sure that files are stored on USB memory or the SD/MS/MMC card before connection. File Playback Press the CARD button to select disc playback, USB playback or SD/MS/MMC playback.

  • Page 31: Dvd System Setup

    DVD System Setup Preparation In DVD mode, press the SETUP button to open DVD setup menu. Press the button to select setup menu Press the SETUP button again to exit from DVD setup menu. General Setup Page Press the SETUP button to enter General Setup Page and the screen will display as below: 1.
  • Page 32 DVD System Setup OSD Lang 1. Press the button to select OSD Lang. 2. Press the ENTER button to enter. 3. Use the button to select items. 4. Press the ENTER button again to confirm selection and return to the previous menu. Captions 1.

  • Page 33: Audio Setup Page

    DVD System Setup Media Center 1. Press the button to select Media Center. 2. Press the ENTER button to enter. 3. Use the button to select DVD, USB, SD/MMC or MS. 4. Press the ENTER button again to confirm selection and return to the previous menu. Audio Setup Page Press the SETUP button to enter General Setup Page and then use the buttons to select...
  • Page 34 DVD System Setup Dynamic 1. Press the button to select Dynamic. 2. Press the ENTER button to enter. 3. Use the button to adjust. 4. Press the ENTER button again to confirm setting and return. 5. Press the button to return. HDCD Setup On the Audio Setup Page, use the direction buttons to select HDCD Setup.
  • Page 35 DVD System Setup Video Quality Setup Select Quality in the Video Setup Page and press the ENTER button to enter the menu as below: 1. In the menu, use the button to select the desired item. 2. Press the ENTER button to enter the item. 3.
  • Page 36 DVD System Setup Preference Page Press the SETUP button to enter the General Setup Page and then use the button to select Preference Page, the screen will display as the below: 1. In the menu, use the button to select the desired item.
  • Page 37 DVD System Setup Parental DVD discs equipped with the child lock function are rated according to their contents and settings vary from disc to disc. Depending on the disc, you can lock out playback of the disc altogether. 1. Press the button to select Parental.
  • Page 38 DVD System Setup Password Mode 1. Press the button to select Password Mode. 2. Press the ENTER button to enter. 3. Press the button to select On or Off. 4. Press the ENTER button again to confirm setting and return. Password Change You can change the password by yourself.

  • Page 39: Other Functions

    Other Function External AV Input Function The unit has an external AV input function. It supports Composite, S-VIDEO and Component modes. Use the audio, video and S-Video cable to connect the unit to the external AV signal source such as a DVD or VCR recorder, camcorder, satellite receiver or game player etc. Then turn on the unit and the external AV signal source.

  • Page 40: Troubleshooting

    Troubleshooting SYMPTOM CHECK ITEM There is no display on the Make sure the unit is turned on and all connections are screen. correct. Make sure the unit is turned on and all connections are correct. There is no sound. Make sure the volume is not turned down or muted. Make sure the sound setup is correct.

  • Page 41: Specifications

    Specifications TFT-LCD Resolution 1440 x 900 TFT-LCD Screen Size 19 inches AC100～240V，50/60Hz Power DC 12V DVD Player DVD+/-RW, DVD+/-R, CD, CD-R, CD-RW, JPEG, MS, SD, MMC 3 in 1 Card reader and USB 1.0/2.0 Multi Media USB Memory Reader compatible Max Volume up to 2 GB 15 Pin, Analog RGB signal, 0.7Vp-p, 75Ωinput (VGA, SVGA, XGA computer signal compatibility)
