Service Manual

LCD TV
CHASSIS : SL-500T
Model : DLT-26C2
DLT-26C3
DLT-32C1
DLT-32C2
DLT-32C3
DLT-32C6
DLT-32C7
DLT-37C3
DLT-37C7
S/M NO. : DSL500TEF0
Sep. 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLT-26C2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DLT-26C2

Summary of Contents for Daewoo DLT-26C2

  • Page 1: Service Manual

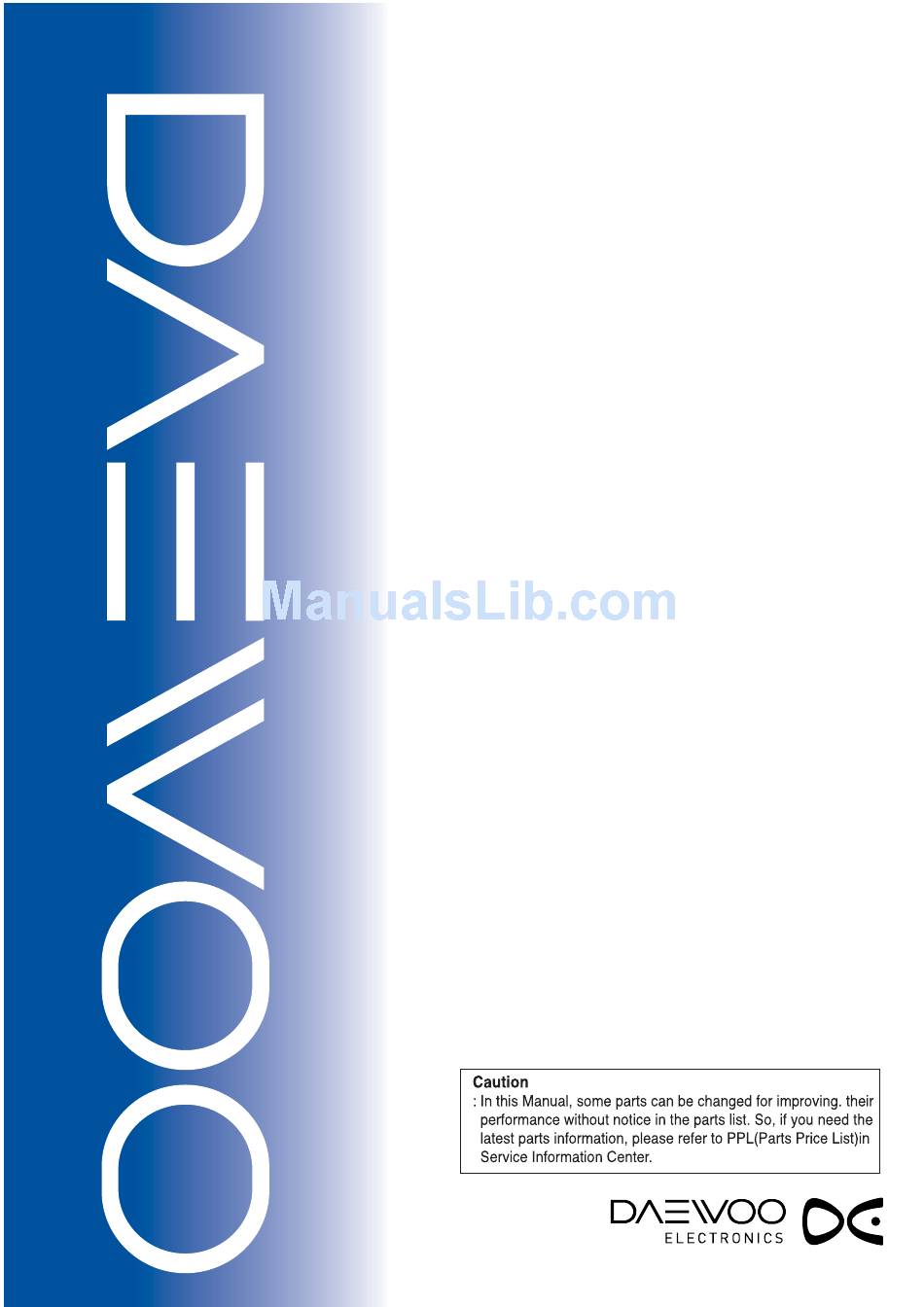

    S/M NO. : DSL500TEF0 Service Manual LCD TV CHASSIS : SL-500T Model : DLT-26C2 DLT-26C3 DLT-32C1 DLT-32C2 DLT-32C3 DLT-32C6 DLT-32C7 DLT-37C3 DLT-37C7 Sep. 2007...
