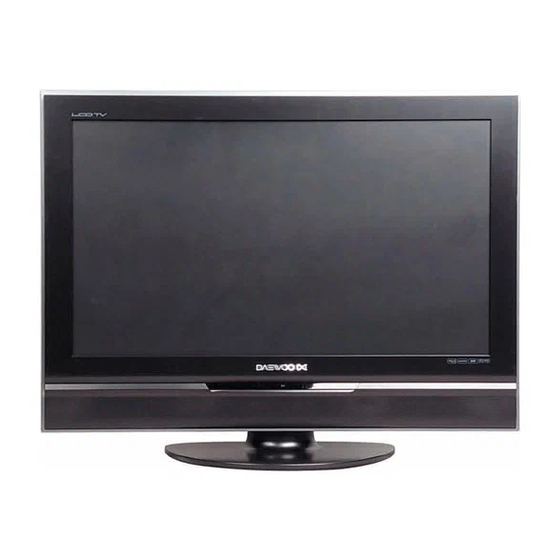

LCD TELEVISION

INSTRUCTION MANUAL

DLP-32C5(P/PD/PB/R/T/W/LPB)
DLP-32C6(P/PD/PB/R/T/W/LPB)
DLP-32C7(P/PD/PB/R/T/W/LPB)
DLP-32G1(P/PD/PB/R/T/W/LPB)
DLP-32U1(P/PD/PB/R/T/W/LPB)
DLP-32U2(P/PD/PB/R/T/W/LPB)
DLP-37C7(P/PD/PB/R/T/W/LPB)
DLP-37G1(P/PD/PB/R/T/W/LPB)
DLP-42C1(P/PD/PB/R/T/W/LPB)
DLP-42C5(P/PD/PB/R/T/W/LPB)
DLP-42C7(P/PD/PB/R/T/W/LPB)
DLP-42G1(P/PD/PB/R/T/W/LPB)
DLP-42U1(P/PD/PB/R/T/W/LPB)
DLP-42U2(P/PD/PB/R/T/W/LPB)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLP-32C5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DLP-32C5

Summary of Contents for Daewoo DLP-32C5

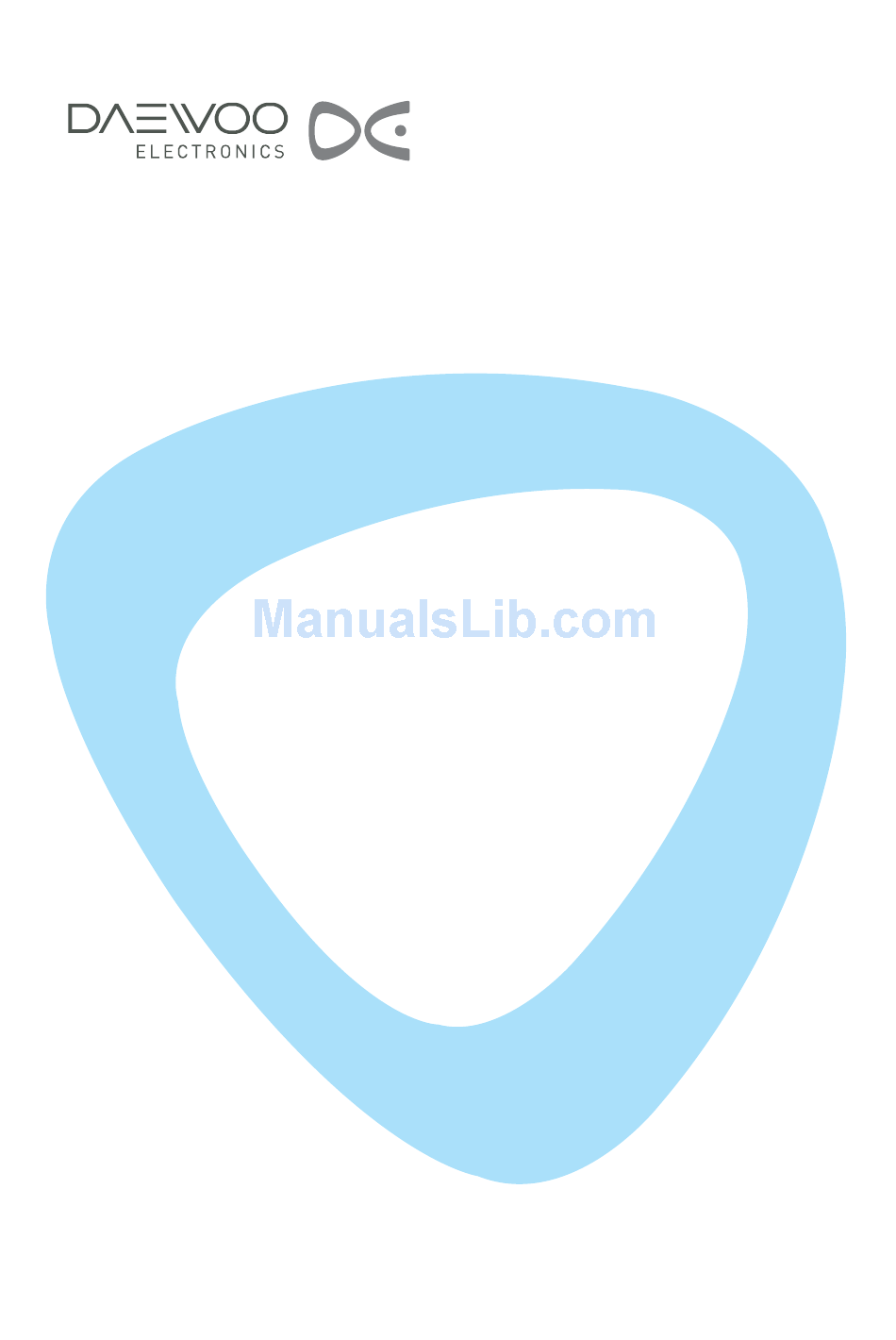

  • Page 1: Instruction Manual

    LCD TELEVISION INSTRUCTION MANUAL DLP-32C5(P/PD/PB/R/T/W/LPB) DLP-32C6(P/PD/PB/R/T/W/LPB) DLP-32C7(P/PD/PB/R/T/W/LPB) DLP-32G1(P/PD/PB/R/T/W/LPB) DLP-32U1(P/PD/PB/R/T/W/LPB) DLP-32U2(P/PD/PB/R/T/W/LPB) DLP-37C7(P/PD/PB/R/T/W/LPB) DLP-37G1(P/PD/PB/R/T/W/LPB) DLP-42C1(P/PD/PB/R/T/W/LPB) DLP-42C5(P/PD/PB/R/T/W/LPB) DLP-42C7(P/PD/PB/R/T/W/LPB) DLP-42G1(P/PD/PB/R/T/W/LPB) DLP-42U1(P/PD/PB/R/T/W/LPB) DLP-42U2(P/PD/PB/R/T/W/LPB)
  • Page 2 Caution CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulat- ed “dangerous voltage”...

  • Page 3: Important Safeguards

    Important Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. Read, Retain and Follow All Instructions Read all safety and operating instructions before operating the TV. Retain them safely for future reference.

  • Page 4: Replacement Parts

    Important Safeguards 13. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
  • Page 5 Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. In case of an accident, please unplug the unit from the outlet immediately. To reduce the risk of electric shock, do Do not put any object that contains water - To prevent fire and damages to the product,...
  • Page 6 Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. Please keep the user's manual in a safe place for future reference. Do not cover the top of the television set.

  • Page 7: Table Of Contents

    Table of Contents Installation and Maintenance Antenna Connection Video Connection Camcorder & Video Game Connection DVD Player Connection STB Connection PC Connection Cable TV Broadcasting Connection Connect with the Dolby Digital AMP Name of Each Part Basic Guide Parts of the Remote Controller Method To Use Basic Menu To Watch TV Setting Up TV Stations...
  • Page 8 Supplied Accessories Make sure that the following accessories are provided with the product. AC cord AC cord Instruction manual Remote controller Batteries Microfiber sheet Cable holder (For 32C1/U1/U2, 42C1) Cover Bottom -When you install wall mounting you set up cover bottom like upper picture. The method of wire arrangement 1.

  • Page 9: Antenna Connection

    Antenna Connection Indoor Antenna Connection 1. Connect the feeder cable of the antenna to the combining adapter. WHEN THE IMAGE IS NOT CLEAR : Unclear screen image and bad reception may be a cause of wrong antenna connection. Be sure to check its direction and place when installing.
  • Page 10 Antenna Connection CTV Antenna Connection Such community TV Antenna installation may be found in most of co-op apartments. When a coaxial cable is used : Plug the coaxial cable to the antenna socket, and fix it firmly by turning it to the right.
  • Page 11 Antenna Connection Outdoor Antenna Connection Outdoor Antenna connection-such as VHF or/and UHF-may be necessary for installation at private houses Single Antenna Connection VHF Antenna UHF Antenna BACK OF THE TV SET ANT/CABLE UP-GRADE Separate Antenna Connection. ANT/CABLE...

  • Page 12: Video Connection

    Video Connection Connecting with an External Source You may connect an S-Video input to enjoy clearer and brighter picture images. You can make the connection with the AV3 input. S-Video Note : If S-video and RCA phone jack are connected the same time, the TV set will only detect the S-Video mode. •...

  • Page 13: Camcorder & Video Game Connection

    Camcorder & Video Game Connection Watching a Camcorder Recording on TV or playing a Video Game 1. Prepare the S-video and RCA connector. 2. These connectors connect to S-Video or AV3 as shown in the picture below. 3. Turn on the TV set and camcorder/video game. 4.

  • Page 14: Dvd Player Connection

    DVD Player connection When connecting with a component cable or Euro SCART cable BACK OF THE TV SET INPUT HDMI 1 HDMI 2 OPTICAL COMPONENT DIGITAL AUDIO PC INPUT R - AUDIO - L PC AUDIO Note : • You can use a scart cable but some DVD’s have a component output for a better picture. •...

  • Page 15: Stb Connection

    STB(Set Top Box) Connection When connecting with a SCART cable BACK OF THE TV SET INPUT HDMI 1 HDMI 2 OPTICAL COMPONENT DIGITAL AUDIO PC INPUT R - AUDIO - L PC AUDIO Set Top Box...

  • Page 16: Pc Connection

    Connection When connecting with PC(D-Sub) cable. 1. First adjust resolution of the PC. (Refer to table in page 17.) 2. Then disconnect your monitor from your PC and connect between PC and TV set using the D-sub and Audio cable as shown in the picture below. 3.

  • Page 17: Resolutions Table

    Connection PC CONNECTION NOTES: 1) The resolution of the TV set is best at 1360(6) X 768(WXGA). 2) If there is a [Vertial Frequency] setting menu in the [Display] Menu of the PC, adjust the frequency to 60Hz. 3) If the PC resolution is too high, it may be hard to detect signals. Select a suitable resolution. 4) HDMI input port receives only digital Signal.

  • Page 18: Cable Tv Broadcasting Connection

    Cable TV Broadcasting Connection External Input Connection Source Watching cable television is only possible after you have subscribed to the local broadcasting company and installed a cable receiver. You may make the connection to either the Component input or SCART input AV1 or AV2.

  • Page 19: Connect With The Dolby Digital Amp

    Connect with the Dolby Digital AMP If you connect the optical output to a Dolby digital AMP, you can listen to better sound. BACK OF THE TV SET INPUT HDMI 1 HDMI 2 OPTICAL COMPONENT DIGITAL AUDIO PC INPUT R - AUDIO - L PC AUDIO Optical output Dolby Digital AMP...

  • Page 20: Name Of Each Part

    Name of Each Part Front / Side Panel Buttons on the TV set have the same functions as those of the remote controller. MENU Front Panel Side Panel Control Key Buttons. TV/VIDEO Button : Each time you press this button, the TV will cycle through: TV =>...
  • Page 21 Name of Each Part Rear Panel Side Panel Rear Panel INPUT HDMI 1 HDMI 2 OPTICAL COMPONENT DIGITAL AUDIO PC INPUT UP-GRADE R - AUDIO - L PC AUDIO...

  • Page 22: Parts Of The Remote Controller

    Parts of the Remote Controller This remote controller is universal; thus, it may be convertible for TV, Video, CTV, etc. (MUTE) : Press this button, and the sound goes off. Press again, and the sound returns. (POWER) : TV on/off button in Stand-By mode. 3.
  • Page 23 Parts of the remote controller : Move the cursor (LEFT/RIGHT/UP/ DOWN) in the menu 17. MENU : Menu display button. 18. ASPECT : Select screen aspect ratio : Full Screen => 4:3 => POWER MUTE 14:9 => Zoom14:9 => Zoom16:9 => Auto => Full Screen Note.

  • Page 24: Method To Use Basic Menu

    Method To Use Basic Menu Basic Menu - The basic menu appears on the screen if you press the “MENU” button of the remote control. - There are 5 items Picture, Screen, Sound, Install, and Function in the basic menu. - Each item has sub-items under it.

  • Page 25: To Watch Tv

    To Watch TV On/Off, Number, Mute, Recall, - Buttons with same name in the front side of the set performs the same function. Press the " " button of the front side of the set or Remote controller . • The buttons of the remote control or the front side of the POWER MUTE set operate only when AC power is turned on.
  • Page 26 To Watch TV 1. Turning on the TV. • Plug the AC lead into a power outlet. • The STANDBY LED lamp turns on in red. • Press “ ” button of the front side of the set or POWER “POWER”...

  • Page 27: Setting Up Tv Stations

    Setting Up TV Stations Auto Tuning - All stations that can be received are stored by this method. It is recommended that you use Auto tuning during installation of this set. 1. Press the “MENU” button to select the Install menu. MENU Picture Normal...

  • Page 28: Manual Tuning

    Setting Up TV Stations Manual tuning 1. Press the Number buttons(0~9) or the “ PR ” button to select a program number you want. LECT S.EFFECT 2. Locate the selection bar on the Manual tuning at the MENU Picture Access Auto Tuning Install menu.
  • Page 29 Setting Up TV Stations Setup The Setup menu shows you information as follows: - Channel, System, Frequency, Station name, Program number and Store to PR number. 1. Searching for channels in the Setup menu Picture Auto Tuning Access • Press the “ PR “ buttons to select a program number Access Manual Tuning Screen...
  • Page 30 Setting Up TV Stations Edit The Edit menu shows you information as follows: - Program position assignment: Program number and Station name, Real channel number. - Skip information: Yes or No. - One can move on this edit mode directly using “Move”(Yellow) button on the remote control. 1.

  • Page 31: Selection Of Av And Multimedia Input Signal

    Selection of AV and Multimedia Input Signal When watching video, Camcorder, DVD, Cable TV with AV - See page 12 for connection method of Camcorder and Video. - When pressing ” ” button on the TV set, screen changes as follows: TV =>...
  • Page 32 Selection of AV and POWER MUTE Multimedia Input Signal MULTI TV/AV SLEEP MEDIA When connecting PC, STB, DVD with Multimedia 1. Pressing the "MULTIMEDIA" button on the remote controller. • The screen changes as follows : COMP => PC => HDMI1 => HDMI2 => COMP COMP - - : - - - - : - -...

  • Page 33: Screen Adjustment

    Screen Adjustment When setting up various screen modes - The user may select various screens designed for a good picture without adjusting the brightness, contrast or colour individually. 1. Pressing the “NORMAL” button. PREV PR MENU ASPECT • The screen changes as follows: Normal =>...
  • Page 34 Screen Adjustment When adjusting the screen to taste - You can enjoy various screens by adjusting Brightness, Contrast, Colour, Sharpness, etc to the user’s taste. 1. Select "PICTURE" by pressing the "MENU" button. Picture Normal Picture Mode • The menu screen appears as follows. Brightness Screen Contrast...
  • Page 35 Screen Adjustment Adjustment of Screen Size in TV and AV mode - Randomly change the size of the screen. EDIT STILL SOUND LOCK - The AUTO screen operates when power is first turned on. PREV PR MENU ASPECT 1. Pressing the "ASPECT" button on the remote controller. RECALL NORMAL DYNAMIC BASS...

  • Page 36: Still Image

    Screen Adjustment Adjustment of the screen in the PC mode 1. Auto Adjustment Picture Auto Adjustment Start Screen • Move to Auto in the Screen menu. H Position V Position Sound • Press the ” / ” buttons to detect optimal resolution Phase Install Clock...

  • Page 37: Pip Mode

    PIP Mode - The user can enjoy two screens by using PiP function. 1. Adjustment of PiP Mode Picture Aspect Full Screen • Move to Mode in the PiP. Access Screen Access • Press the " / " buttons to select, PiP mode changes as follow: Sound POP =>...
  • Page 38 PIP Mode 5. Pressing the “P.SWAP” button on the remote controller. •Switch the Main and Sub screen each other. 6. Pressing the “P.INPUT” button on the remote controller. • If Sub is on Digital, Switch the Sub screen in the MULTIMEDIA cycle(HDMI1 -> HDMI2 -> HDMI1…) PC and COMP aren’t selected cause it is Analog side.

  • Page 39: Sound Adjustment

    Sound Adjustment When adjusting sound to taste - The user can enjoy various sounds by adjusting Sound Mode, Equalizer, Balance and Amp Speaker. 1. Select AVC Mode Picture • Select Auto Volume Control On/Off by pressing Dynamic Bass Screen Spatial Effect ”...
  • Page 40 Sound Adjustment Multi-Sound and Stereo 1. Mono Sound Selection • During Stereo sound reception if the stereo is weak, you can switch to MONO by pressing the button. Then the colour of S.EFFECT "MONO" character will change to Red. In Mono reception the depth of sound is improved.

  • Page 41: Selection Of Language

    Selection of Language Selection of Language When you first turn on the TV set, the window of language selection is displayed automatically. 1. Press the “MENU” button and select "Function". MENU Picture Language English Clock Pr Screen - - : - - Clock Sound Wake Up...

  • Page 42: Adjustment Of Time

    Adjustment of Time Adjustment of Time - You must previously adjust current time in order to reserve Automatic On/Off. 1. Manual clock setting Picture Language English • Move to Timer in the Function menu. Clock Pr Screen - - : - - Clock •...

  • Page 43: Teletext

    Teletext Teletext SWITCHING TELETEXT ON/OFF Press the “TELETEXT” button ( The index page or the page viewed last will appear. Press the “TELETEXT” button again to return to the TV mode. NOTE: Teletext works only in TV/AV mode. COLOUR BUTTONS IN TOP (Tables Of Pages) NB. not used in the UK /FLOF (Full Level One Feature) TELETEXT A red, green, yellow and blue field is shown at the bottom of the screen.

  • Page 44: Troubleshooting

    Troubleshooting Symptoms and Solutions Please check the following list prior to calling Daewoo Electronics Service Centre for assistance Symptom Check items Neither picture - Check the contact of sockets is all right. nor sound - Check the TV main power is on.
  • Page 45 Troubleshooting In PC mode Symptom Check items “OUT OF RANGE” - Check the resolution and frequency of your PC. Then, adjust them appears on the to optimum condition for LCD TV. screen - Refer to the table of PC mode input format OUT OF RANGE (If registered resolution and frequency on the table no listed then no picture will be displayed.)

  • Page 46: Standard Of Product

    Standard of Product Screen Size 32" 37” 42” Aspect Ratio 16:9 Resolution 1366 x 768 (WXGA) Pixel Pitch 170.25um x 510.75um 0.200mm x 0.600mm 0.227mm x 0.681mm Contrast Ratio 5,000:1 10,000:1 10,000:1 Dimension (W x H x D) 806 x 590 x 260 mm 940 x 682 x 260 mm 1044 x 757 x 345 mm Power Consumption...
