Disassembly Instructions - Icom IC-R30 Service Manual

SECTION 3
Before disassembling:
REMOVE the microSD card if inserted. Otherwise the
rear panel and LOGIC/-1 UNIT cannot be separated.
See the IC-R30 BASIC MANUAL for removal details.

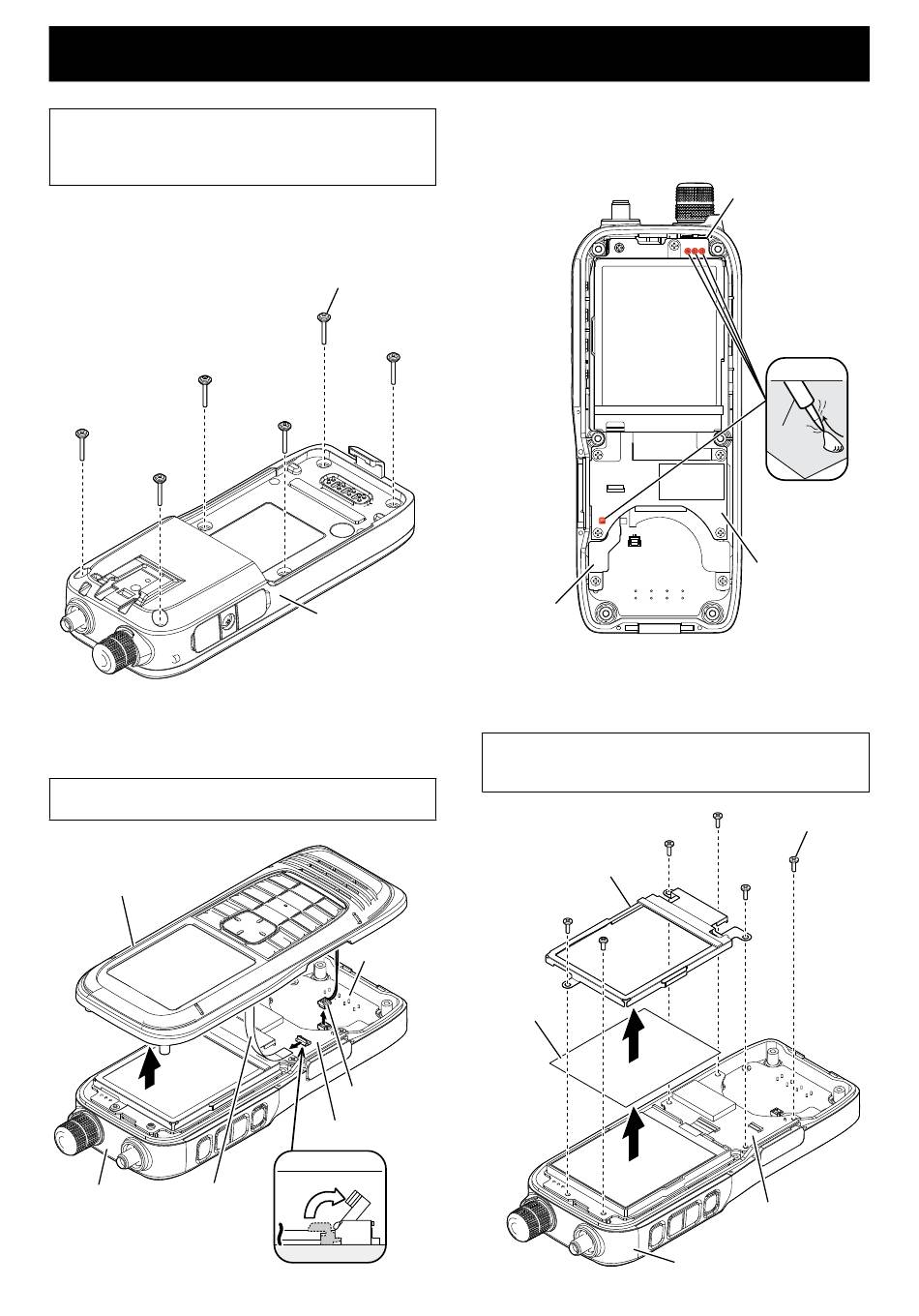

1. REMOVING THE FRONT PANEL
1) Remove the 6 screws from the rear panel.
2) Separate the front panel from the rear panel,and then
disconnect the flat cable from the LOGIC/-1 UNIT and
the speaker cable from the MAIN UNIT.
BE CAREFUL about the flat and speaker cable when
Front panel
separating the front panel from the rear panel.
Front panel
Front panel
Front panel
Rear panel Flat cable
Rear panel Flat cable
Rear panel Flat cable
Rear panel Flat cable

DISASSEMBLY INSTRUCTIONS

Screws ×6
Screws ×6
Screws ×6
Screws ×6
Rear panel
Rear panel
Rear panel
Rear panel
MAIN UNIT
MAIN UNIT
J1001
MAIN UNIT
J6
MAIN UNIT
J1001
J6
J1001 Speaker cable
J1001
J6
J6
LOGIC/-1 UNIT
Speaker cable
FLAT CABLE
Speaker cable
LOGIC/-1 UNIT
Speaker cable
Lift up
FLAT CABLE LOGIC/-1 UNIT
LOGIC/-1 UNIT
Lift up
FLAT CABLE
flat cable
FLAT CABLE
Lift up
Lift up
flat cable
flat cable
flat cable
