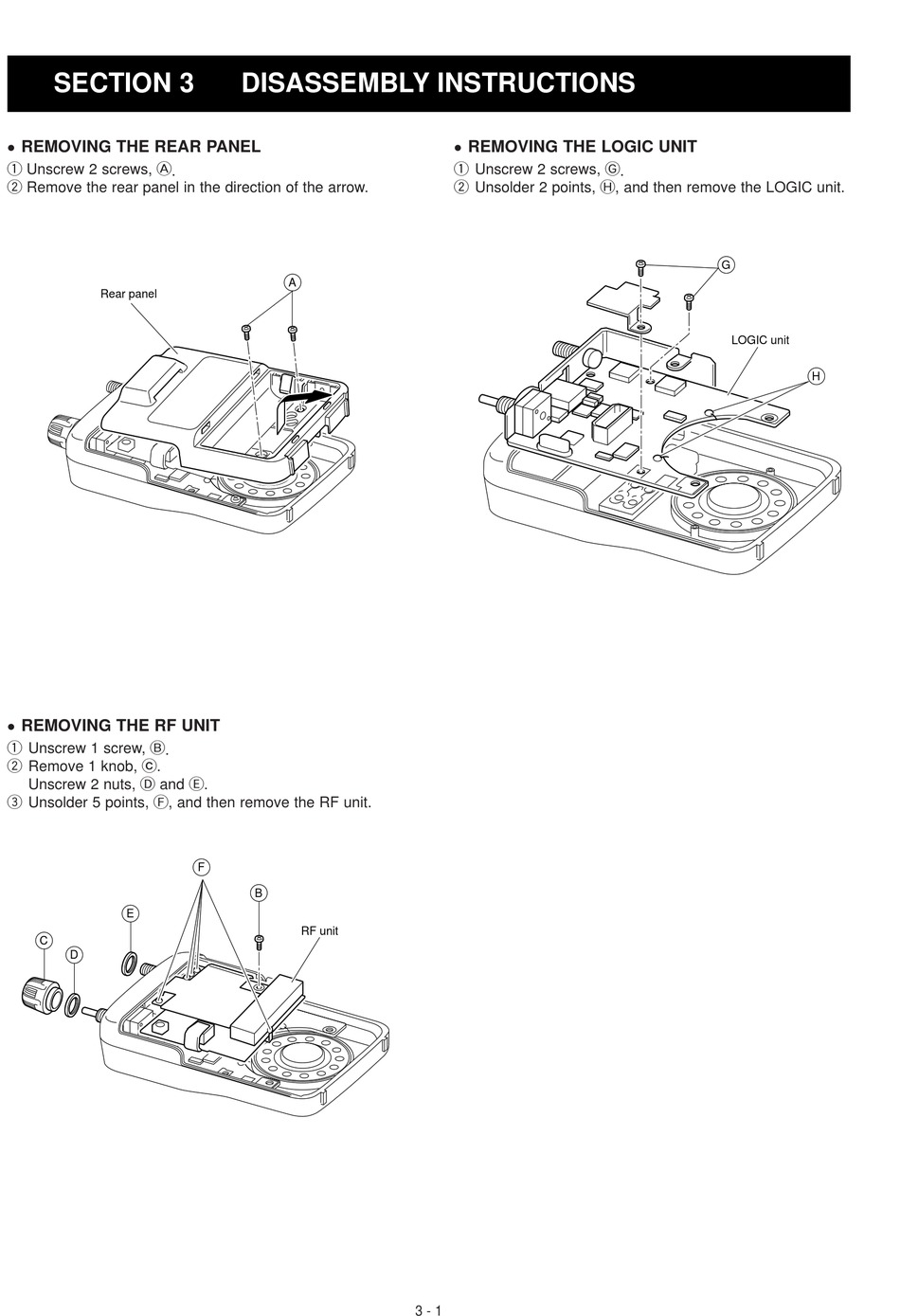

SECTION 3
•
REMOVING THE REAR PANEL
1 Unscrew 2 screws, A .
2 Remove the rear panel in the direction of the arrow.
Rear panel
•
REMOVING THE RF UNIT
1 Unscrew 1 screw, B .
2 Remove 1 knob, c.
Unscrew 2 nuts, D and E.
3 Unsolder 5 points, F, and then remove the RF unit.
E
C
D
DISASSEMBLY INSTRUCTIONS
A
F
B
RF unit
•
REMOVING THE LOGIC UNIT
1 Unscrew 2 screws, G .
2 Unsolder 2 points, H, and then remove the LOGIC unit.
3 - 1
G
LOGIC unit
H
