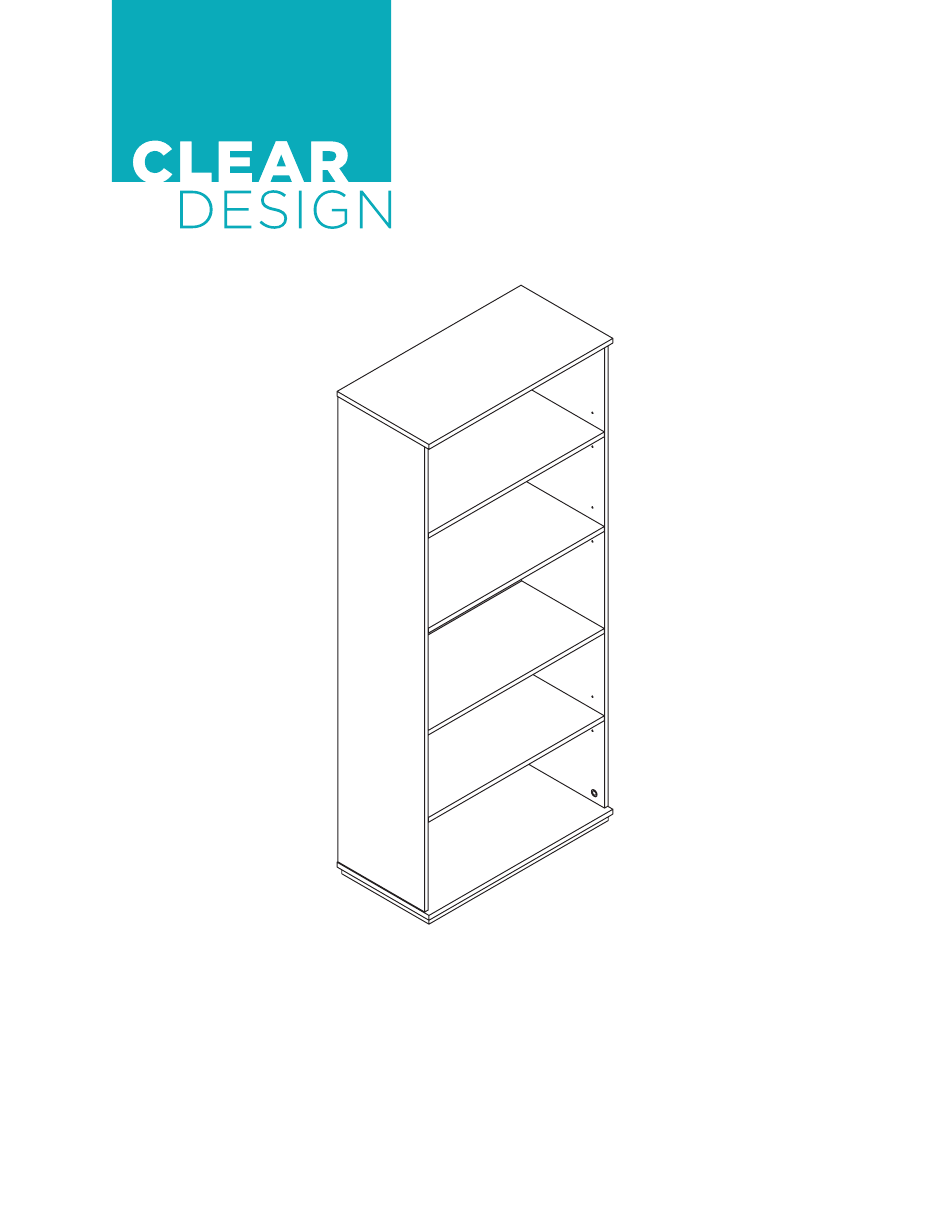

- Page 1 KIT-BLBC72 LAMINATE BOOKCASE Includes: Optional Locking Door (BLBCD) Add-on *General Guide | See Master Plan...
- Page 3 BOOKCASE PARTS LIST ITEM PRODUCT CODE CODE KIT-BLBC72 Top Panel KIT-BLBC72 Bottom Panel KIT-BLBC72 Side Panels KIT-BLBC72 Back Panel KIT-BLBC72 Fixed Shelf KIT-BLBC72 Adjustable Shelves Optional BLBCD (set of 2 doors) NOTE: Bookcase will come in 2 boxes...
- Page 4 1 | INSERT HARDWARE INTO TOP PANEL Insert hardware into the predrilled holes as shown below. Requires: • 6 Cam Pins Cam Pins 2 | INSERT HARDWARE INTO BOTTOM PANEL Insert hardware into the predrilled holes as shown below. Requires: •...
- Page 5 3 | INSERT HARDWARE INTO BOTH SIDE PANELS Insert hardware into the predrilled holes as shown below. Requires: • 5 Cam Pins • 6 Shelf Pins • 4 Wooden Dowels • 4 Cam Locks NOTE: Repeat steps for both panels. Shelf Pins Cam Locks Cam Pins...
- Page 6 4 | INSERT HARDWARE INTO BACK PANEL Insert hardware into the predrilled holes as shown below. Requires: • 2 Cam Pins • 8 Wooden Dowels • 12 Cam Locks Wooden Dowels Cam Pins Cam Locks...
- Page 7 5 | INSERT HARDWARE INTO FIXED SHELF Insert hardware into the predrilled holes as shown below. Requires: • 4 Wooden Dowels • 8 Cam Locks Cam Locks Wooden Dowels 6 | SECURE FIXED SHELF TO BACK PANEL Align the Cam Pins on the back panel with the open Cam Locks on the fixed shelf pane.
- Page 8 7 | SECURE 2 SIDE PANELS Align the 12 Cam Pins on the side panels with the 12 open Cam Locks on the assembled back panel and shelf. Turn the Cam Locks with a screwdriver to lock the Cam Pins in place. 8 | SECURE TOP AND BOTTOM PANELS Align the 6 Cam Pins on the top panel with the 6 open Cam Locks on side and back panels.
- Page 9 9 | INSERT SHELVES Place and secure remaining 3 shelves onto shelf pins. 10 | 5 | PLACE CAM LOCK COVERS...
- Page 10 OPTIONAL: 1 | PLACE FIRST DOOR Choose door placement then insert 4 wood screws through each door hinge and into the bookcase side panel. NOTE: Repeat steps for second door. OPTIONAL: 2 | SECURE DOOR HANDLE Using 2 wood screws, drive screws through door panel and into back of handle.
- Page 11 OPTIONAL: FINAL Double check that all hardware is tightened.
- Page 12 210.648.2095 | mycleardesign.com © 2021 Clear Design. All rights reserved.
