BHA2GSA/BHA3GSA

BOOST

HEIGHT-ADJUSTABLE

WORKSTATION

A1 | A2 | A3 | A4

Includes Add-Ons:

General Installation Guide

Need help?

Do you have a question about the BHA2GSA and is the answer not in the manual?

Questions and answers

Summary of Contents for CLEAR DESIGN BHA2GSA

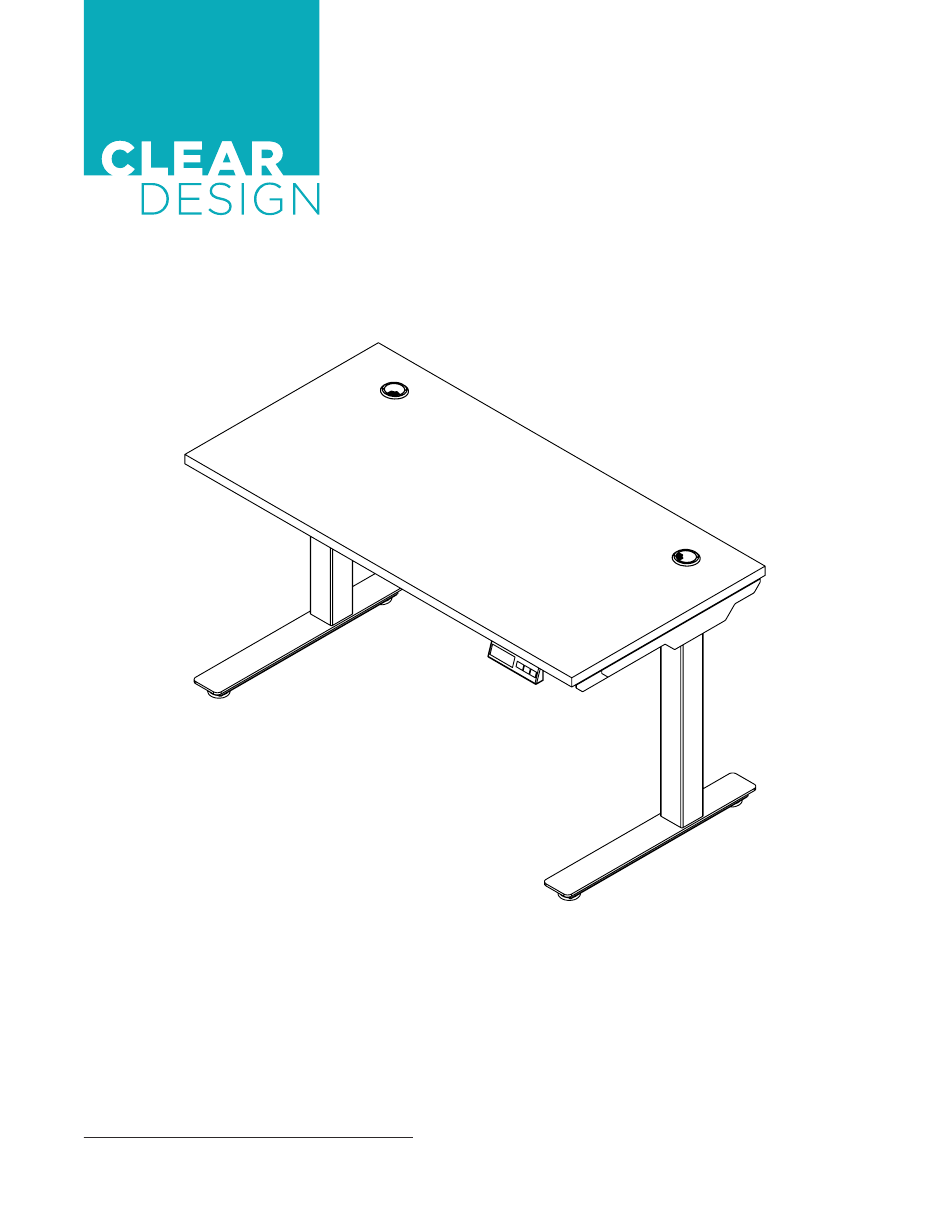

Page 1 BHA2GSA/BHA3GSA BOOST HEIGHT-ADJUSTABLE WORKSTATION A1 | A2 | A3 | A4 Includes Add-Ons: General Installation Guide...
Page 3 EDITION CODE :: Workstation ..............1 ADD-ONS :: Casters ................9 :: Modesty Panel .............. 13 :: Slim Pedestal ..............17 :: Cable Tray ..............21...
Page 4 WORKSTATION OVERVIEW BOOST Height-Adjustable Workstation All parts listed are for a single workstation; additional parts will be needed for additional workstations.
Page 5 CODE DESCRIPTION ###### Surface Center-Adjustable Beam Feet (Set of 2) 23" Arm Bracket Leg with Motor BHA3GSA Handset BHA2GSA Short & Long Extension Cord Power Cable Screw (A) Screw (B) Screw (C) Screw (D) BHANBEAM* BOOST Replacement Beam BHA19* 19" Arm Bracket TLEG.
Page 6 1 | DETERMINE SURFACE SIZE FOR INSTALLATION Use the chart below to identify which arm brackets will be used with surface size, and if surface will need replacement beam (BHANBEAM). Note: Reference STEP 4 after completing STEP 2 and 3. Including Surface Surface...
Page 7 2 | ASSEMBLE WORKSTATION FRAME Attach legs with motor and arm brackets to the center beam using screws (A). Note: Replace the default arm brackets if workstation requires BHA19 or T-brackets. Surface width 36"-47" will need to replace the beam, without the control box, with BOOST replacement beam (BHANABEAM).
Page 8 4 | ADJUST FRAME ON SURFACE Note: Based on STEP 1 surface size chart, reference one of the following workstation diagrams to secure frame. (A) 24"D x 36"–47"W Surfaces without Side Dividers Extend the frame equal to the surface width. Center arm brackets in reference to surface depth.
Page 9 (C) 24"D x 48"W and Smaller Surfaces without Side Dividers Extend the frame equal to the surface width. Center arm brackets in reference to surface depth. Secure frame to surface using wood screws (B) and secure handset using wood screws (C). (D) 24"D x 48"W and Smaller Surfaces with Side Dividers If using side dividers, frame will include arm brackets BHA19.
Page 10 (E) 24"D x 54"–72"W Surfaces without Dividers Extend the frame equal to the surface width. Center arm brackets in reference to surface depth. Secure frame to surface using wood screws (B) and secure handset using wood screws (C). (F) 24"D x 54"–72"W Surfaces with Side Dividers If using side dividers, inset the frame 2”...
Page 11 (G) 30" Deep Surfaces Extend the frame equal to the surface width. Center arm brackets to surface depth. Secure frame to surface using wood screws (B) and secure handset using wood screws (C). 5 | SECURE POWER CORD & INSTALL FEET Secure power cord to the control box.
Page 12 A1: CASTERS OVERVIEW BOOST Height-Adjustable Workstation All parts listed are for a set of 4 casters; additional parts will be needed for additional casters.
Page 13 PARTS LIST CODE DESCRIPTION Caster Kit (Set of 4) BHACAST Screws...
Page 14 1 | REMOVE GLIDES FROM FEET Unscrew all four glides from feet and disregard.
Page 15 2 | ATTACH CASTERS TO FEET The workstation’s feet have pre-drilled holes for the caster plate. Attach casters using self-tapping metal screws.
Page 16 A1: MODESTY PANEL OVERVIEW BOOST Height-Adjustable Workstation All parts listed are for a single modesty panel; additional parts will be needed for additional modesty panels.
Page 17 PARTS LIST CODE DESCRIPTION Laminate Modesty Panel* GLMP## Machine Screws L-Brackets BMPBFB Wood Screws *For Steel Modesty Panel: components may vary, but process is similar.
Page 18 1 | SECURE BRACKETS TO MODESTY PANEL Connect the BMPBFB bracket to the modesty panel using screws. Secure tightly.
Page 19 2 | ATTACH MODESTY PANEL TO SURFACE Attach modesty panel to surface using wood screws provided with brackets. Panel will be center aligned and flushed with back of surface.
Page 20 A2: SLIM PEDESTAL OVERVIEW BOOST Height-Adjustable Workstation All parts listed are for a single slim pedestal; additional parts will be needed for additional slim pedestals.
Page 21 PARTS LIST CODE DESCRIPTION Large Mounting Bracket BFSLM.SM Small Mounting Bracket BFSLM Slim Pedestal Machine Screw BFSLM.HW Wood Screw...
Page 22 1 | SECURE BRACKETS TO SLIM PEDESTAL Align large mounting bracket to front of pedestal and align small mounting bracket to back. Secure both brackets using provided screws.
Page 23 2 | ATTACH SLIM PEDESTAL TO SURFACE Secure pedestal to surface using wood screws. The pedestal brackets will connect on either side of the center beam.
Page 24 A3: CABLE TRAY OVERVIEW BOOST Height-Adjustable Workstation All parts listed are for a single cable tray; additional parts will be needed for additional cable trays.
Page 25 PARTS LIST CODE DESCRIPTION Surface-Mount Cable Management Tray BHCT Wood Screws...
Page 26 1 | EXTEND CABLE TRAY TO DESIRED LENGTH Extension range: 25"–45".
Page 27 2 | ATTACH CABLE TRAY TO SURFACE Attach cable tray using wood screws.

This manual is also suitable for:

Bha3gsa
