CLEAR DESIGN BLLBFV2 Quick Start Manual
Low box/file lateral
Hide thumbs
Also See for BLLBFV2:
- Assembly instructions manual (44 pages) ,
- Assembly instructions manual (22 pages)
Related Manuals for CLEAR DESIGN BLLBFV2
Summary of Contents for CLEAR DESIGN BLLBFV2

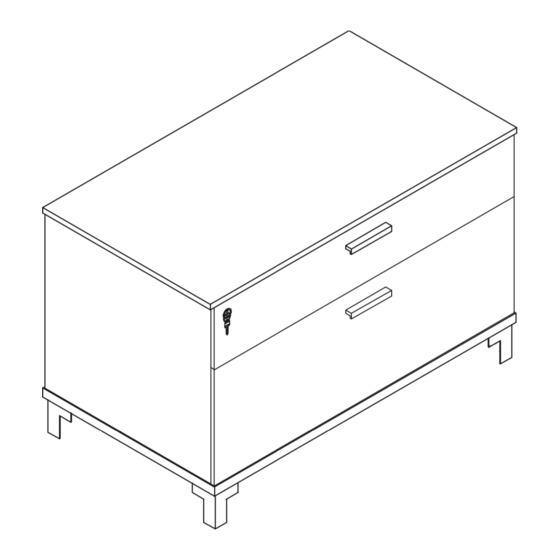

- Page 1 BLLBFV2 LOW BOX/FILE LATERAL Includes options install of BLLBF Merging Top *General Guide | See Master Plan...
-
Page 3: Parts List
LOW BOX/FILE LATERAL PARTS LIST ITEM PRODUCT CODE CODE BLLBFV2 Low Box/File Lateral Corner Foot Handles GBLLT2 Laminate Merging Top... -
Page 4: Attach Handles
1 | SECURE FEET TO STORAGE AND FLIP Flip storage piece so it is laying on its back; secure foot to each corner using 4 wood screws. 2 | ATTACH HANDLES Using 2 bolts each, attach handles to front of drawers. - Page 5 OPTIONAL MERGING TOPPER PARTS LIST ITEM PRODUCT CODE CODE BLLBFV2 Low Bow/File Lateral BLLOSV2 Low Open Shelf Lateral GBLLT2 Laminate Merging Top...
- Page 6 1 | REMOVE DRAWERS FROM BLLBFV2 2 | REMOVE STORAGE TOP Locate the 6 cam locks across top edge on the inside of the storage piece. Then, use a screwdriver to turn cam locks counterclockwise to unlock. Carefully lift top from storage.
- Page 7 3 | CONNECT BRACKETS TO TOP PANEL Attached 12 corner brackets to top panel using wood screws in the places shown below. 4 | ATTACH TOP TO STORAGE Set storage side-by-side then align top panel so it is flush with sides, back and front of storage.
- Page 8 210.648.2095 | mycleardesign.com © 2021 Clear Design. All rights reserved.
