BLDLS

STORAGE–

SUPPORTED

WORKSTATION

LOW OPEN-SHELF LATERAL

LOW BOX/FILE LATERAL

MERGING TOP

Includes Add-Ons:

A1 | A2 | A3 | A4

General Installation Guide

Table of Contents

Need help?

Do you have a question about the BLDLS and is the answer not in the manual?

Questions and answers

Summary of Contents for CLEAR DESIGN BLDLS

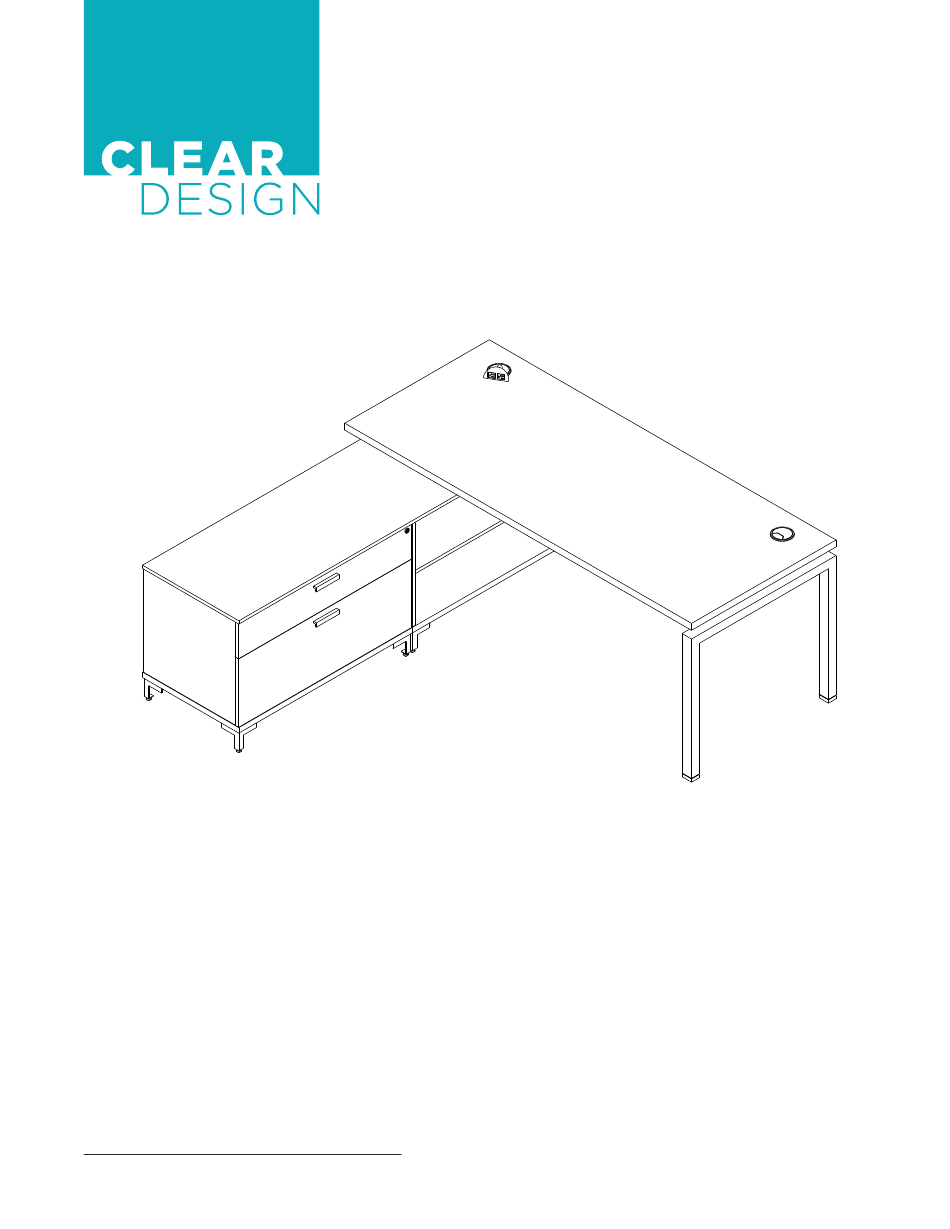

Page 1 BLDLS STORAGE– SUPPORTED WORKSTATION LOW OPEN-SHELF LATERAL LOW BOX/FILE LATERAL MERGING TOP Includes Add-Ons: A1 | A2 | A3 | A4 General Installation Guide...
Page 3: Table Of Contents
:: Low Open-Shelf Lateral .........1 BLLOSV2 :: Low Box/File Lateral ........9 GBLLT2 :: Merging Top ............13 BLDLS :: L-Shape with Storage ........19 ADD-ONS :: Surface-Mount Cable Management Tray ... 25 :: Modesty Panel ............. 29 :: Laminate Inset End Panels ........33...
Page 4: Bllbfv2 :: Low Open-Shelf Lateral
LOW OPEN-SHELF LATERAL OVERVIEW Storage-Supported Workstation All parts listed are for a single low open-shelf lateral; additional parts will be needed for additional low open-shelf laterals.
Page 5 PARTS LIST CODE DESCRIPTION Top Panel* Bottom Panel Fixed Shelf Panel BLLOSV2 End Panels Back Panel Corner Feet *If installing a merging topper, disregard top panel item.
Page 6 1 | SCREW CAM PINS INTO BOTTOM PANEL Requires 6 cam pins. Cam Pin 2 | INSERT HARDWARE INTO END PANELS Requires 4 wooden dowels, 4 cam locks, and 4 cam pins. Wooden Dowel Cam Lock Cam Pin...
Page 7 3 | INSERT HARDWARE INTO BACK PANEL Requires 2 cam pins and 8 cam locks. Cam Pin Cam Lock 4 | INSERT CAM LOCKS INTO FIXED SHELF Requires 6 cam locks. Cam Lock...
Page 8 5 | SECURE FIXED SHELF TO BACK PANEL Align the cam pins so they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place. Tighten Cams 6 | SECURE END PANELS If working with a surface 72” or longer, use 10 wood screws to install support bar under the surface.
Page 9 7 | SECURE BOTTOM PANEL Align the cam pins so they sit inside of open cam locks. Use a screwdriver to turn cam locks clockwise and lock into place. Tighten Cams 8 | SECURE TOP PANEL Note: DO NOT Install top panel if you are merging storage. Align the cam pins so that they sit inside of open cam locks.
Page 10 9 | SECURE FEET TO BOTTOM PANEL Attach corner feet to the bottom panel with 4 wood screws per foot.
Page 12: Bllosv2 :: Low Box/File Lateral
LOW BOX/FILE LATERAL OVERVIEW Storage-Supported Workstation All parts listed are for a single low box/file lateral; additional parts will be needed for additional low box/file laterals.
Page 13 PARTS LIST CODE DESCRIPTION Low Box/File Lateral BLLBFV2 Handles Corner Feet...
Page 14 1 | SECURE FEET TO STORAGE AND FLIP Flip storage piece so it is laying on its back; secure foot to each corner using 4 wood screws. 2 | ATTACH HANDLES Using 2 bolts each, attach handles to front of drawers.
Page 16: Gbllt2 :: Merging Top
MERGING TOP OVERVIEW Surface-Supported Workstation All parts listed are for a single merging top; additional parts will be needed for additional merging tops.
Page 17 PARTS LIST CODE DESCRIPTION BLLBFV2 Low Box/File Lateral BLLOSV2 Low Open-Shelf Lateral GBLLT2 Laminate Merging Top PLB.1 Laminate Storage L-Bracket WD.2 Wood Screws...
Page 18 1 | REMOVE DRAWERS FROM LOW BOX/FILE LATERAL 2 | REMOVE STORAGE TOP Locate the 6 cam locks across top edge on the inside of the storage piece. Then, use a screwdriver to turn cam locks counterclockwise to unlock. Carefully lift top from storage.
Page 19 3 | CONNECT BRACKETS TO TOP PANEL Attach 12 laminate storage L-brackets to inside of storage using wood screws in the places shown below. Top View 4 | ATTACH TOP TO STORAGE Set storage side-by-side then align top panel so it is flush with sides, back, and front of storage.
Page 20 5 | INSERT DRAWERS...
Page 22: Bldls :: L-Shape With Storage
L-SHAPE WITH STORAGE OVERVIEW Storage-Supported Workstation All parts listed are for a single L-Shape; additional parts will be needed for additional L-Shape configuration.
Page 23 PARTS LIST CODE DESCRIPTION BL24 or BLADE Leg BL30 GCNAB THREE60 Sleigh Leg* BASB72 Support Bar* GB3072 Laminate Surface BLSS Surface Stand Kit (set of 2) Merged Laminate Storage *Single leg can be a BLADE or THREE60 Sleigh Leg. THREE60 Sleigh Leg is used for 30”–...
Page 24 1 | SECURE LEG TO SURFACE Place assembled laminate storage into final position. Secure the BL24/BL30 leg to the surface. Insert wood screws through the leg bracket and into the underside of the surface. 2 | CONNECT SURFACE STAND TO MOUNTING BRACKET Measure, cut, and place double-sided tape on the bottom of the surface stands, leave paper backing on the side facing out.
Page 25 3 | ALIGN AND ATTACH BRACKETS TO SURFACE Align brackets with the edge of the outside of the surface, then measure 1.25” between the mounting bracket and front/back of the surface. Insert 4 wood screws per surface stand. ” 1.25 4 | FLIP AND ALIGN BRACKETS Flip surface assembly upright, place stands on laminate storage and align as desired.
Page 26 5 | DETACH BRACKET FROM STAND TO SECURE Remove bolts holding the stand and bracket together and carefully lift the surface assembly away from the mounting brackets. Mounting brackets should remain on the surface. Use wood screws to secure bracket. 6 | PLACE STAND ONTO BRACKET AND SECURE Check and tighten any bolts and pieces to finish.
Page 27 7 | INSTALL SUPPORT BAR If working with a 66” or 72” surface, use 10 wood screws to install support bar under the surface.
Page 28: A1: Surface-Mount Cable Management Tray
A1: SURFACE-MOUNT CABLE MANAGEMENT TRAY OVERVIEW Storage-Supported Workstation If worksations have power, refer to BL-8 BLADE power guide.
Page 29 PARTS LIST CODE DESCRIPTION Surface-Mount Cable Management Tray BHCT Wood Screws...
Page 30 1 | EXTEND CABLE TRAY TO DESIRED LENGTH Extension range: 25"–45".
Page 31 2 | ATTACH CABLE TRAY TO SURFACE Attach cable tray using wood screws.
Page 32: A2: Modesty Panel
A2: MODESTY PANEL OVERVIEW Storage-Supported Workstation All parts listed are for a single modesty panel; additional parts will be needed for additional modesty panels.
Page 33 PARTS LIST CODE DESCRIPTION Laminate Modesty Panel* GLMP## Machine Screws L-Brackets BMPBFB Wood Screws *For Steel Modesty Panel: components may vary, but process is similar.
Page 34 1 | SECURE BRACKETS TO MODESTY PANEL Connect the BMPBFB bracket to the modesty panel using screws. Secure tightly.
Page 35 2 | ATTACH MODESTY PANEL TO SURFACE Attach modesty panel to surface using wood screws provided with brackets. Panel will be center aligned and flushed with back of surface. NOTE: Smaller modesty panels will fit in between leg and lateral.
Page 36: A3: Laminate Inset End Panels
A3: LAMINATE INSET END PANELS OVERVIEW Storage-Supported Workstation All parts listed are for a single panel; additional parts will be needed for additional panels.
Page 37 PARTS LIST CODE DESCRIPTION End Panel T-Bracket LEPBL1 Self-Tapping Screws Wood Screws GBEP## Laminate Inset End Panel...
Page 38 1 | SECURE BRACKET TO END LEGS Attach 4 brackets to each BLADE end leg using the self-tapping screws. 1. Inset–The back of the bracket will align flush with edge of leg. 2. Flush–Back of bracket will be 9/16” from edge back edge of leg. Inset Bottom View Align Flush ”...
Page 39 2 | ATTACH END PANEL Slide end panels into place and adjust until flush with bracket. Use 2 wood screws to secure panel to each bracket.
Page 40: A4: Steel Inset End Panels
A4: STEEL INSET END PANELS OVERVIEW Storage-Supported Workstation All parts listed are for a single panel; additional parts will be needed for additional panels.
Page 41 PARTS LIST CODE DESCRIPTION Steel Inset End Panel BEP## Self-Tapping Screws...
Page 42 1 | SECURE PANELS TO END LEGS Slide the end panel into place and adjust until either flush with outside of leg or slightly recessed. Align Flush Slightly Recessed...
Page 43 2 | ATTACH END PANEL Use 4-6 self-tapping screws to secure panel to each leg.
