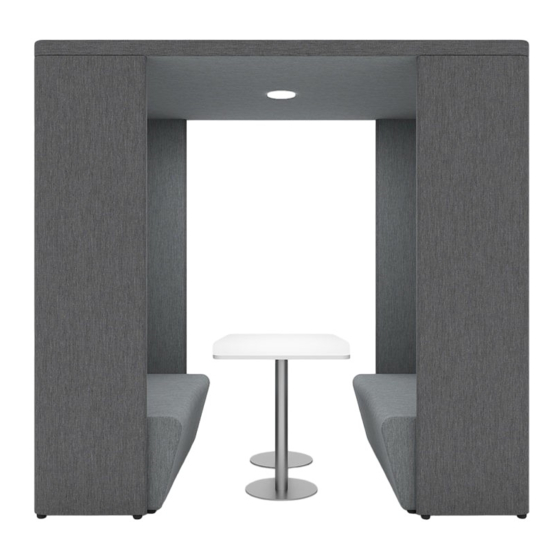

- Page 1 CV–3 COVE 4-PERSON MEETING POD *General Guide | See Master Plan Instructions in English and en Español...
- Page 3 1 | SECURE CONNECTING STEEL DOWELS TO PANELS ” Insert connecting steel dowel plate into the marking hole and insert four screws through the flat plate to secure. Repeat step for all 4 steel dowels. Inserte el extremo del soporte plano del levantador en el agujero marcado e inserte cuatro tornillos ”...
- Page 4 3 | SECURE PANELS Adjust panel bracket, attached to bottom of panel, so that the open end fits around the stand-alone bolt on the bottom of the adjacent panel. Ajuste el soporte del panel de modo que el extremo abierto encaje alrededor del tornillo en la parte inferior del panel.
- Page 5 5 | SECURE CONNECTING STEEL DOWELS TO TOP PANEL Insert connecting steel dowel plate into the marking hole on the bottom side of the ” top panel and insert four screws through the flat plate to secure. Repeat step for all 10 steel dowels.
- Page 6 7 | SECURE TOP PANEL Line up steel dowels so they are flush with the joint holes on the adjacent panel. Push against the outer walls of the booth until panels are flush. Alinee los levantadores para que estén al ras con los agujeros de unión en el panel adyacente. Empuje contra las paredes exteriores de el pod hasta que los paneles estén al ras.
- Page 7 9 | SECURE LEG TO TABLE Insert 4 screws through the pre-drilled holes of the table base into the bottom surface of the table. Inserte 4 tornillos a través de los agujeros pre-taladrados de la base de la mesa en la superficie inferior de la mesa.
