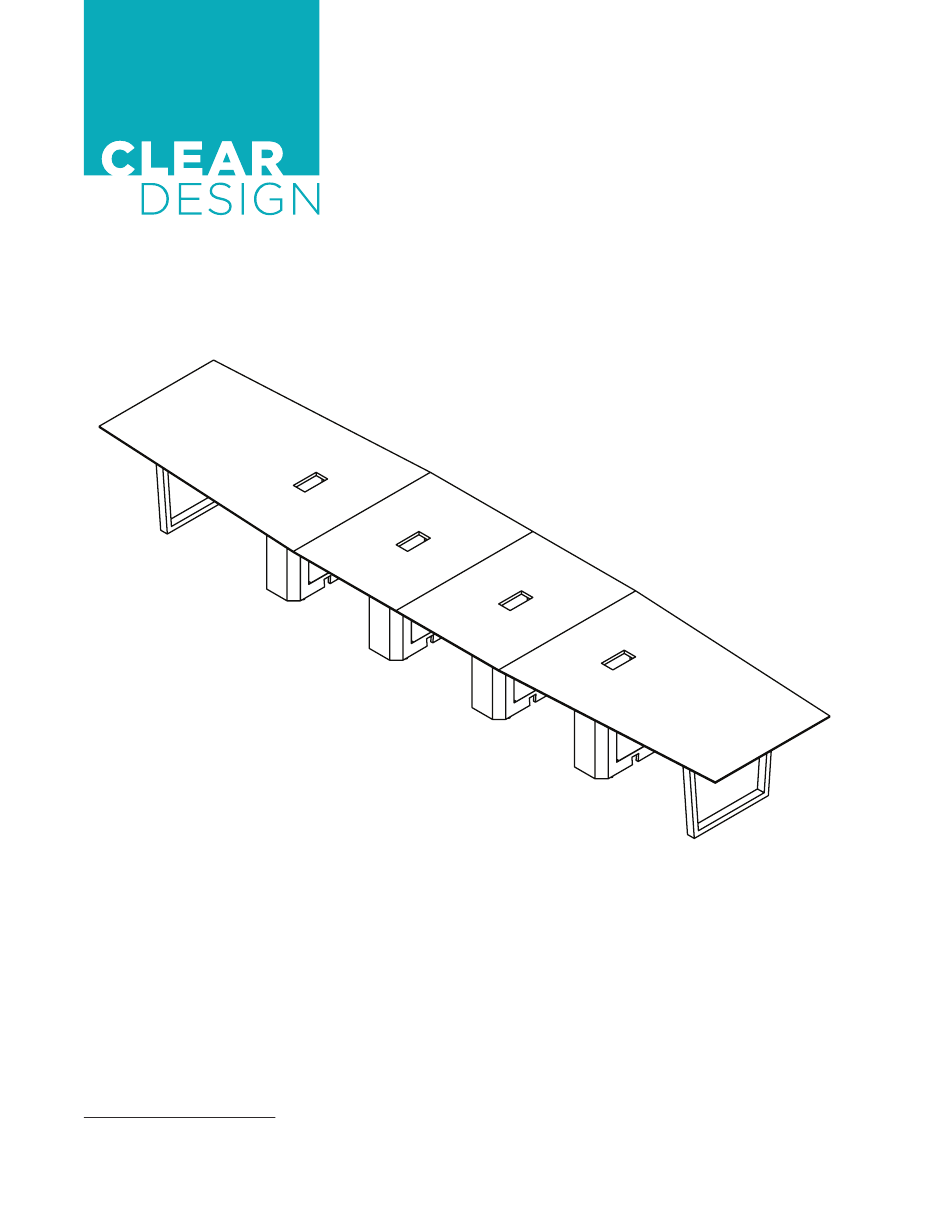

S1: SITTING HEIGHT OVERVIEW THREE60 Conference Table Quantities are for a 48” x 216” table, parts may vary depending on project, but install steps will remain the same.
Page 5
PARTS LIST CODE DESCRIPTION Angled Sleigh Leg GCNAB Trapezoid Surface CNS48144 In-Surface Grommet Center Grommet Spacers CNCGB In-Surface Grommet CNCBV2 Cabinet Base BFB1 Flat Bracket GCNABCOV* Covered Leg *If applicable.
Page 6
1 | PREPARE SURFACE AND MEASURE FOR LEGS Carefully place surface upside-down on floor, a cushioned area is preferred. Measure 12” from surface edge and center-align to determine leg placement. NOTE: Same process for square-ended table. 12” 2 | SECURE ANGLED SLEIGH LEGS Follow measurements and insert screws per leg through the metal plate and into the laminate surface.
Page 7
3 | MEASURE FOR CABINET BASE OR COVERED LEG Place cabinet base, or covered leg, centered under the table grommet cutouts. 5.91" 9.45" 9.45" 5.12"...
Page 8
4 | INSTALL CABINET BASE OR COVERED LEG Insert 4 screws per base through the laminate top into the bottom of the surface. 5 | ATTACH HARDWARE TO SURFACE EDGE Insert 2 wooden dowels, attach 2 flat brackets, and connect 4 sets of joint fasteners to one side of each surface edge.
Page 9
6 | FLIP AND ASSEMBLE Flip each piece over so that it is standing on a leg/cabinet base. Align the open holes on the surface edge with the wooden dowels and the threaded rods on the other surface edge. 7 | FULLY SECURE HARDWARE Turn to Tighten 1.
Page 12
S2: STANDING HEIGHT OVERVIEW THREE60 Conference Table All parts listed are for a single standing height table; additional parts will be needed for additional standing height table.
Page 13
PARTS LIST CODE DESCRIPTION Standing Height Angled GCNABSH Sleigh Leg Main Surface CNS4896 In-Surface Grommet GCNABSHLE Support Brace BFB1 Flat Brackets...
Page 14
1 | PREPARE SURFACE Carefully place surface upside-down on floor, a cushioned area is preferred. Measure 12” from surface edge and center-align to determine leg placement. Attach 2 flat brackets on the center seam of the table. NOTE: Leg placement may need to be adjusted based on surface size. 12”...
Page 15
3 | INSTALL SUPPORT BRACE 4 | FLIP AND INSERT GROMMET Insert wire management grommet. Note: See page 13 for optional covered sleigh leg. See page 15 for power module install.
Page 16
OPTIONAL COVERED SLEIGH LEG All steps for installation are the same. However, leg will be aligned with the grommet cutout on the table. NOTE: Covered sleigh leg is optional for wire management. 9.45" 5.12"...
Page 18
S3: OPTIONAL POWER OVERVIEW THREE60 Conference Table...
Page 19
PARTS LIST CODE DESCRIPTION BPCONF2V2 In-Surface Power Module or BPCONF3 J-Clips VB24 Cable Vertebrae...
Page 20
1 | ATTACH METAL CLIPS AND INSERT INTO SURFACE Attach 2 metal clips to the back of the module base then insert into the pre-cut holes in the surface.
Page 21
2 | SECURE MODULE INTO PLACE Insert the plastic clamps into the holes on the bottom of the module. Rotate and then push against the surface to clamp the module into place. 2. Rotate 3. Push 1. Clamp...
Page 22
3 | OPTIONAL POWER VERTEBRAE Attach the vertebrae to the underside of the top panel. Insert wood screws through the top bracket and into the laminate panel. NOTE: Power vertebrae will be mounted adjacent to the power module.
