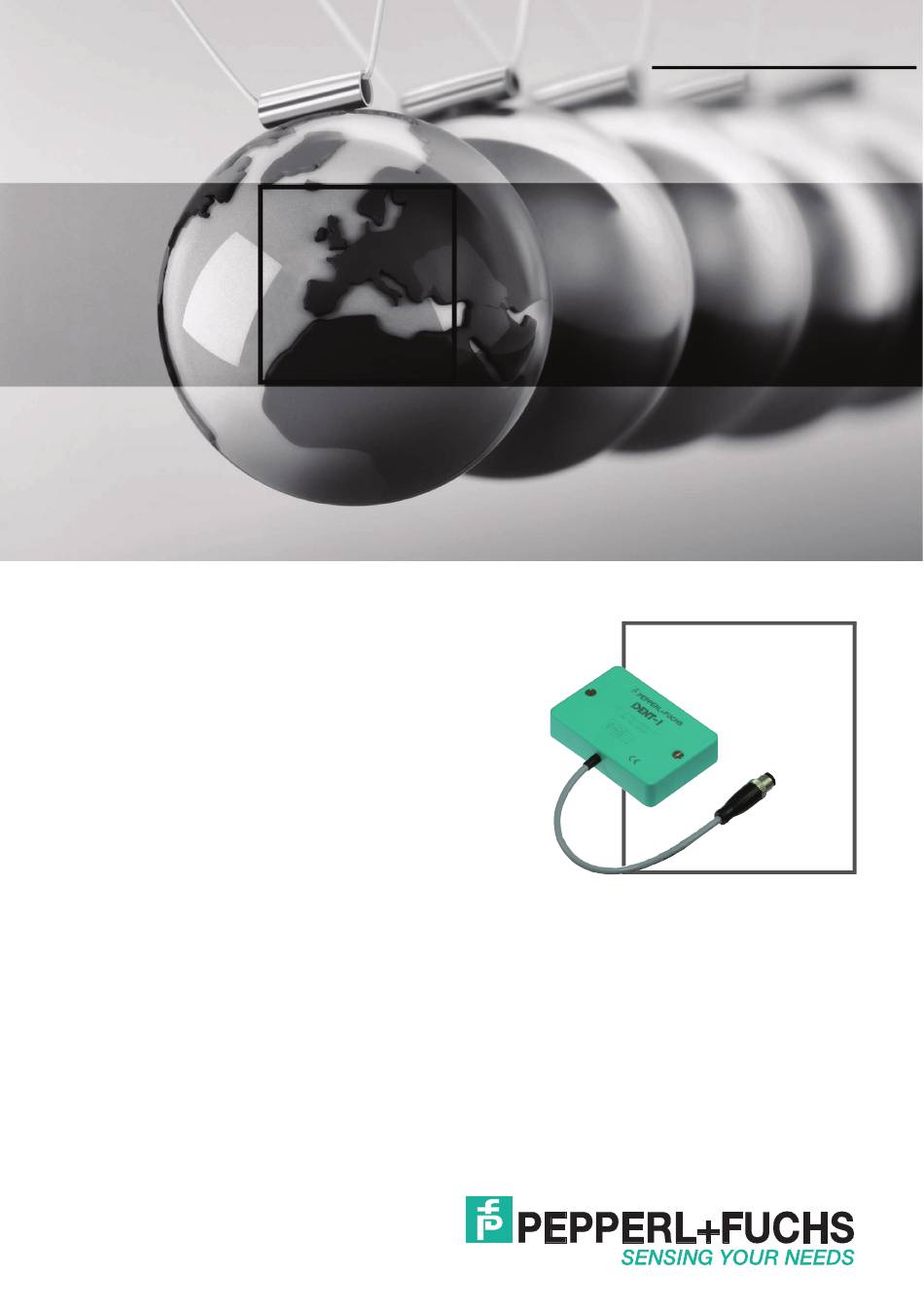

- Page 1 FACTORY AUTOMATION MANUAL IQT-F116-R4M-V1 Read/write station (13,56 MHz)
- Page 2 IQT-F116-R4M-V1 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation...
-
Page 3: Table Of Contents
IQT-F116-R4M-V1 Contents 1 Introduction................. 4 2 Safety ................... 5 Symbols relevant to safety ................5 Intended use ....................5 General notes on safety.................5 3 Product description ............7 4 Installation................8 Storage and transport ...................8 Unpacking.....................8 Assembly and connection of the read /write station ........8 5 Operation................ -
Page 4: Introduction
Introduction Introduction Congratulations You have chosen a device manufactured by Pepperl+Fuchs. Pepperl+Fuchs develops, produces and distributes electronic sensors and interface modules for the market of automation technology on a worldwide scale. Before you install this device and put it into operation, please read the operating instructions thoroughly. -
Page 5: Safety
If serious faults occur, stop using the device. Secure the device against inadvertent operation. In the event of repairs, return the device to your local Pepperl+Fuchs representative or sales office. The connection of the device and maintenance work when live may only be carried out by a qualified electrical specialist. - Page 6 IQT-F116-R4M-V1 Safety Note! Disposal Electronic waste is hazardous waste. When disposing of the equipment, observe the current statutory requirements in the respective country of use, as well as local regulations.
-
Page 7: Product Description

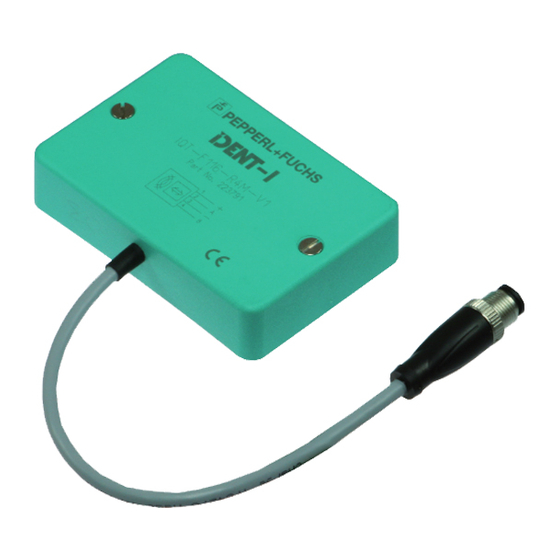

IQT-F116-R4M-V1 Product description Product description This product is a read/write station with serial interface RS485. The read/write station reads and writes at a frequency of 13,56 MHz. The device is characterised particularly by its flat design with cable outlet and integrated M12-plug. The housing is resistant to welding bead formation, so that the write/read station can be used in a welding area. -
Page 8: Installation
■ Retain the original packaging in case you have to store or ship the device again at a later date. Should you have any questions, please contact Pepperl+Fuchs. Assembly and connection of the read /write station Note! Do not install that the read/write station directly onto metallic surfaces. Keep a minimum distance of 50 mm around the equipment to metal. -
Page 9: Operation
Tag types 13.56 MHz The purpose of this data carrier type is to read the UID (fix code) of all data carriers supported by Pepperl+Fuchs that conform with ISO 15693. Command overview The commands in the list are described in detail on the following pages. -
Page 10: System Commands
IQT-F116-R4M-V1 Operation Standard read/write commands Read data Command Abbre- description viation Page single read words See "single read words SR" on page 12 enhanced buffered See "enhanced buffered read words ER" on page 12 read words Write data Command Abbre-... - Page 11 IQT-F116-R4M-V1 Operation set device address SD This command changes the DeviceNo in multidrop mode from <OldDeviceNo> to <NewDeviceNo>. The default device adress is "01". Command: SD <OldDeviceNo> <NewDeviceNo> <CHCK> <ETX> Response: <Status> <DeviceNo> <CHCK> <ETX> get device address GA This command reads the DeviceNo of a station. For reading the DeviceNo of a station only one single station must be connected to the RS485 interface.
-
Page 12: Read/Write Commands
IQT-F116-R4M-V1 Operation reset RS This command sets the changed system settings, e.g. timeout and baud rate, newly loaded from the non-volatile memory. Command: RS <DeviceNo> <CHCK> <ETX> Response: "2" <DeviceNo> <CHCK> <ETX> configuration store CS If <Param> = “1”, the next command entered in this setting is stored in the non- volatile memory. - Page 13 IQT-F116-R4M-V1 Operation single write words SW One attempt is made to write <WordNum> 32-bit words from the address <WordAddr>. Command: SW <DeviceNo> <WordAddr> <WordNum> <Data> <CHCK> <ETX> Response: <Status> <DeviceNo> <CHCK> <ETX> enhanced buffered write words EW An attempt is made until successful, to write <WordNum> 32-bit words to the address <WordAddr>.
-
Page 14: Legend
IQT-F116-R4M-V1 Operation Legend <CHCK>: 1 ASCII character, 8-bit checksum with the addition of all preceding characters, without overrun <Data>: <WordNum> times 4 bytes, a fixcode will always return exacty 8 bytes <DeviceNo>: Read head number 2 ASCII characters, range from "01" to "1E"... -
Page 15: Technical Specification
IQT-F116-R4M-V1 Technical specification Technical specification General specifications Operating frequency 13.56 MHz Transfer rate 26 kBit/s Sensing range Read distance 0 ... 130 mm Write distance 0 ... 130 mm Width max. 100 mm UL File Number E87056 Electrical specifications Rated operational 17.5 ... - Page 16 IQT-F116-R4M-V1 Technical specification Housing Encapsulation WEVO 403FL/300 compound Mass approx. 100 g Cable length 20 cm Dimensions 48.2...
- Page 17 IQT-F116-R4M-V1 Technical specification...
- Page 18 Twinsburg, Ohio 44087 · USA Tel. +1 330 4253555 E-mail: sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd. Company Registration No. 199003130E Singapore 139942 Tel. +65 67799091 E-mail: sales@sg.pepperl-fuchs.com www.pepperl-fuchs.com TDOCT1978B_ENG Subject to modifications Copyright PEPPERL+FUCHS • Printed in Germany 02/2012...
