3.2

Correction Factors

PSIG
Correction Factor 0.65
How to size the carbon tower capacity for actual conditions: How to select the carbon tower for actual conditions:
ADJUSTED CAPACITY =
Standard Flow Rate x Correction Factor
Example:
Dryer Model: CLEARPOINT® V 250
Standard Flow Rate: 250 scfm
Operating Conditions: 110 psig
ADJUSTED CAPACITY = 250 scfm x 1.12 = 280 scfm

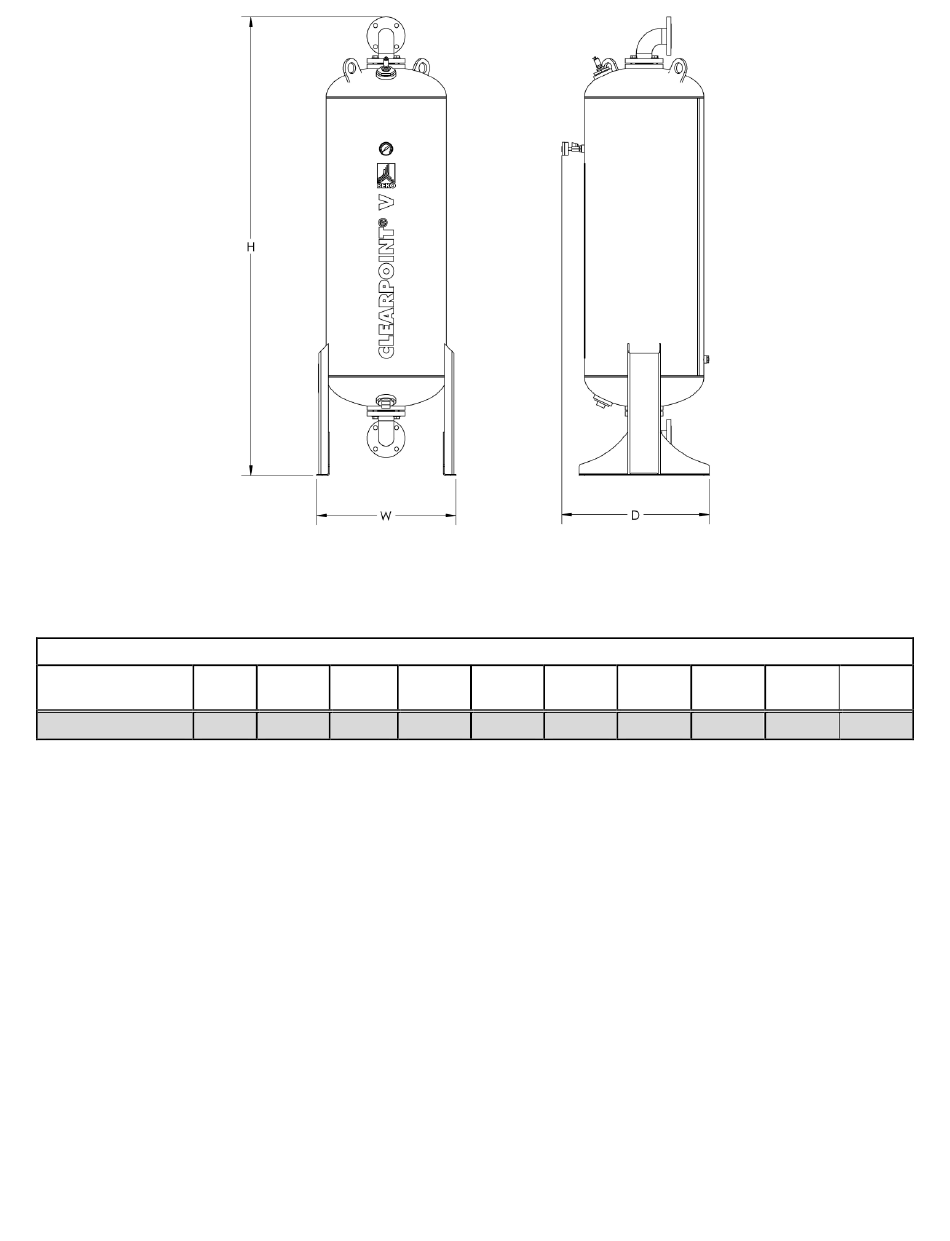

CLEARPOINT® V Series Activated Carbon Tower
60 70 80
PSIG PSIG
0.74 0.83
Operating Pressure
Correction Factors
90 100 110
PSIG PSIG PSIG
0.91 1.00 1.12
ADJUSTED CAPACITY =
System Flow Rate ÷ Correction Factor
Example:
System Flow Rate:
Operating Conditions: 130 psig
ADJUSTED CAPACITY = 300 scfm ÷ 1.20 = 250 scfm
Select Model:
(Rev. B)
120 130 140
PSIG PSIG PSIG
1.16 1.20 1.25
300 scfm
CLEARPOINT® V 250
150
PSIG
1.29
7
