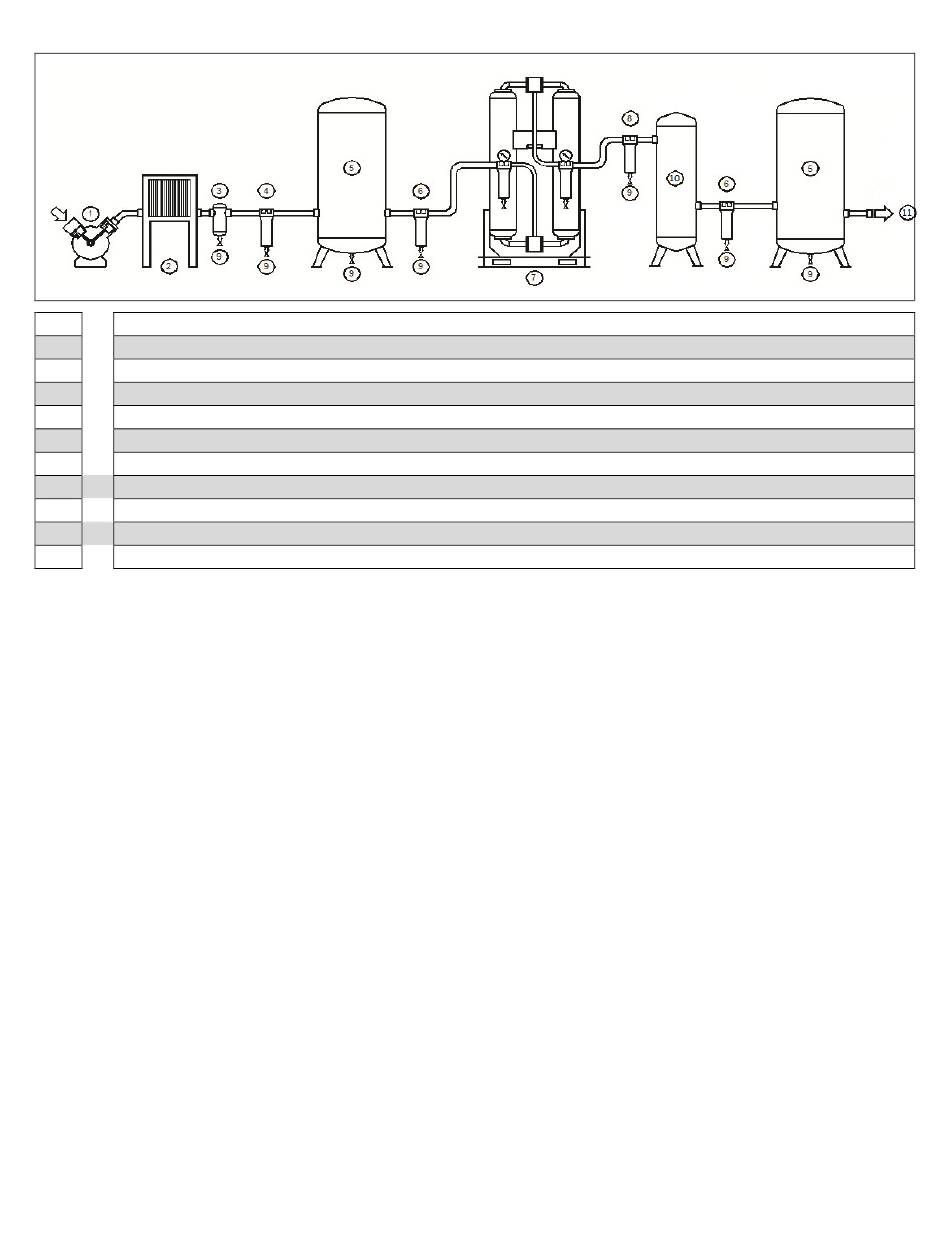

Optimal Installation Diagram
1
Air Compressor
2
After Cooler
3
CLEARPOINT® Inline Water Separator
4
CLEARPOINT® 5.0 Micron (Grade G) Filtration
5
Receiver Tank
6
CLEARPOINT® 1.0 Micron (Grade F) Filtration
7
DRYPOINT® XCp Desiccant Dryer (shown with CLEARPOINT® Pre and Post-filtration)
8
CLEARPOINT® 0.01 Micron (Grade F) Filtration
9
Condensate Drainage Points for BEKOMAT®
10
CLEARPOINT® V Activated Carbon Tower
11
Dry Air Outlet
Optimal installation is with moderately sized receivers at the inlet and outlet side of the dryer and carbon tower. This
allows for the additional free cooling and moisture collection and more consistent dryer inlet flow provided by an
upstream receiver, while providing the most reliable shop air supply due to the downstream receiver.
Under no circumstances should the peak demand air flow exceed the maximum rated air flow of the each system
component.
CLEARPOINT® V Series Activated Carbon Tower
(Rev. B)
