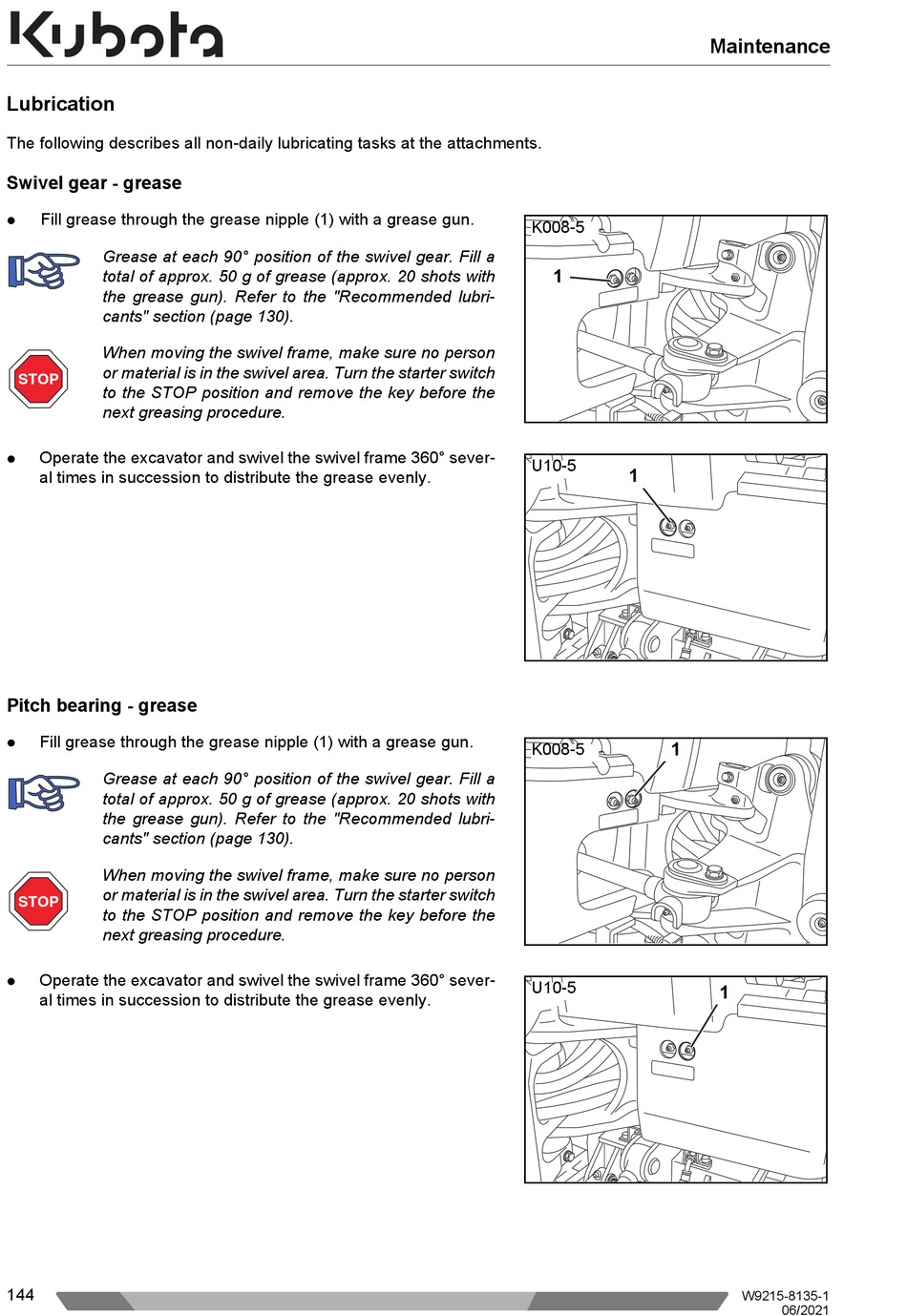

Lubrication
The following describes all non-daily lubricating tasks at the attachments.
Swivel gear - grease
Fill grease through the grease nipple (1) with a grease gun.
Grease at each 90° position of the swivel gear. Fill a
total of approx. 50 g of grease (approx. 20 shots with
the grease gun). Refer to the "Recommended lubri-
cants" section (page 130).
When moving the swivel frame, make sure no person
or material is in the swivel area. Turn the starter switch
STOP
to the STOP position and remove the key before the
next greasing procedure.
Operate the excavator and swivel the swivel frame 360° sever-
al times in succession to distribute the grease evenly.
Pitch bearing - grease
Fill grease through the grease nipple (1) with a grease gun.
Grease at each 90° position of the swivel gear. Fill a
total of approx. 50 g of grease (approx. 20 shots with
the grease gun). Refer to the "Recommended lubri-
cants" section (page 130).
When moving the swivel frame, make sure no person
or material is in the swivel area. Turn the starter switch
STOP
to the STOP position and remove the key before the
next greasing procedure.
Operate the excavator and swivel the swivel frame 360° sever-
al times in succession to distribute the grease evenly.
144
K008-5
1
U10-5
1
K008-5
1
U10-5
Maintenance
1
W9215-8135-1
06/2021
