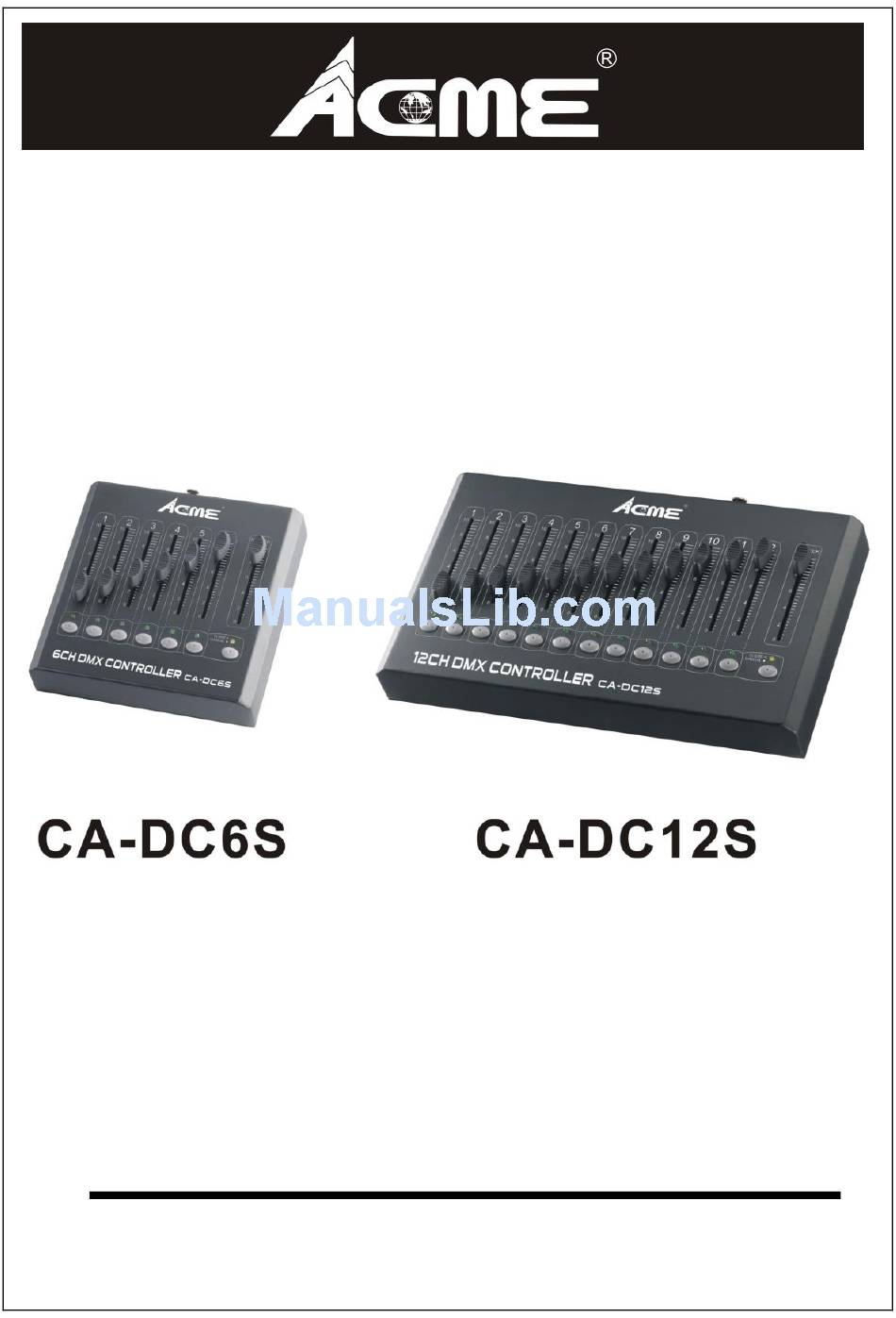

- Page 1 DMX CONTROLLER User Guide Please read these instructions carefully before using...
-
Page 3: Table Of Contents
CONTENTS 1. Features ......................3 2. General Instruction ..................4 3. Overview ......................5 3.1 Front View ..................... 5 3.2 Rear View ....................6 4. Operation Guide ..................... 6 4.0 SCENE/MANUALButton………………………………………………..…6 4.1 Master Slider ..................6 4.2 Faders (1-6) ..................7 4.3 Flash Button (1-6) ................. -
Page 4: Features
1. Features CA-DC6S 1. 6 individual channel faders & one master fader 2. 6 DMX channels, 6 scenes programmable 3. Individual scene/channel FLASH button 4. Compact design & simple operation CA-DC12S 1. 12 individual channel faders & one master fader 2. -
Page 5: General Instruction
2. General Instruction Please read the user manual carefully, as it includes important information regarding details of operation, maintenance, and technical data. Keep this manual with the unit for future consultation. WARNINGS！ Avoid any inflammable liquids, water or metal objects entering the unit. ... -
Page 6: Overview

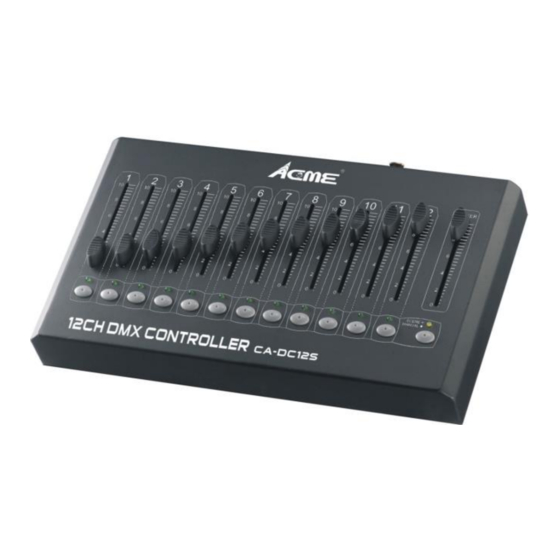

3. Overview 3.1 Front View... -
Page 7: Rear View
1. FADERS 1-6/1-12 Control Channel and scene output 2. FLASHS 1-6/1-12 Channel FLASH and scene FLASH function 3. MASTER SLIDER Control all channel output 4. SCENE/MANUAL Mode select 3.2 Rear View 1. POWER SWITCH Turn on/off the power 2. POWER IN DC 9-12V input 3. -
Page 8: Faders (1-6)
value of the scene. Faders (1-6/1-12) These 6/12 faders provide direct control over the corresponding dimmers, and thus the intensity for any connected luminaries. Flash Button (1-6/1-12) At the MANUAL mode, these 6/12 FLASH button can make the corresponding output channel to its maximum. At the SCENE mode, if the position of the corresponding FADER at its bottom, the scenes can be open or shut up by pressing the corresponding FLASH button. -
Page 9: Run The Scenes
store. After you press the button, all the light will blink for three times, that means you have stored the scenes successfully. Repeat the steps; you can save all the 6/12 scenes. (At the SCENE mode or hold the SCENE /MANUAL button the corresponding LED indicator above the saved scenes will light up. - Page 10 Technical Specification Power Input ....…………………………..…... DC 9-12V MIN.300mA DMX Output .........……………..3 pin female XLR 177 x 175 x 55mm Dimensions CA-DC6S...………………..……. 307 x 175 x 55mm CA-DC12S...………………..…… Weight CA-DC6S ....…......... 0.8 kgs CA-DC12S ....…........ 1.2 kgs...
