GENERAL
Installation of the kettle must be accomplished by
qualified installation personnel working to all applicable
local and national codes. Improper installation of
product could cause injury or damage.
This unit is built to comply with applicable standards for
manufacturers. Included among those approval
agencies are: UL, NSF, ASME/Ntl.Bd., CSA, ETL, CE,
and others. Many local codes exist, and it is the
responsibility of the owner/installer to comply with these
codes.
INSPECTION
Before uncrating, visually inspect the unit for evidence
of damage during shipping. If damage is noticed, do
not unpack the unit, follow shipping damage
instructions.
SHIPPING DAMAGE
INSTRUCTIONS
If shipping damage to the unit is discovered or
suspected, observe the following guidelines in
preparing a shipping damage claim.
1. Write down a description of the damage or the
reason for suspecting damage as soon as it is
discovered. This will help in filling out the claim
forms later. If possible, take a polaroid picture.
2. As soon as damage is discovered or
suspected, notify the carrier that delivered the
shipment.
3. Arrange for the carrier's representative to
examine the damage.
4. Fill out all carrier claims forms and have the
examining carrier sign and date each form.

CLEARANCE REQUIREMENTS

This unit must be installed in accordance with the
clearances shown on the rating label which is adhered
to the unit.
FOR YOUR SAFETY. Keep the appliance area free and
clear of combustible materials.

INSTALLATION

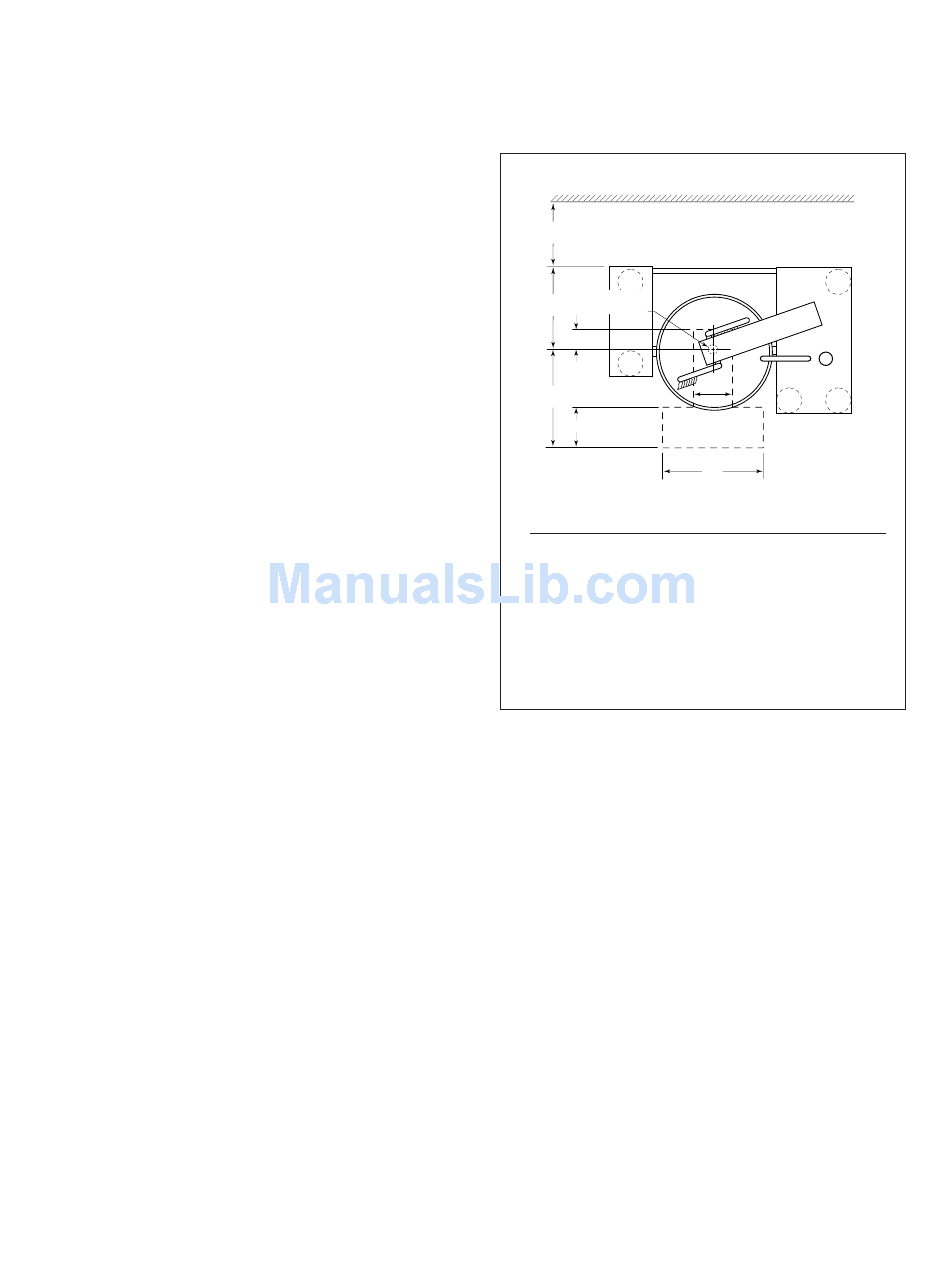

RECOMMENDED FLOOR
DRAIN LOCATION
WALL
18" CLEARANCE REQUIRED FOR SERVICE
DRAW-OFF
A
VALVE
6"
B
12"
(T) MKDL-40-T(-CC)
(T) MKDL-60-T(-CC)
(T) MKDL-80-T(-CC)
(T) MKDL-100-T(-CC) 21 3/4"
(T) MKDL-125-T(-CC) 21 3/4"
(T) MKDL-150-T(-CC) 21 3/4"

Recommended Floor Drain Location

12"
C
A B C
22 1/8" 51" 31"
22 1/8" 53" 31"
22 1/8" 58" 31"
61" 31"
65" 31"
68" 31"
