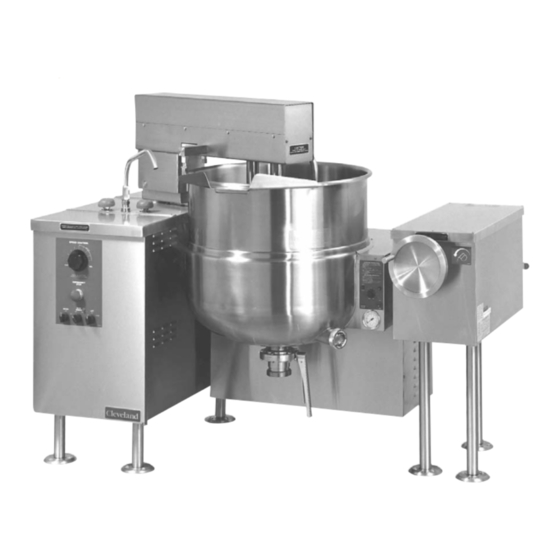

Cleveland MKGL-40-T Specifications

™
Cleveland
MIXER KETTLES
MIXER KETTLES, GAS-FIRED
VERTICAL AGITATOR
TILTING, 2/3 STEAM JACKETED
Cleveland Standard Features
I
High Efficiency (65%) Forced Air Double Pass Heating
System. 140M BTU on 40 gallons, 190M BTU on 60 and
80 gallons
I
Automatic Ignition System and 50 psi Steam Jacket Rating
I
Insulated Heat Exchanger
I
Type 304 Stainless Steel with #4 finish on kettle and supports
I
Enclosed, Balanced 10 gauge Stainless Steel hydraulically
operated mixer-bridge
I
Steam Jacket permanently filled with treated distilled water
I
Recessed, front-mounted Pressure/Vacuum Gauge
I
Solid-State, precise temperature controls with less than 1˚ C
temperature differences. LED indicator for Heat Cycle and
Low Water Indicator, Power On/Off Switch
I
Infinitely Variable Ratio Control between Scraper and Agitator.
Agitator rotates from 0 to 8 times the speed of the Scraper.
Infinitely Variable Scraper Speed Controls from
0 to 45 RPM
I
3-horsepower hydraulic powered Agitator, Scraper and Bridge
Lift. Nylon Scraper Blades removable without tools
I
3˝ diameter Quick Opening Butterfly Valve
I
Tilt Mechanism of roller bearings and case hardened
self-locking machined worm and segment gear
I
Standard for natural gas operation, standard voltage is
120/208-240, 3 phase
I
Level adjustable flanged feet, Gallon markings on
Scraper Shaft
I
Typical approvals include AGA, CSA, CE, NSF and ASME
Options & Accessories
Ë 316 Stainless Steel Interior Liner. (316G)
Ë 3˝ Air Operated Flush Piston Valve. (FPVA3)
(for use with a food pump, replaces 3˝ butterfly valve)
(requires air compressor)
Ë Hot & Cold Water Faucet. (DPK)
Ë Water Meters (GMC1 or LMC1)
Ë Two-Piece Lift-Off Covers. (MTP)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: MKGL-40-T
MKGL-60-T
Short Form Specifications
Cleveland Gas-Fired Tilting Vertical Mixer Kettle. MKGL-___T ___
gallons, 2/3 steam jacketed, 65% efficient forced air double pass
heating system, 50 psi steam jacket rating, automatic ignition,
solid-state splash-proof controls, 3˝ Diameter Butterfly Valve.
Ë Product Time / Temperature Controls & Indicator. (DTCI)
Ë Pan Carriers (PCK), Food Strainers. (FS)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Tri-Basket Strainer Support Systems. (TBS)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
MKGL-80-T
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
XI
SECT. PAGE
21
0707
