Operator's Manual
™
Cleveland

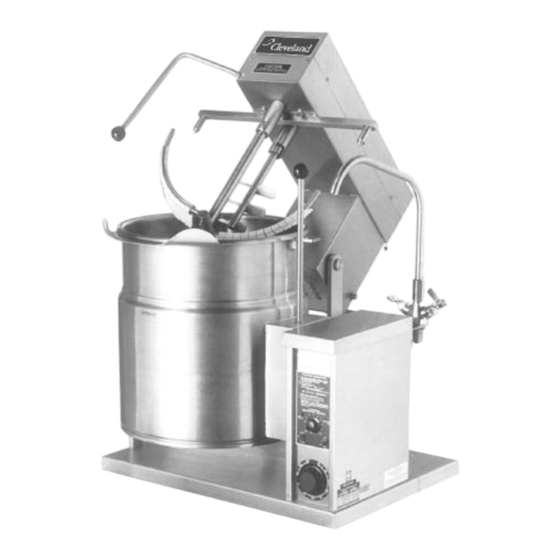

MIXER KETTLES
MIXER KETTLE, ELECTRIC
TABLE TYPE, TILTING
2/3 JACKETED
Cleveland Standard Features
I Solid State temperature Control (±1°F) for perfect
simmering
I Solid State Low Water Safety Control
I Steam jacket filled with treated water, venting and/or refilling is
not required
I 50 psi safety valve mounted under kettle to avoid
tampering
I No water gauge required
I Rear mounted Pressure/Vacuum Gauge and Pressure Relief
Valve protected by Stainless Steel Bracket
I Infinitely variable speed for all conditions; scraper from 0-70
rpm, agitator from 0-210 rpm
I Removable (without tools) Nylon Blades scrape entire
jacketed surface
I 3/4 horse power D.C. Timing Belt Drive
I Safety Device prevents High Speed Starts
I Mixing stops when bridge is lifted
I Agitator and Scraper are bayonet mounted for easy removal
I Enclosed, balanced, 10 Gauge Stainless Steel Mixer Bridge
I Kettle and all exterior surfaces are Stainless Steel
I Large Pouring Lip
I Gallon Markers on Scraper Shaft
I Standard 120/208-240 volts, 60 Hz, 3 phase, 4 wire
I Typical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
Ë Support Stand with Drain Drawer (ST28)
Ë Cover (MTP12)
Ë Double or Single Pantry Faucet (DPK or SPK)
Ë Faucet Bracket (FBKT)
Ë Food Strainer (FS-12)
Ë Flow Diverter (F-D)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
Tel: 1-216-481-4900
Fax: 1-216-481-3782
MODELS:
Short Form Specifications
Shall be CLEVELAND, Model MKET-12-T, Table Type Tilting, 12 Gallon,
Electric Mixer Kettle with permanently filled steam jacket, 50 psi jacket rat-
ing and safety valve, Solid State Temperature (±1°F) and Low Water Safety
Controls, rear mounted Combination Pressure/Vacuum Gauge, infinitely vari-
able speed, 3/4 H.P. Timing Belt Drive, bayonet mounted Agitator and
Scraper with removable blades, safety device prevents high speed starts,
mixing stops when bridge is lifted. Kettle and all exterior surfaces are
Stainless Steel.
Ë Type 316 Stainless Steel Kettle Interior for high acid food
products (316-12G)
Ë Water Meter (GMF or LMF) Wall Mounted or on Stand (SWM)
Ë High Wattages (HW) and Special Voltages (VOS)
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
MKET-12-T
XI
1
SECT.
PAGE
0707
