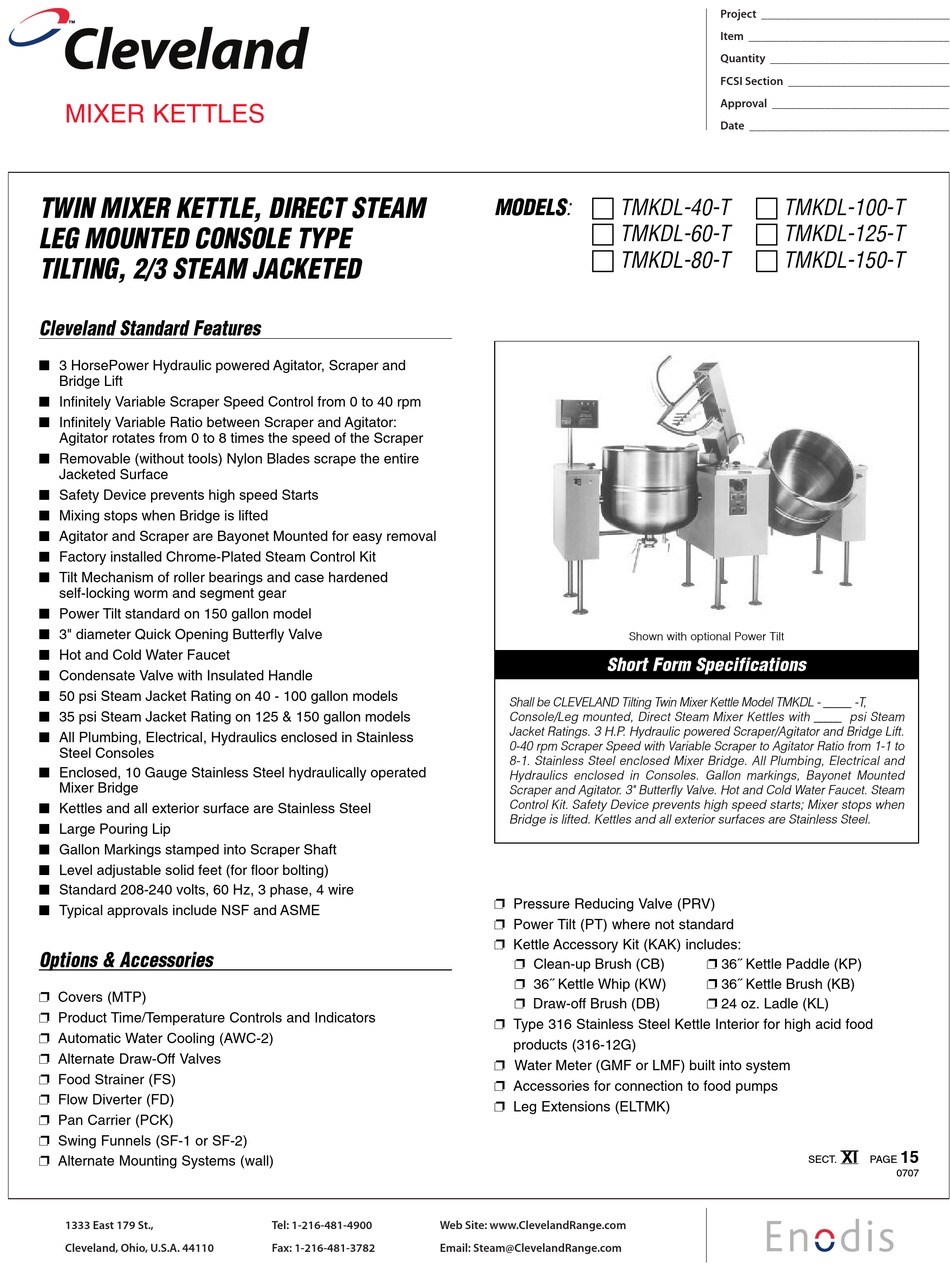

Cleveland TMKDL-100-T Specifications

™
Cleveland
MIXER KETTLES
TWIN MIXER KETTLE, DIRECT STEAM
LEG MOUNTED CONSOLE TYPE
TILTING, 2/3 STEAM JACKETED
Cleveland Standard Features
I 3 HorsePower Hydraulic powered Agitator, Scraper and
Bridge Lift
I Infinitely Variable Scraper Speed Control from 0 to 40 rpm
I Infinitely Variable Ratio between Scraper and Agitator:
Agitator rotates from 0 to 8 times the speed of the Scraper
I Removable (without tools) Nylon Blades scrape the entire
Jacketed Surface
I Safety Device prevents high speed Starts
I Mixing stops when Bridge is lifted
I Agitator and Scraper are Bayonet Mounted for easy removal
I Factory installed Chrome-Plated Steam Control Kit
I Tilt Mechanism of roller bearings and case hardened
self-locking worm and segment gear
I Power Tilt standard on 150 gallon model
I 3" diameter Quick Opening Butterfly Valve
I Hot and Cold Water Faucet
I Condensate Valve with Insulated Handle
I 50 psi Steam Jacket Rating on 40 - 100 gallon models
I 35 psi Steam Jacket Rating on 125 & 150 gallon models
I All Plumbing, Electrical, Hydraulics enclosed in Stainless
Steel Consoles
I Enclosed, 10 Gauge Stainless Steel hydraulically operated
Mixer Bridge
I Kettles and all exterior surface are Stainless Steel
I Large Pouring Lip
I Gallon Markings stamped into Scraper Shaft
I Level adjustable solid feet (for floor bolting)
I Standard 208-240 volts, 60 Hz, 3 phase, 4 wire
I Typical approvals include NSF and ASME
Options & Accessories
Ë Covers (MTP)
Ë Product Time/Temperature Controls and Indicators
Ë Automatic Water Cooling (AWC-2)
Ë Alternate Draw-Off Valves
Ë Food Strainer (FS)
Ë Flow Diverter (FD)
Ë Pan Carrier (PCK)
Ë Swing Funnels (SF-1 or SF-2)
Ë Alternate Mounting Systems (wall)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: TMKDL-40-T
TMKDL-60-T
TMKDL-80-T
Shown with optional Power Tilt
Short Form Specifications
Shall be CLEVELAND Tilting Twin Mixer Kettle Model TMKDL - _____ -T,
Console/Leg mounted, Direct Steam Mixer Kettles with _____ psi Steam
Jacket Ratings. 3 H.P. Hydraulic powered Scraper/Agitator and Bridge Lift.
0-40 rpm Scraper Speed with Variable Scraper to Agitator Ratio from 1-1 to
8-1. Stainless Steel enclosed Mixer Bridge. All Plumbing, Electrical and
Hydraulics enclosed in Consoles. Gallon markings, Bayonet Mounted
Scraper and Agitator. 3" Butterfly Valve. Hot and Cold Water Faucet. Steam
Control Kit. Safety Device prevents high speed starts; Mixer stops when
Bridge is lifted. Kettles and all exterior surfaces are Stainless Steel.
Ë Pressure Reducing Valve (PRV)
Ë Power Tilt (PT) where not standard
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Type 316 Stainless Steel Kettle Interior for high acid food
products (316-12G)
Ë Water Meter (GMF or LMF) built into system
Ë Accessories for connection to food pumps
Ë Leg Extensions (ELTMK)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
TMKDL-100-T
TMKDL-125-T
TMKDL-150-T
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
XI
SECT. PAGE
15
0707
