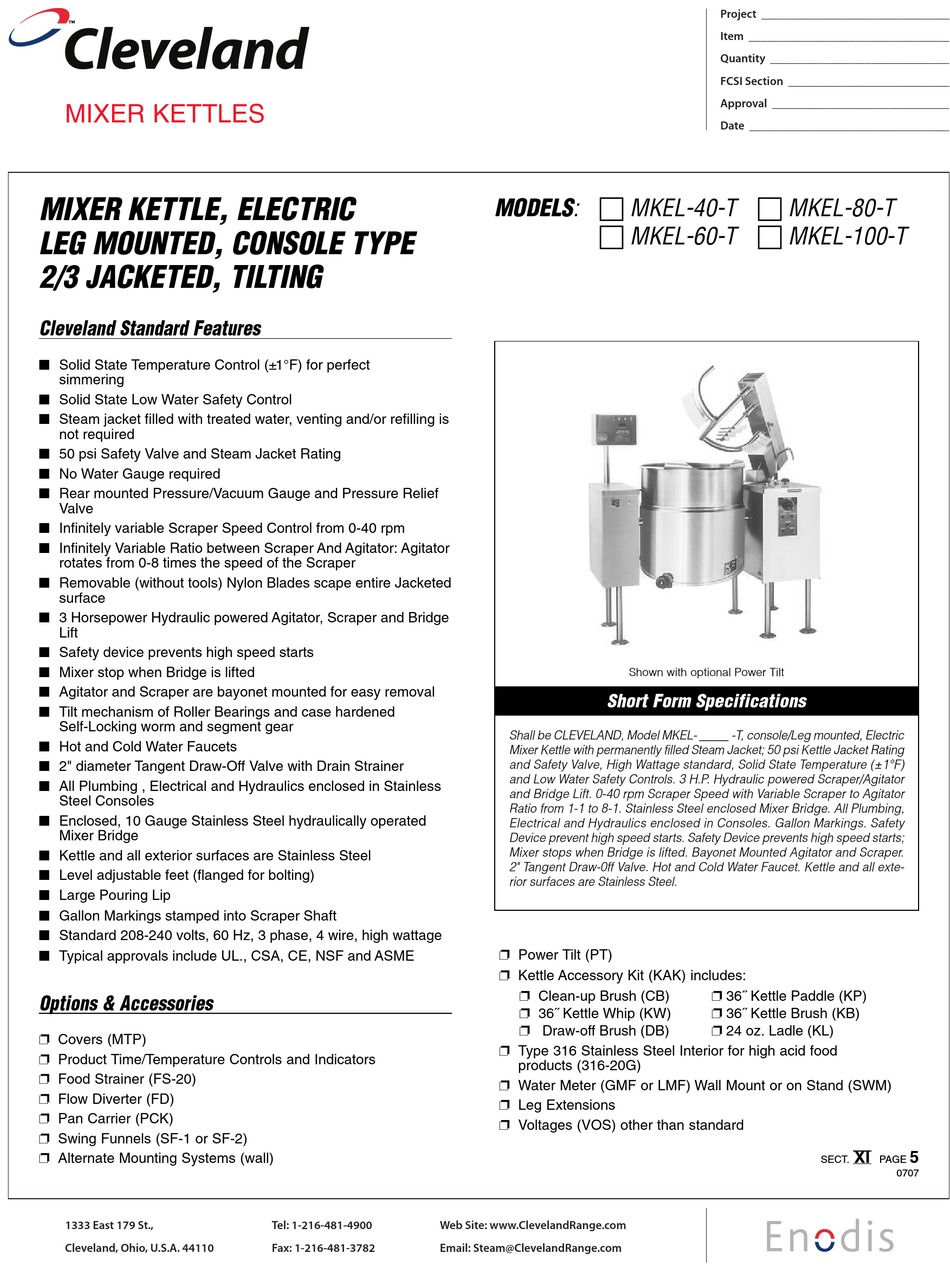

Cleveland MKEL-100-T Specifications

™
Cleveland
MIXER KETTLES
MIXER KETTLE, ELECTRIC
LEG MOUNTED, CONSOLE TYPE
2/3 JACKETED, TILTING
Cleveland Standard Features
I Solid State Temperature Control (±1°F) for perfect
simmering
I Solid State Low Water Safety Control
I Steam jacket filled with treated water, venting and/or refilling is
not required
I 50 psi Safety Valve and Steam Jacket Rating
I No Water Gauge required
I Rear mounted Pressure/Vacuum Gauge and Pressure Relief
Valve
I Infinitely variable Scraper Speed Control from 0-40 rpm
I Infinitely Variable Ratio between Scraper And Agitator: Agitator
rotates from 0-8 times the speed of the Scraper
I Removable (without tools) Nylon Blades scape entire Jacketed
surface
I 3 Horsepower Hydraulic powered Agitator, Scraper and Bridge
Lift
I Safety device prevents high speed starts
I Mixer stop when Bridge is lifted
I Agitator and Scraper are bayonet mounted for easy removal
I Tilt mechanism of Roller Bearings and case hardened
Self-Locking worm and segment gear
I Hot and Cold Water Faucets
I 2" diameter Tangent Draw-Off Valve with Drain Strainer
I All Plumbing , Electrical and Hydraulics enclosed in Stainless
Steel Consoles
I Enclosed, 10 Gauge Stainless Steel hydraulically operated
Mixer Bridge
I Kettle and all exterior surfaces are Stainless Steel
I Level adjustable feet (flanged for bolting)
I Large Pouring Lip
I Gallon Markings stamped into Scraper Shaft
I Standard 208-240 volts, 60 Hz, 3 phase, 4 wire, high wattage
I Typical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
Ë Covers (MTP)
Ë Product Time/Temperature Controls and Indicators
Ë Food Strainer (FS-20)
Ë Flow Diverter (FD)
Ë Pan Carrier (PCK)
Ë Swing Funnels (SF-1 or SF-2)
Ë Alternate Mounting Systems (wall)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: MKEL-40-T
MKEL-60-T
Shown with optional Power Tilt
Short Form Specifications
Shall be CLEVELAND, Model MKEL- _____ -T, console/Leg mounted, Electric
Mixer Kettle with permanently filled Steam Jacket; 50 psi Kettle Jacket Rating
and Safety Valve, High Wattage standard, Solid State Temperature (±1°F)
and Low Water Safety Controls. 3 H.P. Hydraulic powered Scraper/Agitator
and Bridge Lift. 0-40 rpm Scraper Speed with Variable Scraper to Agitator
Ratio from 1-1 to 8-1. Stainless Steel enclosed Mixer Bridge. All Plumbing,
Electrical and Hydraulics enclosed in Consoles. Gallon Markings. Safety
Device prevent high speed starts. Safety Device prevents high speed starts;
Mixer stops when Bridge is lifted. Bayonet Mounted Agitator and Scraper.
2" Tangent Draw-0ff Valve. Hot and Cold Water Faucet. Kettle and all exte-
rior surfaces are Stainless Steel.
Ë Power Tilt (PT)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Type 316 Stainless Steel Interior for high acid food
products (316-20G)
Ë Water Meter (GMF or LMF) Wall Mount or on Stand (SWM)
Ë Leg Extensions
Ë Voltages (VOS) other than standard
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
MKEL-80-T
MKEL-100-T
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
XI
SECT. PAGE
5
0707
