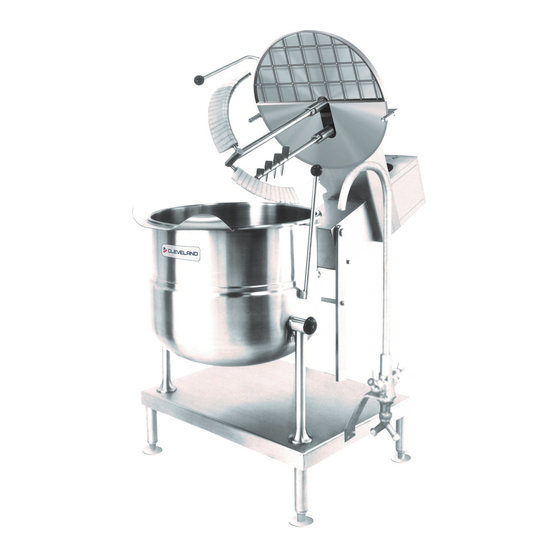

Cleveland MKDT-20-T Specifications

Mixer kettle, electric floor type, lever tilt 2/3 jacketed

Hide thumbs Also See for MKDT-20-T:

Operator's manual (21 pages)

Installation, operation, maintenance, parts (22 pages)

page of 2

/ 2
Bookmarks

Quick Links

Download this manual See also: Operator's Manual

™

Cleveland

MIXER KETTLES

MIXER KETTLE, ELECTRIC

FLOOR TYPE, LEVER TILT

2/3 JACKETED

Cleveland Standard Features

I Infinitely Variable Speed for all conditions; Scraper from

0-70 rpm, Agitator from 0-20 rpm

I Removable (without tools) Nylon Blade scrapes entire

Jacketed surface

I 3/4 Horsepower D.C. Timing Belt Drive

I Safety Device prevents high speed starts

I Mixing stops when Bridge is lifted

I Agitator and Scraper are bayonet mounted for easy removal

I Enclosed, balanced, 10 Gauge Stainless Steel Mixer Bridge

I Kettle and all exterior surfaces are stainless steel

I Steam Control Valve built into Trunnion

I Factory installed Steam Control Kit

I 50 psi Steam Jacket Rating

I Tilt Handle interchangeable for left or right operation

I Large Pouring Lip

I Double Pantry Faucet Standard

I Gallon Markings on Scraper Shaft

I Standard 120 volts, 60 Hz, single phase, 3 wire

I Typical approvals include NSF and ASME

Options & Accessories

Ë Covers (MTP)

Ë Product Time/Temperate Controls and Indicators

Ë Food Strainer (FS-12)

Ë Flow Diverter (FD)

Ë Kettle Accessory Kit (KAK) includes:

Ë Clean-up Brush (CB)

Ë 36˝ Kettle Whip (KW)

Ë Draw-off Brush (DB)

Ë Pressure Reducing Valve (PRV-K)

Ë Type 316 Stainless Steel Kettle Interior for high acid food

products (316-12G)

Ë Water Meter (GMF or LMF) Wall Mount or on Stand (SWM)

1333 East 179 St.,

Cleveland, Ohio, U.S.A. 44110

Ë 36˝ Kettle Paddle (KP)

Ë 36˝ Kettle Brush (KB)

Ë 24 oz. Ladle (KL)

Tel: 1-216-481-4900

Fax: 1-216-481-3782

MODELS:

Short Form Specifications

Shall be Cleveland, model MKDT-20-T, Floor Type, Lever Tilt, 20

gallon, Direct Steam Mixer Kettle, 50 psi Jacket Rating, Factory

Installed Steam Control Kit, Steam Control Valve built into Trunnion.

Infinitely Variable Speed, 3/4 H.P. Time Belt Drive, Bayonet

Mounted Agitator and Scraper with removable Blades, Safety

Device prevents high speed starts. Mixing stops when Bridge is

lifted. Kettle and all Exterior Surfaces are Stainless Steel.

Web Site: www.ClevelandRange.com

Email: Steam@ClevelandRange.com

Project ________________________________

Item __________________________________

Quantity _______________________________

FCSI Section ____________________________

Approval _______________________________

Date __________________________________

MKDT-20-T

SECT.

PAGE

0707

Need help?

Do you have a question about the MKDT-20-T and is the answer not in the manual?

Questions and answers

Summary of Contents for Cleveland MKDT-20-T

Page 1 MODELS: MKDT-20-T Short Form Specifications Shall be Cleveland, model MKDT-20-T, Floor Type, Lever Tilt, 20 gallon, Direct Steam Mixer Kettle, 50 psi Jacket Rating, Factory Installed Steam Control Kit, Steam Control Valve built into Trunnion. Infinitely Variable Speed, 3/4 H.P. Time Belt Drive, Bayonet Mounted Agitator and Scraper with removable Blades, Safety Device prevents high speed starts.
Page 2 Installation of backflow preventers, vacuum breakers and other specific coder requirements is the responsibility of the owner and installer. Litho in USA Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL and others.
