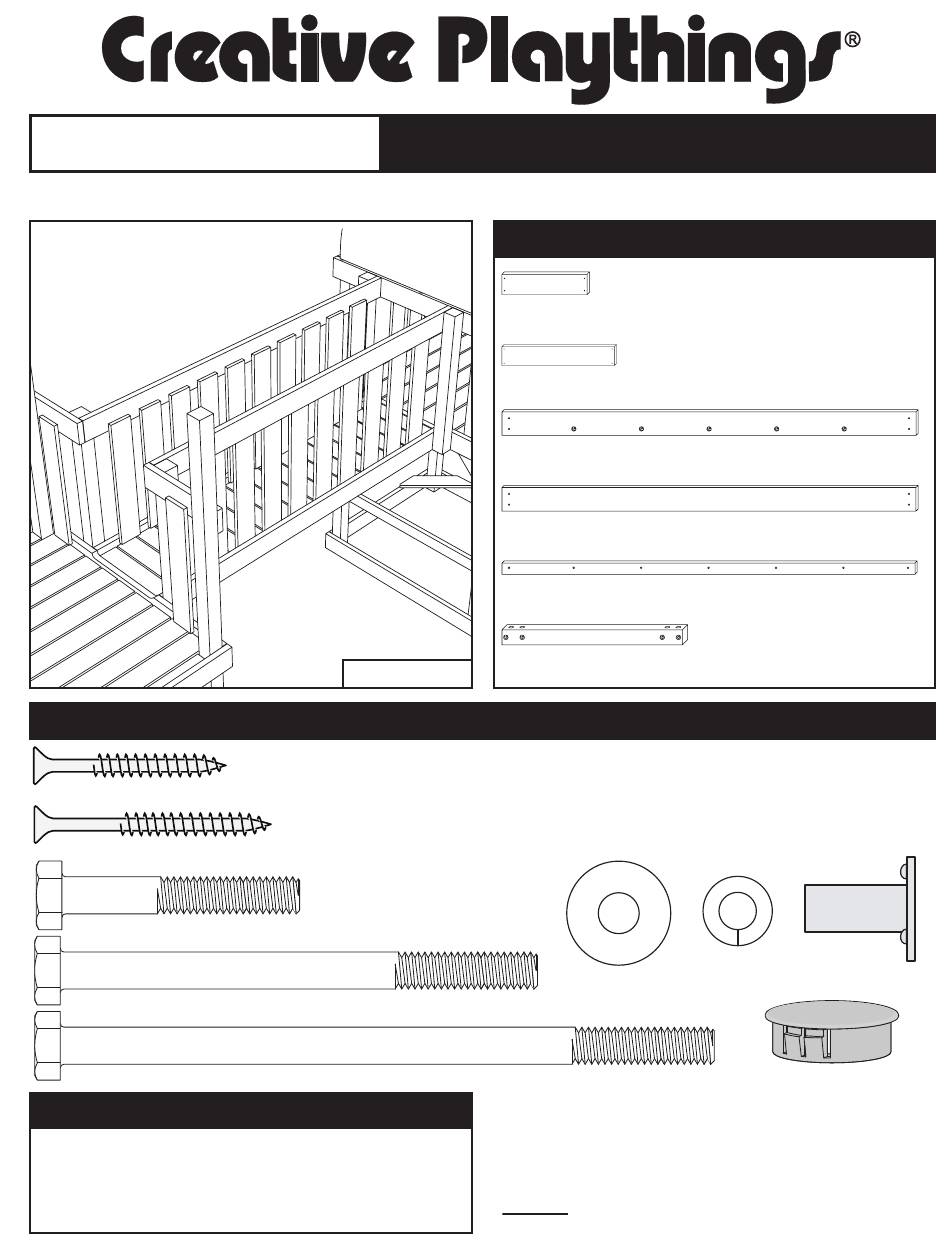

MODEL SJ951-102
ASSEMBLY MANUAL
Review the original play set assembly manual and owners manual before assembly.
#10 x 1-5/8" Screw
#10 x 2" Screw
5/16 x 2" Hex Bolt
5/16 x 4" Hex Bolt
5/16 x 5-1/2" Hex Bolt
TOOLS REQUIRED
Pencil
3/8" Drill
Tape Measure
1/2" Socket Wrench
illustration #1
FASTENERS
42
12002-206 Flat Washer 5/16"
42
12017-206 Lock Washer 5/16"
42
17001-105 Weld Nut 5/16"
10
17003-811 Hex Bolt 5/16 x 2"
28
17003-1611 Hex Bolt 5/16 x 4"
Phillips Screw Driver Drill
Saw
Appropriate Stain
CONNECTING BRIDGE
17 31536-102
20 32404-102
2
32612-102
2
32613-102
2
32614-102
4
32615-102
Flat Washer
All hardware on this set is specially
coated for corrosion resistance. If non-
Creative Playthings hardware is used, it
MUST be galvanized or stainless steel.
COMPONENTS
Bridge Board 5/4 x 6 x 20-7/8"
Wall Slat 5/4 x 6 x 31-1/2"
Bridge Bottom Rail 2 x 6 x 92"
Bridge Hand Rail 2 x 6 x 92"
Bridge Cleat 2 x 3 x 92"
Bridge Post 4 x 4 x 38-7/8"
4
17003-2211 Hex Bolt 5/16 x 5-1/2"
80
17020-115 Screw #10 x 1-5/8"
68
17020-107 Screw #10 x 2"
38
15081-704 1" Hole Cap - Brown
Lock
Washer
Hole Cap
Weld Nut
Advertisement
Related Manuals for Creative Playthings SJ951-102
Summary of Contents for Creative Playthings SJ951-102
- Page 1 TOOLS REQUIRED All hardware on this set is specially Pencil Phillips Screw Driver Drill coated for corrosion resistance. If non- 3/8" Drill Creative Playthings hardware is used, it Tape Measure Appropriate Stain MUST be galvanized or stainless steel. 1/2" Socket Wrench...
- Page 2 Note: Make sure there are no obstructions behind the Platform Support before drilling through. Top Rail has been omitted for clarity. illustration #4 CONNECTING BRIDGE Page 2 © Copyright 2005, Creative Playthings, Printed in U.S.A. 19715-100 Rev E (07-20)
- Page 3 Locate 17 Bridge Boards and space them evenly across the Bridge Cleats. Secure the Bridge Boards onto the Bridge Cleats using four #10 x 2" Screws each. illustration #7 CONNECTING BRIDGE Page 3 © Copyright 2004, Creative Playthings, Printed in U.S.A. 19715-100 Rev E (07-20)
- Page 4 Top Rail has been omitted for clarity. illustration #10 STEP 10 - Hole Caps: Insert Hole Caps into the counter-bored holes on the Bridge Posts and Bridge Rails. CONNECTING BRIDGE Page 4 © Copyright 2005, Creative Playthings, Printed in U.S.A. 19715-100 Rev E (07-20)
