Creative Playthings LEXINGTON PICNIC TABLE SD 204-102Q Assembly Manual

MODEL# SD 204-102Q
ASSEMBLY MANUAL

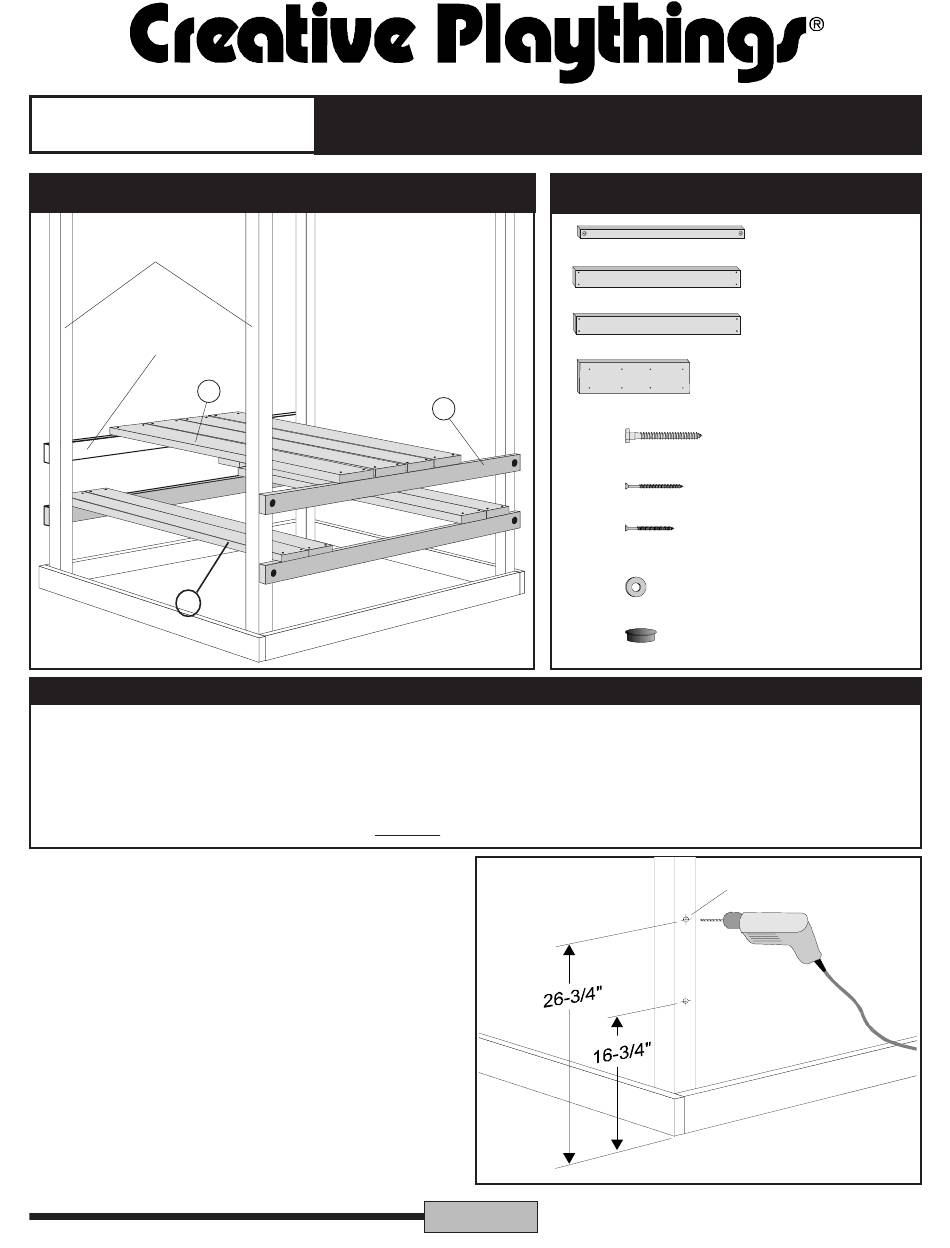

PICNIC TABLE ASSEMBLY
Upright Corners
Existing Safety Rail
B
C
The installation of the Picnic Table option may require some disassembly of existing components.
Sandbox Seats must be removed and will not be used with the Picnic Table. The existing Safety Rail
must be removed and will be utilized later in these instructions
All hardware on this set is specially coated for corrosion resistance. If non-Creative
Playthings hardware is used, it MUST be galvanized or stainless steel.
STEP 1 - PILOT HOLES
You will have to drill two pilot holes in each of the corner uprights
for the 2x4 Picnic Table Support Rails (A) and the 5/16 x 2-1/2"
Lag Screws.
Locate and mark for two pilot holes in each of the Corner
Uprights.
NOTE: They will be located on the same side as the Safety
Rail was attached and the adjacent side. Measure up 16-3/4"
from the bottom of the Corner Uprights to the first hole and
26-3/4" to the second.
At each mark, drill a 3/16" dia. hole to a depth of 1" as shown
in illustration #3.
Picnic Table - Lexington Gym
19596 -200 Rev A (12-01)
LEXINGTON PICNIC TABLE
A
illustration #1
SPECIAL NOTES AND INSTRUCTIONS
Page 1
PART DESCRIPTIONS
A - (3) 31465-102 Picnic Table Support Rail - 2 x 4 x 83-1/4"
B - (4) 31941-102 Table Boards - 5/4 x 6 x 59-1/2"
C - (4) 32117-102 Seat Boards - 2 x 6 x 59-1/2"
D - (1) 31942-102 Table Cleat - 5/4 x 6 x 20-1/4"
(6) 17036-1002 - 5/16 x 2-1/2" Lag Screws
(24) 17020-105 - #10 x 1-1/2" Flat Head Phillips Screw
(16) 17020-109 - #8 x 2-1/2" Flat Head Phillips Screw
(6) 17002-206 - 5/16" Flat Washer
(6) 15081-904 - 1" Hole Cap
This hole maybe pre-drilled on the
Upright Corner.
©
Copyright 2001, Creative Playthings. Printed in U.S.A.
illustration #2
illustration #3
