MODEL # SC 909-800Q
ASSEMBLY MANUAL
•
If you also plan to install a play floor option, install the play floor first. The wall slats will rest on the play floor boards.
•
Any sandbox seats must be removed and will not be used with the play wall option.
•
The play wall can not be used with the Lexington picnic table.
•
The Safety Rail from your Lexington play set is used with this accessory. It does need to be removed.
Please review your original Lexington Assembly Manual and
your Owners Manual before assembly of your Play Wall.
•
1/2" Socket and Wrench
•
Electric Drill
•
Screwdriver or Screwdriver Tip for Electric Drill
•
Tape Measure
©
Copyright 2001, Creative Playthings. Printed in USA.
LEXINGTON PLAY WALLS
SPECIAL NOTES
TOOLS REQUIRED FOR ASSEMBLY
Page 1

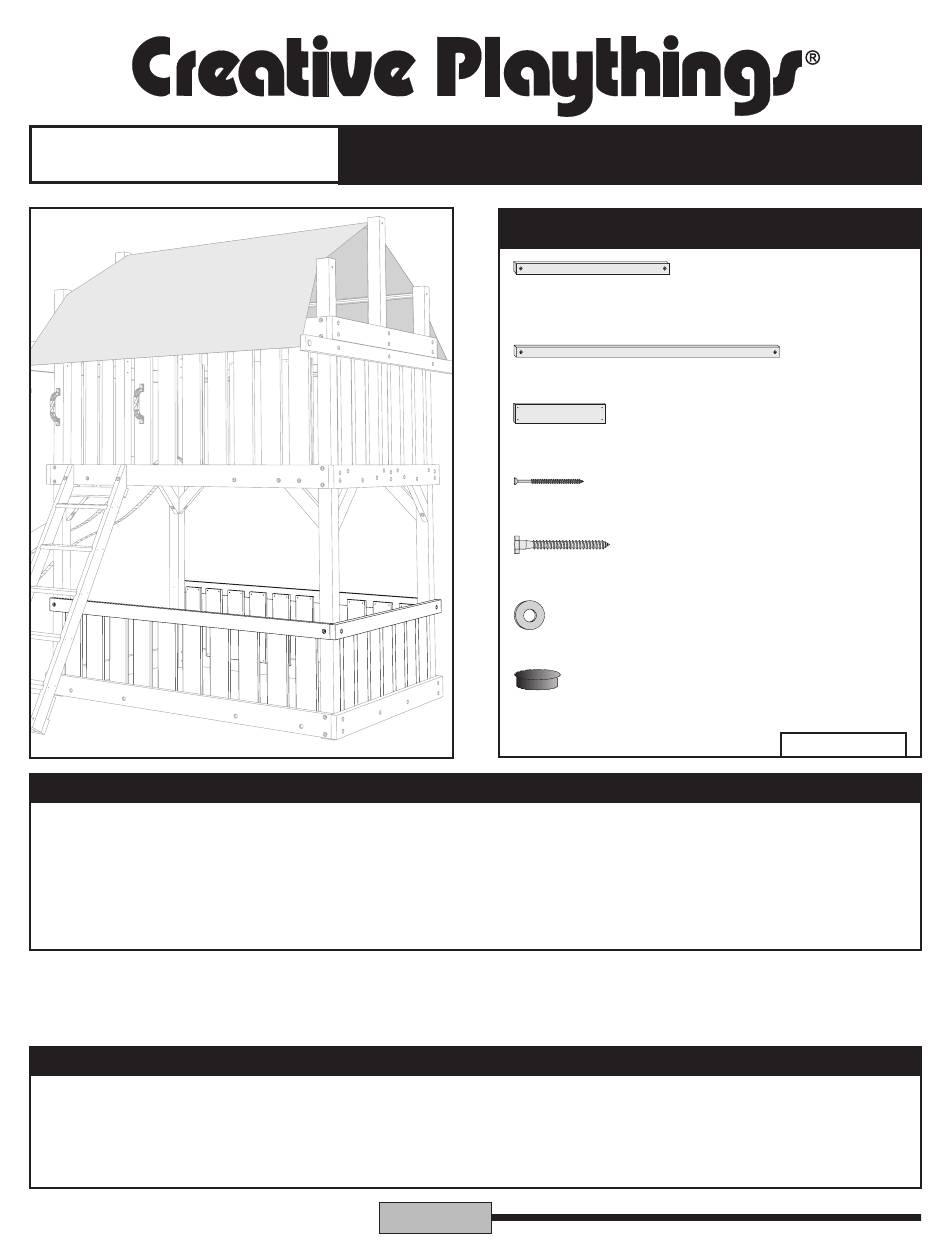

PARTS
A
1 Ea. 31526-102
End Wall Support - 2 x 4 x 59-1/2"
B
1 Ea. 50122-200
Hardware Bag - Lexington Play Walls
C 1 Ea. 31465-102
Side Wall Support - 2 x 4 x 83-1/4"
D 27 Ea. 31936-102
Wall Slat - 5/4 x 6 x 20"
108 Ea.
17020-115
Flat Head Wood Screw - #10 x 1-5/8"
4 Ea.
17036-1202
Lag Screw - 5/16 x 2-1/2"
4 Ea.
17002-206
Flat Washer - 5/16"
4 Ea.
15081-704
1" Hole Cap - Brown
illustration #1
