CH947-403 & SH947-102
ASSembly mAnuAl
F
E
B

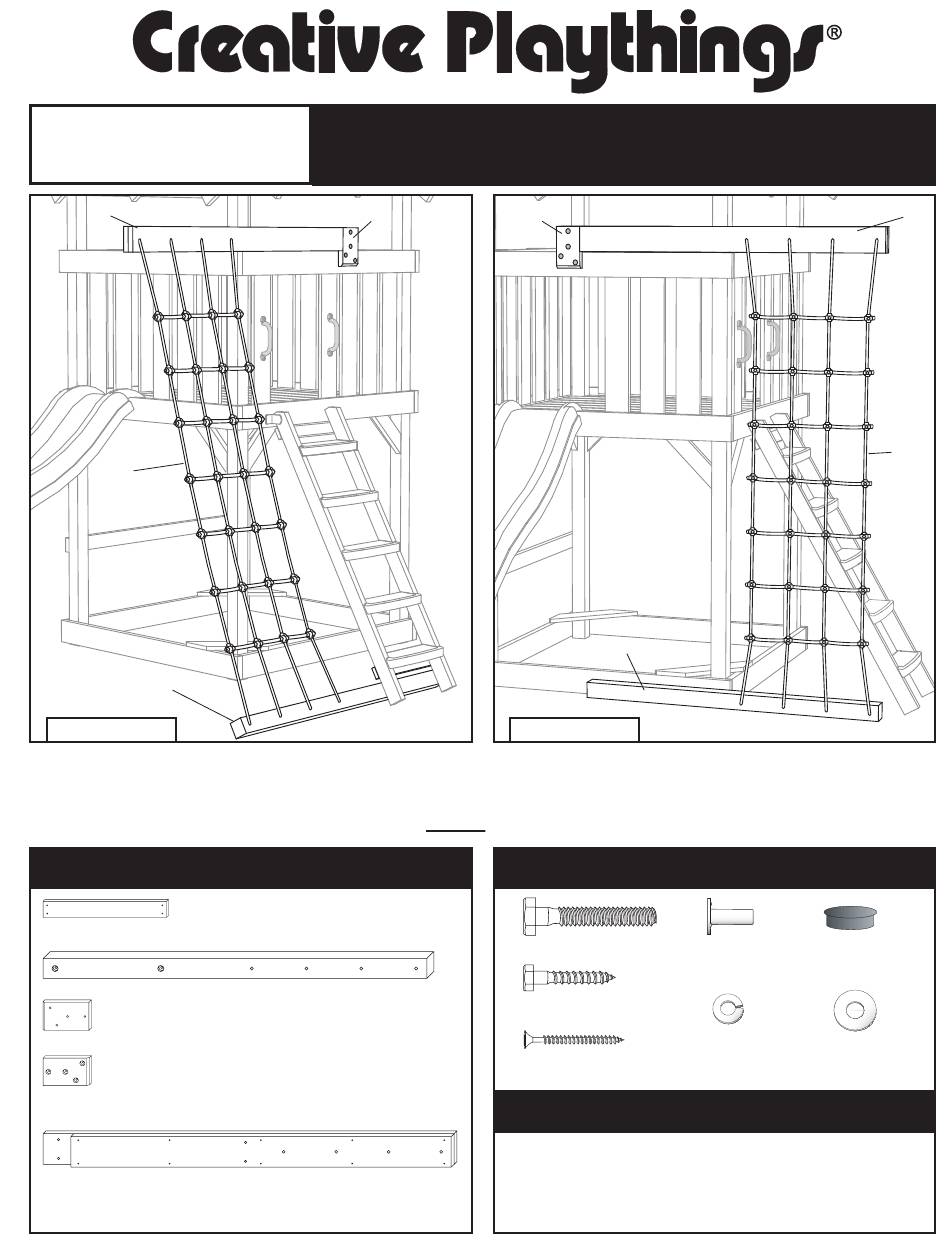

illustration #1
Please review your original Playset Assembly Manual and your Owners Manual before assembly of your Rope Ladder.
All hardware on this set is specially coated for corrosion resistance. If non-Creative play-
things hardware is used, it muSt be galvanized or stainless steel.
Wooden pARtS
A
1 31735-102
Ladder Slat - 5/4 x 3 x 19"
B
1 33434-102
Bottom Rope Ladder Support - 4 x 4 x 63"
C
1 32469-102
Rope Ladder Anchor, Back - 2 x 6 x 8-3/4"
D
1 32470-102
Rope Ladder Anchor, Front - 2 x 6 x 8-3/4"
E
1 40524-100
Deluxe 3/4" Rope Ladder Assembly
F
1 40523-102
Top Rope Ladder Beam Assembly
G 1 50353-700
Hardware Bag - Rope Ladder
Rope lAddeR
D
D
A
illustration #2
Hex Bolt
Lag Screw
Wood Screw
• Electric Drill
• 1/4" & 3/8" Drill Bits
• #2 Phillips Driver Bit
B
HARdWARe
Weld Nut
Lock Washer
Hardware list is on the back page.
toolS RequIRed
• Pencil
• Tape Measure
• 1/2" Socket Wrench
F
E
Hole Cap
Flat Washer
Advertisement
Related Manuals for Creative Playthings CH947-403
Summary of Contents for Creative Playthings CH947-403
- Page 1 Rope lAddeR CH947-403 & SH947-102 ASSembly mAnuAl illustration #1 illustration #2 Please review your original Playset Assembly Manual and your Owners Manual before assembly of your Rope Ladder. All hardware on this set is specially coated for corrosion resistance. If non-Creative play- things hardware is used, it muSt be galvanized or stainless steel.
- Page 2 ASSembly InStRuCtIonS Rope Ladder CH947-403 is intended for installation on a Crescent III or Durango III Gym. Rope Ladder SH947-102 is in- tended for installation on a Williamsburg III or Lexington III Gym. The Rope Ladder can be mounted to any corner of the gym.
- Page 3 Your rope ladder should be placed in the same direction. Check to make sure all hardware is secure and the rope is tightly fastened. illustration #8 ROPE LADDER page 3 © Copyright 2005, Creative Playthings, printed in U.S.A. 19695-300 Rev B (07-16)
- Page 4 1" Hole Cap - Brown Save all instruction sheets and receipts in case it becomes necessary to contact Creative playthings for warranty service and/or part replacement. the warranty can be found in your owner’s manual. please fill out the warranty card on the back of your owners manual. your completed warranty card will allow us to quickly process warranty claims.
