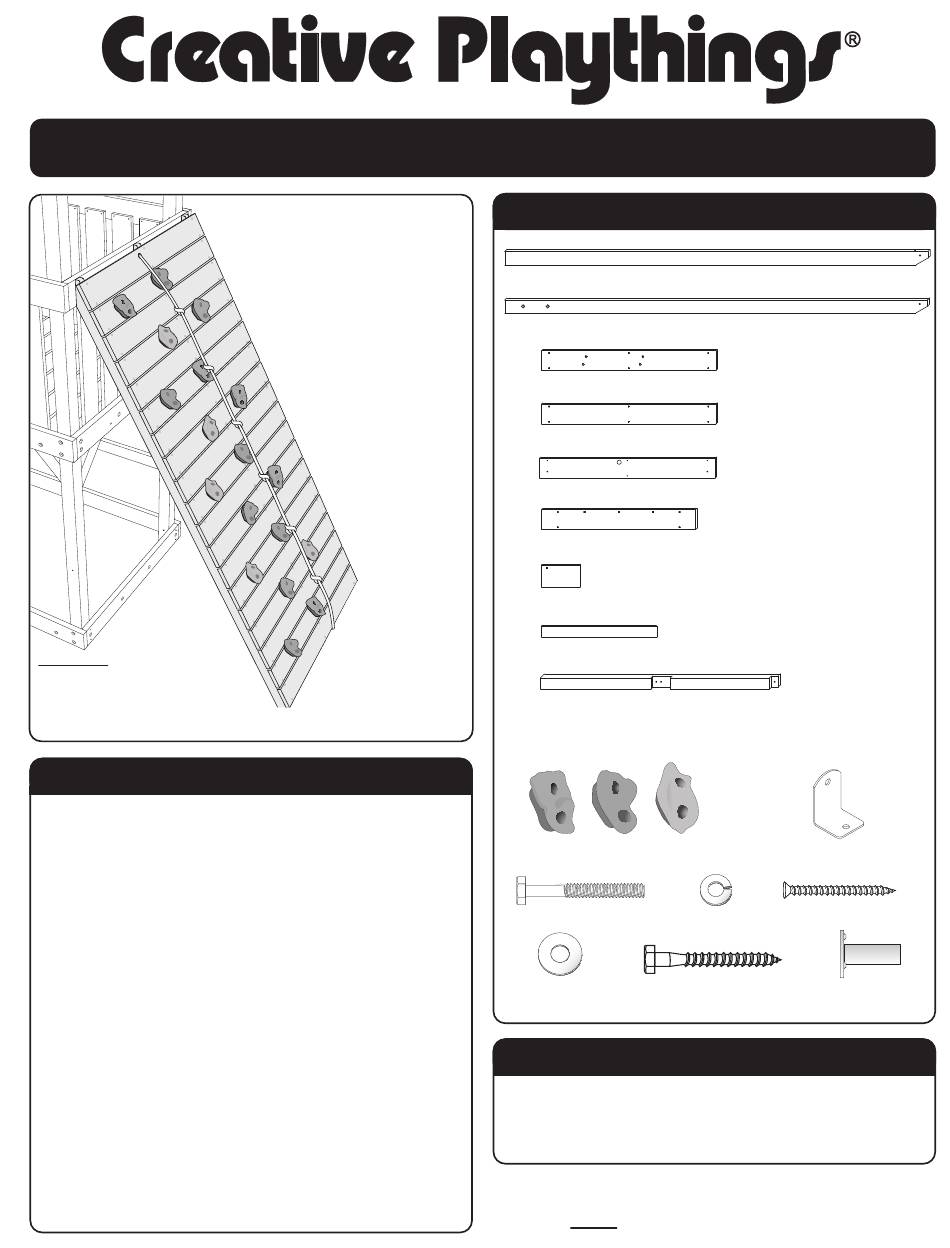

MODEL #SH304-101
ASSEMBLY MANUAL
Important: Set the base of
the Rock Climber into the
ground to the level of the
bottom of the Rope
SPECIAL NOTES
• The Pinnacle Rock Wall is not intended for children
under six years of age.
• The Pinnacle Rock Wall must be fastened to the Wall
Support at the rear of your Playset.
• The Pinnacle Rock Wall can not be used in conjunction with
any option that would fasten to the rear wall of a Playset.
• All the Hand Holds supplied must be fastened to your
Rock Wall. There should be no unused mounting holes
left on the Rock Wall. Unused holes could present a
finger entrapment hazard to your child.
• Keep Hand Holds clean so that they can be inspected
for cracks and sharp edges. Replace any damaged
Hand Holds.
• Replace any bolts or weld nuts that become stripped or
cross threaded.
• Please review your original Playset Assembly Manual
and your Owners Manual before assembly of your
Pinnacle Rock Wall.
• Provide a soft surface free from obstructions 6' out from
the base of the Pinnacle Rock Wall. See your original
Playset Instructions for recommended play surfaces.
PINNACLE ROCK WALL
SH304-101 Pine
All hardware on this set is specially coated for corrosion
resistance. If non-Creative Playthings hardware is used,
COMPONENT PARTS
A
2
33601-102
Angled Rail 2 x 4 x 108"
B
1
33602-102
Center Rail 2 x 4 x 108"
C
9
32298-102
Rock Board 5/4 x 6 x 46"
D
9
32299-102
Spacer Board 5/4 x 6 x 46"
E
1
33565-102
Top Rope Board 5/4 x 6 x 46"
F
1
32300-102
Bench Seat 2 x 6 x 40"
G
2
32301-102
Bench Support 2 x 6 x 10-5/8"
H
1
32302-102
Bench Cleat 2 x 3 x 31-1/4"
I*
1
32834-102
Center Post 4 x 4 x 67-1/8"
(* Used only on gyms with gambrel tents)
J
1
40400-100
Climbing Rope Assembly
18 Climbing Rocks
Hex Bolt
Lock Washer
Flat Washer
Lag Screw
See the last page for Part Number Reference.
TOOLS REQUIRED FOR ASSEMBLY
• 7/16" & 1/2" Socket Wrench
• 3/8" & 1" Diameter Drill. (1/4" may be needed)
• Phillips Screwdriver or Drill with Screw Tip
• Tape Measure
it MUST be galvanized or stainless steel.
Access Ladder Bracket
Screw
Weld Nut

Advertisement

loading
Need help?

Need help?

Do you have a question about the SH304-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Playthings SH304-101

Summary of Contents for Creative Playthings SH304-101

  • Page 1 All hardware on this set is specially coated for corrosion the base of the Pinnacle Rock Wall. See your original resistance. If non-Creative Playthings hardware is used, Playset Instructions for recommended play surfaces. it MUST be galvanized or stainless steel.
  • Page 2 1" 1'-6 1/4" When fastening the Bench to the gym. Fit the notch around the Tent Post. PINNACLE ROCK WALL Page 2 © Copyright 2004, Creative Playthings, Printed in U.S.A. 19652-400 Rev F (05-20)
  • Page 3 Insert a 1/4" Weld Nut into the bottom surface of both Angled Rails (A). This is to fasten the Top Rope Board (E). PINNACLE ROCK WALL Page 3 © Copyright 2004, Creative Playthings, Printed in U.S.A. 19652-400 Rev F (05-20)
  • Page 4 2-1/2" T25 Deck Screws from the front of the Rock Climber. Drill a 1/8" diameter pilot hole for each screw. Bottom View Align PINNACLE ROCK WALL Page 4 © Copyright 2004, Creative Playthings, Printed in U.S.A. 19652-400 Rev F (05-20)

  • Page 5: Step 7- Attach Brackets

    1/4" diameter hole 2" deep. Fasten with a 5/16 x 2-1/2" Lag Screw and Flat Washer. Note: When mounting to a Skybox, fasten the Brackets to the Platform Support. PINNACLE ROCK WALL Page 5 © Copyright 2004, Creative Playthings, Printed in U.S.A. 19652-400 Rev F (05-20)
  • Page 6 Rock, and not protrude more than a 1/8" past the end of the Weld Nut. Replace any protruding bolts as they can be a hazard to Hex Bolt Hex Bolt users. Weld Weld PINNACLE ROCK WALL Page 6 © Copyright 2004, Creative Playthings, Printed in U.S.A. 19652-400 Rev F (05-20)
  • Page 7 Important: Set the base of the Rock Climber Ground Level into the ground to the level of the bottom of the Rope Bottom Spacer Board PINNACLE ROCK WALL Page 7 © Copyright 2004, Creative Playthings, Printed in U.S.A. 19652-400 Rev F (05-20)
  • Page 8 T25 Deck Screw #10 x 2-1/2" 5/16 X 3" Hex Bolt Note: We have packaged more hardware than is required for assembly. Quantities listed are actual quantities required for assembly. PINNACLE ROCK WALL 19652-400 Rev F (05-20) © Copyright 2004, Creative Playthings, Printed in U.S.A.
