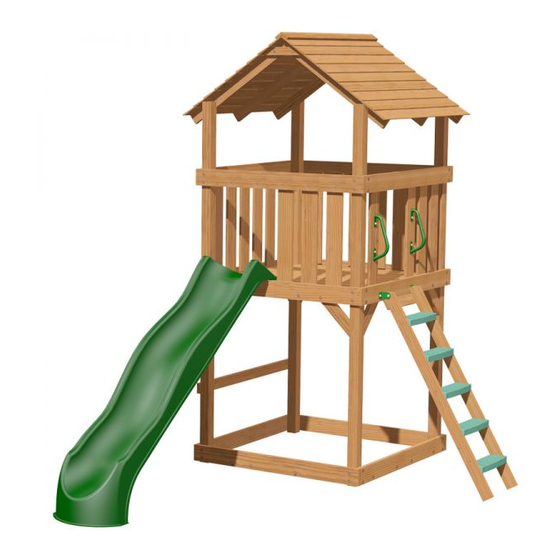

LEXINGTON
WOOD
MODEL #SH 6100-000
with
ROOF
ASSEMBLY MANUAL
Carefully read the owner's manual and all instructions
All hardware on this set is
before assembling your play set. It provides additional
specially coated for corrosion
information on the care and use of your play set.
resistance.
Creative Playthings takes great care to design its products
If non-Creative Playthings
with your child's safety in mind. However, only with careful
supervision and proper safety instructions, can you be
hardware is used, it must be
assured of safe play time on any product designed for
galvanized or stainless steel.
children.
This product is intended for single family home/residential use only
and not intended for use in any public setting. Placement in any public
setting constitutes a misuse of this product.
Creative Playthings
33 Loring Drive, Framingham, MA 01702
www.creativeplaythings.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEXINGTON SH 6100-000 and is the answer not in the manual?

Questions and answers

Related Manuals for Creative Playthings LEXINGTON SH 6100-000

Summary of Contents for Creative Playthings LEXINGTON SH 6100-000

  • Page 1 Creative Playthings takes great care to design its products If non-Creative Playthings with your child’s safety in mind. However, only with careful supervision and proper safety instructions, can you be...
  • Page 2 • Avoid assembling your play set in poor weather conditions. • Wear proper clothing and safety equipment (safety glasses, boots, and gloves) while assembling your play set. LEXINGTON WITH WOOD ROOF Page 2 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)

  • Page 3: Safe Play Area

    Safe play area using recommended ground cover. Landscape Timbers 6' from WHICHEVER play structure. IS GREATER A FALL ONTO A HARD SURFACE COULD RESULT IN SERIOUS INJURY. LEXINGTON WITH WOOD ROOF Page 3 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)

  • Page 4: Hardware Bag Contents

    17036-1602 Lag Screw - 5/16 x 4" We have packaged more hardware than is required for assembly. 17119-1209 Truss Head Bolt - 1/4 x 3" LEXINGTON WITH WOOD ROOF Page 4 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)

  • Page 5: Pre Assembly Information

    Assembly PRE ASSEMBLY INFORMATION All hardware on this set is specially coated for corrosion resistance. If non-Creative Playthings hardware is used, it MUST be galvanized or stainless steel. CREATIVE PLAYTHINGS PLAY SETS USE A FEW STANDARD CONNECTIONS. BECOMING FAMILIAR WITH THESE CONNECTIONS WILL SIMPLIFY ASSEMBLY AND INSURE A SAFER PLAY PRODUCT FOR YOUR CHILDREN.
  • Page 6 PLAY SET VIEW LEXINGTON WITH WOOD ROOF Page 6 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)

  • Page 7: Component Parts

    31820-102 Swing Mount - 4 x 4 x 39" 3 Ea 32404-102 Wall Slat - 5/4 x 6 x 31-1/2" LEXINGTON WITH WOOD ROOF Page 7 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)

  • Page 8: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS YOUR CREATIVE PLAYTHINGS PLAY SET IS STAINED AT OUR FACTORY. STAINING IS NOT NEEDED AT THE TIME OF INITIAL ASSEMBLY. Re-staining Information: • Pigmented, exterior, water repellent stains are recommended and will provide an excellent barrier against moisture without hiding the natural wood grain or leaving a film that may later crack or peel.
  • Page 9 * Note: A Hex Bolt Assembly consists of one Hex Bolt, one Lock Washer, one Flat Washer and one Repeat with the other posts, sandbox end and plat- Weld Nut. form end. LEXINGTON WITH WOOD ROOF Page 9 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 10 4" hex bolt assemblies, two at each end. Finish the tower base by installing the second Sandbox Side (Q) Using four 5/16 x 4" hex bolt as- semblies. F r o LEXINGTON WITH WOOD ROOF Page 10 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 11 5/16 x 2-1/2" hex bolt assemblies. Do not tighten yet. Align each angle brace so the angled end is flat against the nearest corner post. 5/16 x 2-1/2" Hex Bolts LEXINGTON WITH WOOD ROOF Page 11 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 12 Check each board to make sure the best looking surface faces up. Space the platform boards evenly between the narrow platform boards. Fasten each platform board using eight #10 x 2" screws. LEXINGTON WITH WOOD ROOF Page 12 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 13 Fasten each roof panel to the corner Post Post posts using two 5/16 x 4-1/2" hex bolt assemblies. Do not tighten the fasteners completely until after the next step. LEXINGTON WITH WOOD ROOF Page 13 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 14 A and into ridge Screws cap part B. Leave the screw head flush to the surface of ridge cap part A. Ridge Cap Part A (AD) LEXINGTON WITH WOOD ROOF Page 14 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 15 The access ladder must be mounted well clear of any swing accessories. Provide space to mount entrance slats and hand grips on either side of the access ladder. LEXINGTON WITH WOOD ROOF Page 15 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 16 1/2" above the platform surface.Hint: been omitted Use the Slide Mount (K) to make sure there is enough room for clarity. for the slide. LEXINGTON WITH WOOD ROOF Page 16 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 17 Leave approximately 3-3/8" between each wall slat. Fasten each wall slat using four #10 x 1-5/8" screws. #10 x 1-5/8" Screws LEXINGTON WITH WOOD ROOF Page 17 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 18 Boards using the indents in the slide as a guide. Fasten the slide using one 1/4 x 3" Truss Head Bolt and one 1/4" Weld Nut for each hole. LEXINGTON WITH WOOD ROOF Page 18 © Copyright 2005, Creative Playthings 19686-300 Rev Q (09-20)
  • Page 19 Save all instruction sheets and receipts in case it becomes necessary to contact Creative Playthings for warranty service and/or part replacement. The warranty can be found in your Owner’s Manual. Please fill out the warranty card on the back of your owners manual. Your completed warranty card will allow us to quickly process warranty claims.
