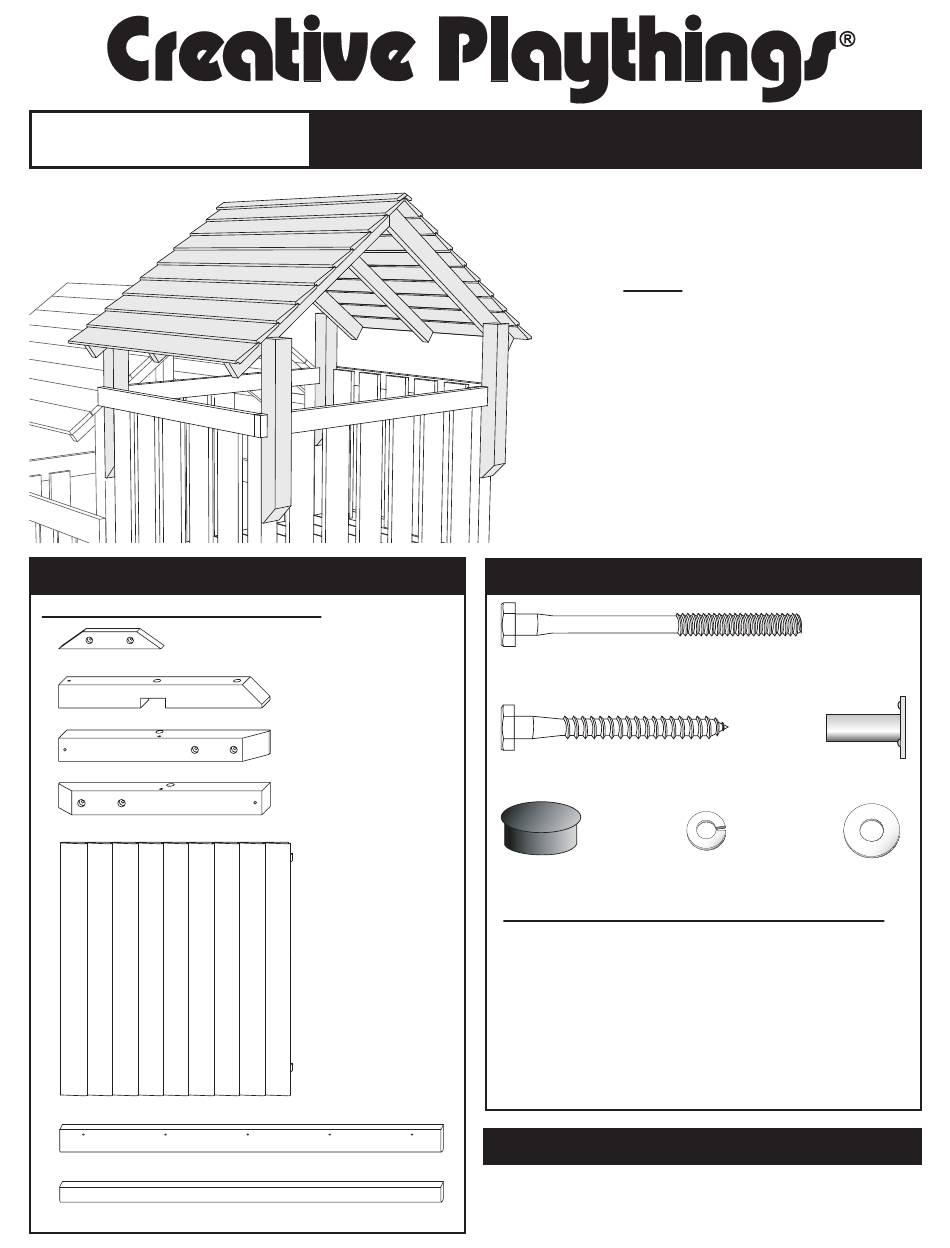

Creative Playthings SJ926-810 Assembly Manual

MODEL # SJ926-810
ASSEMBLY MANUAL
PART DESCRIPTIONS
SJ926-810 Wood Roof - Pine Skybox
A 3 31818-102 Ceiling Joist 2 x 3 x 15"
B 2 32452-102 Back Post - 4 x 4 x 28-9/16"
C 1 32453-102 Front Post, Left 4 x 4 x 28-9/16"
D 1 32454-102 Front Post, Right 4 x 4 x 28-9/16"
E 2 40530-102 Roof Assembly
F 1 32925-402 Ridge Cap Part A, 5/4 x 3-5/32 x 47-1/4"
G 1 32926-402 Ridge Cap Part B, 5/4 x 2-9/32 x 47-1/4"
PINE SKYBOX WOOD ROOF
Replacement Roof
Board: 32835-402
All hardware on this set is specially
coated for corrosion resistance. If
non-Creative Playthings hardware is
used, it MUST be galvanized or stain-
less steel.
These instructions are for the modifica-
tion of an existing Pine Skybox.
There is some disassembly of your
original play set required.
Please reread your original Skybox
Assembly Manual and the Owner's
Manual you received with your
HARDWARE LIST
Hex Bolt
Lag Screw
Hole Cap Lock Washer
50349-700 Hardware Bag - Skybox Wood Roof - SP
12 17001-105 Weld Nut - 5/16-18
14 12002-206 Flat Washer - 5/16"
12 12017-206 Lock Washer - 5/16"
6 17003-811 Hex Bolt - 5/16 x 2"
4 17003-1811 Hex Bolt - 5/16 x 4 1/2"
2 17003-2411 Hex Bolt - 5/16 x 6"
12 17025-104 Screw #8 X 1-1/4"
6 17020-112 Screw #8 X 2"
2 17036-2002 Lag Screw - 5/16 x 5"
6 15081-704 1" Hole Cap - Brown
Tools required for assembly
• 1/2" Socket and wrench
• Phillips Screwdriver
• Electric Drill
play set.
Weld Nut
Flat Washer
• 1/4" Drill Bit (High Speed)
• Tape Measure
• 10' Stepladder
