Creative Playthings SC 903-800Q Assembly Manual

MODEL # SC 903-800Q
ASSEMBLY MANUAL
ADULT ASSEMBLY REQUIRED.
Intended for Ages 2 to 12 Years.

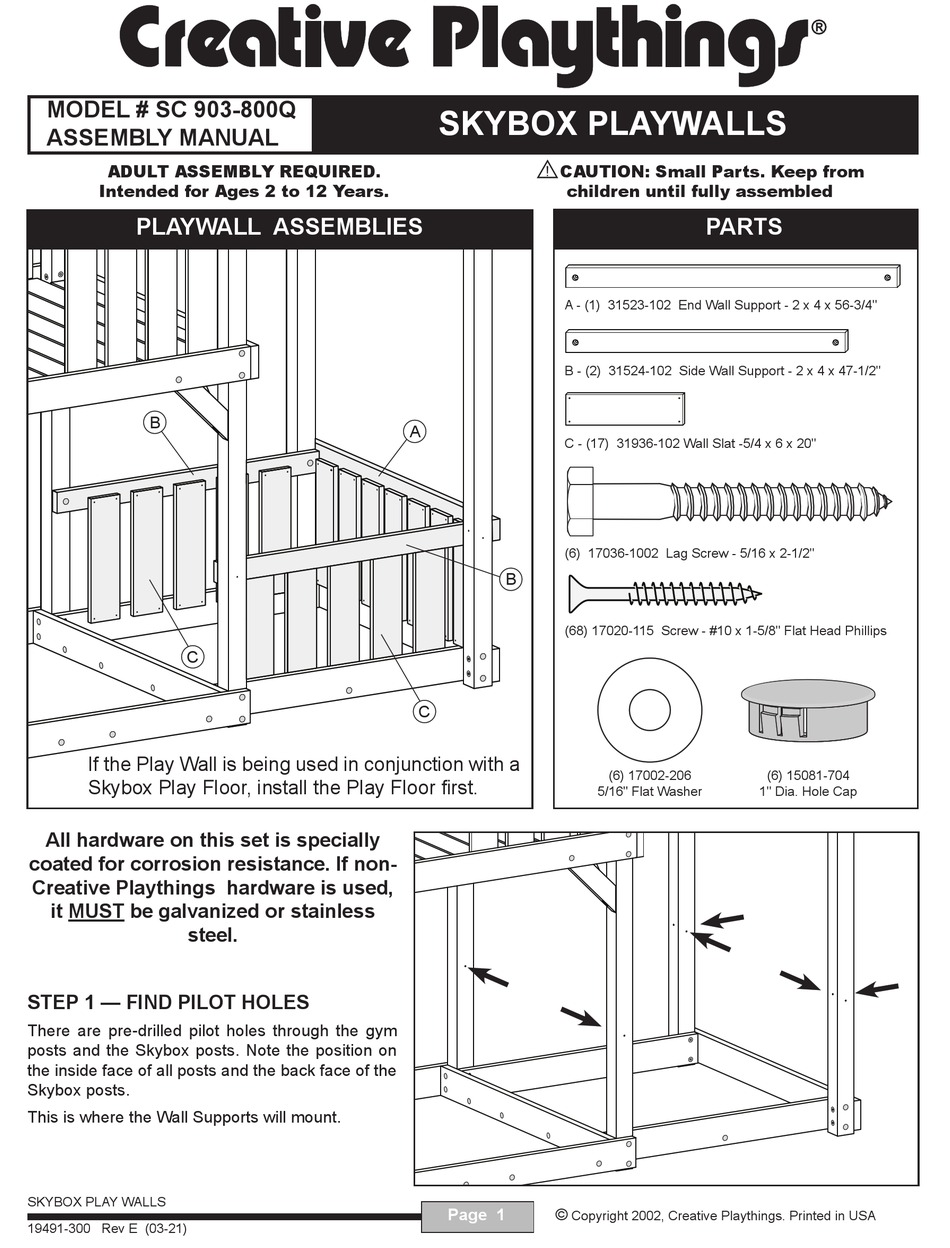

PLAYWALL ASSEMBLIES
B
C
If the Play Wall is being used in conjunction with a
Skybox Play Floor, install the Play Floor first.
All hardware on this set is specially
coated for corrosion resistance. If non-
Creative Playthings hardware is used,
it MUST be galvanized or stainless
steel.
STEP 1 — FIND PILOT HOLES
There are pre-drilled pilot holes through the gym
posts and the Skybox posts. Note the position on
the inside face of all posts and the back face of the
Skybox posts.
This is where the Wall Supports will mount.
SKYBOX PLAY WALLS
19491-300 Rev E (03-21)
SKYBOX PLAYWALLS
⚠
CAUTION: Small Parts. Keep from
children until fully assembled
A - (1) 31523-102 End Wall Support - 2 x 4 x 56-3/4"
B - (2) 31524-102 Side Wall Support - 2 x 4 x 47-1/2"
A
C - (17) 31936-102 Wall Slat -5/4 x 6 x 20"
(6) 17036-1002 Lag Screw - 5/16 x 2-1/2"
B
(68) 17020-115 Screw - #10 x 1-5/8" Flat Head Phillips
C
Page 1 ©
Copyright 2002, Creative Playthings. Printed in USA
PARTS
(6) 17002-206 (6) 15081-704
5/16" Flat Washer 1" Dia. Hole Cap
