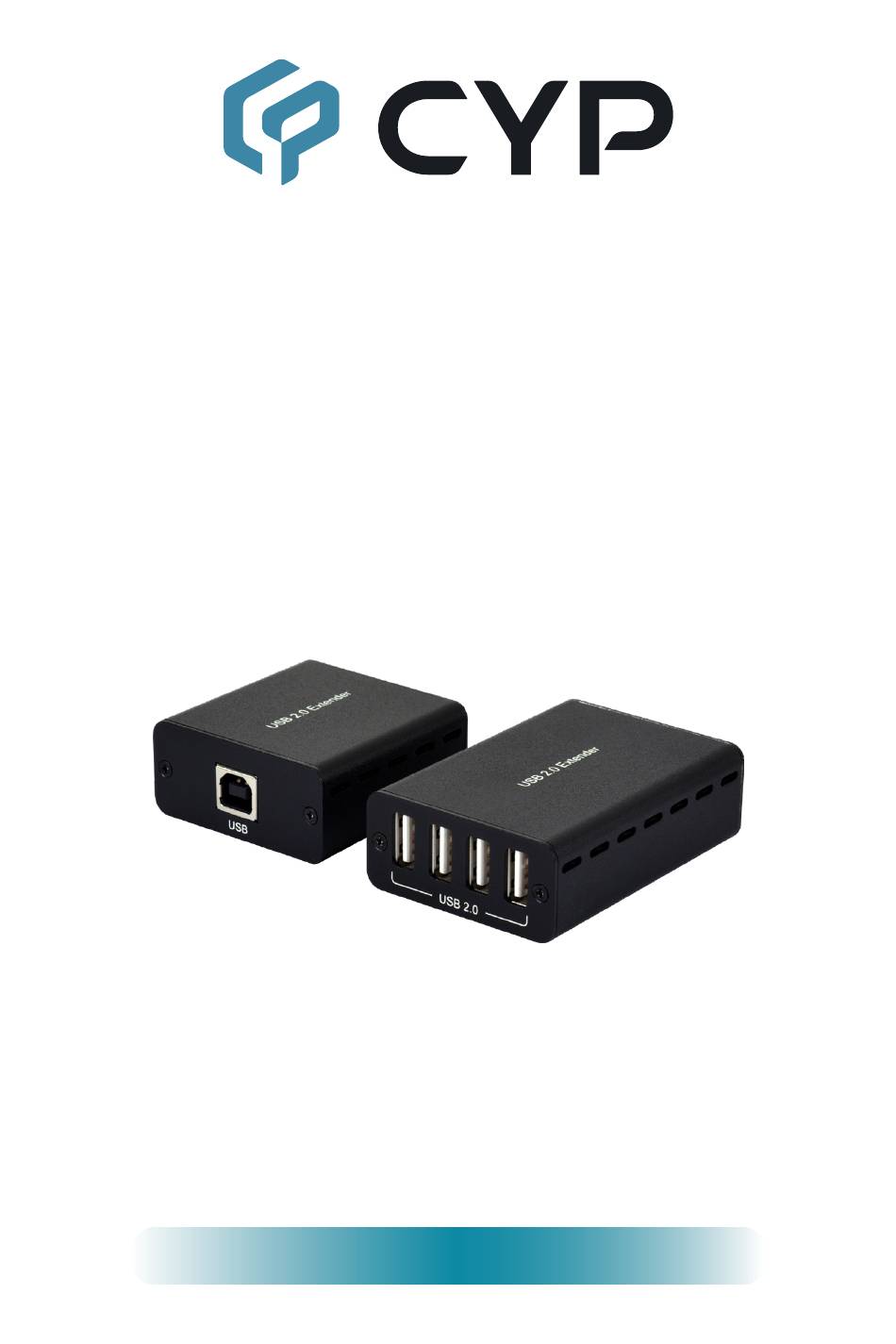

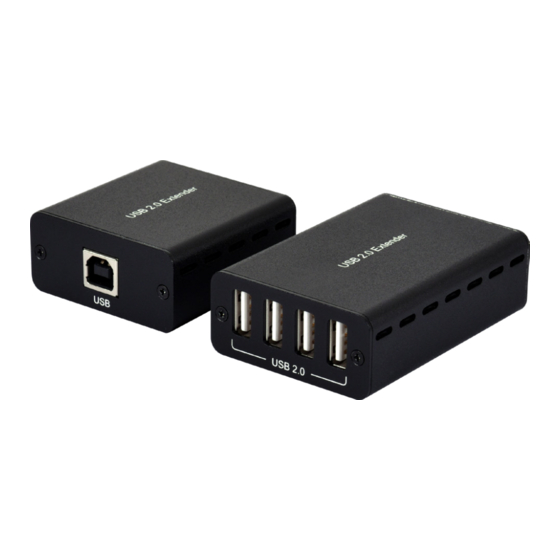

- Page 1 CH-710TX / CH-710RX USB 2.0 Extender Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Transmitter’s Front & Rear Panel ....3 6.2 Receiver’s Front & Rear Panel ....4 7. -
Page 6: Introduction
1. INTRODUCTION This compact and low cost USB 2.0 Extender set is designed to expand the usability and flexibility of the most prevalent interface standard used nowadays, USB. This extender provides a simple and efficient way to extend the USB 2.0 connection from a typical host, such as a PC or laptop, to up to 4 standard USB devices located as far as 50 meters away. -
Page 7: Features
5. FEATURES • Convenient point-to-point USB 2.0 extension with 4 port hub • 1 host port on the transmitter and 4 device ports on the receiver • Supports standard USB 2.0 devices, such as a mouse and keyboard, as well as those requiring isochronous transfers such as webcams and portable storage •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter’s Front & Rear Panel Front Rear CAT5e/6A/7 OUT CAT5e/6A/7 OUT USB Port: Connect directly to a USB host such as a PC or laptop to extend their USB functionality to devices connected to the USB ports on the currently connected receiver. -
Page 9: Receiver's Front & Rear Panel
6.2 Receiver’s Front & Rear Panel Front Rear DC 5V DC 5V CAT5e/6A/7 IN CAT5e/6A/7 IN USB 2.0 USB 2.0 USB 2.0 Ports: Connect directly to standard USB devices such as a mouse, keyboard or flash drive to extend their USB functionality to the host currently connected to the transmitter’s USB port. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop Input CAT5e/6A/7 OUT Cable DC 5V CAT5e/6A/7 IN USB 2.0 Power Supply Output Devices USB Storage Webcam... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Transmitter USB 2.0 Bandwidth 480Mbps Bi-directional Port 1×USB 2.0 (Type-B) Output Port 1×Cat.5e/6/7 (RJ-45) Power Supply Provided via Cat.5e/6/7 ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 50mm×25mm×52mm [Case Only] Weight Chassis Material Metal (Steel) Chassis Color Black... - Page 12 Receiver USB 2.0 Bandwidth 480Mbps Bi-directional Ports 4×USB 2.0 (Type-A) Input Port 1×Cat.5e/6/7 (RJ-45) Power Supply 5V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 50mm×25mm×72mm [Case Only] 50mm×25mm×72mm [All Inclusive] Weight Chassis Material Metal (Steel) Chassis Color...
-
Page 13: Cable Specifications
8.2 Cable Specifications USB 2.0 Cable Length 480Mbps Ethernet Cable Cat.5e/6 Cat.6A/7... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Mbps Megabits per second Powered Device Power Sourcing Equipment USB Audio Class Universal Serial Bus USB Video Class... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
