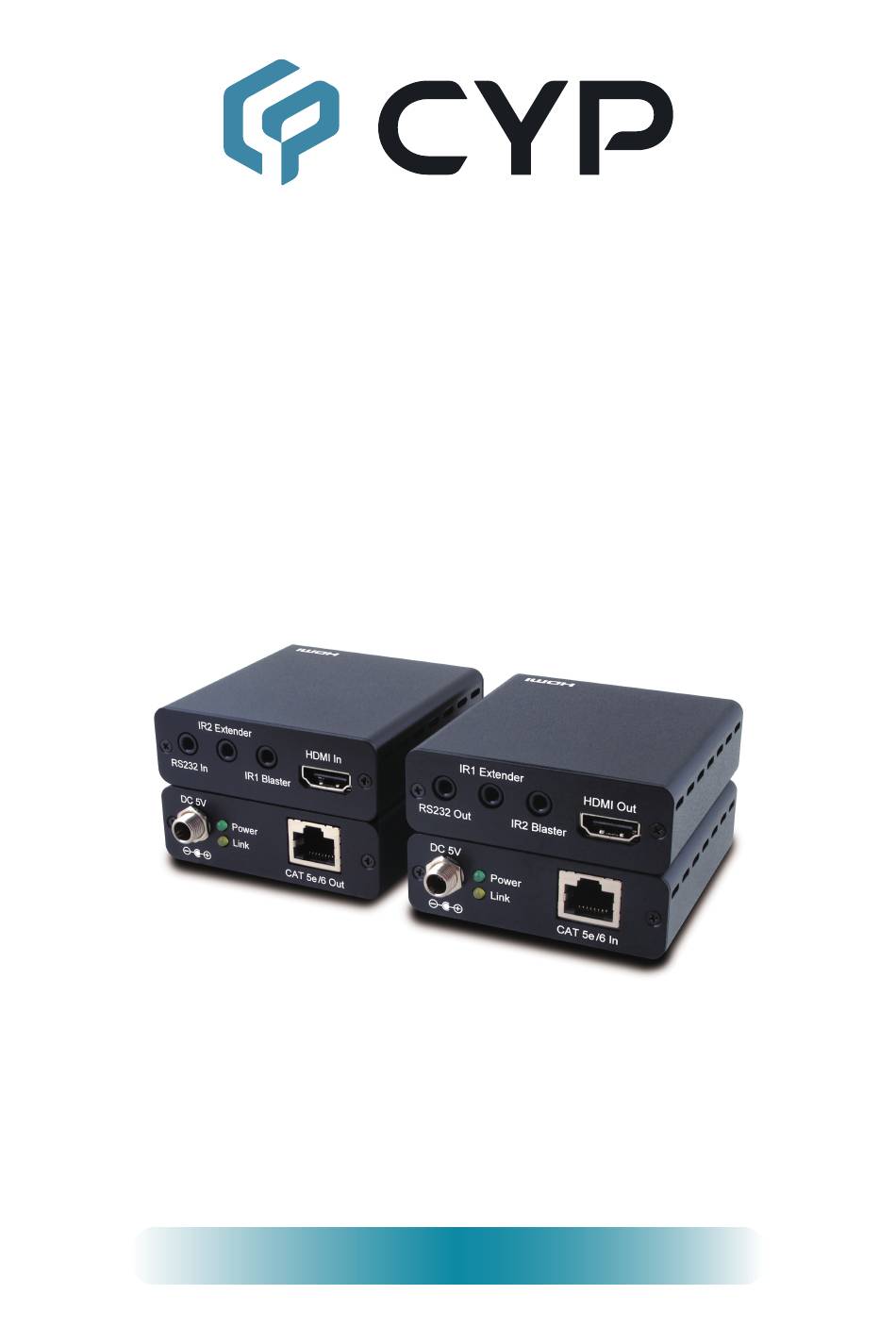

- Page 1 CH-506TX & RX CH-506TXL & RXL HDMI/IR/RS-232 over Single CAT5e/CAT6 Extender Operation Manual Operation Manual Operation Manual Operation Manual...
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features...........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 D-Sub 9-Pin Defi nitions ......5 6.4 IR Cable Pin Assignment ....5 7. -
Page 5: Introduction
1. INTRODUCTION The HDMI with RS-232 over Single CAT5e/6/7 transmitter and receiver set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m at 1080p and 70m at 4K* and has the added benefi t of control through the built-in RS-232 and IR ports. -
Page 6: Features
5. FEATURES • HDMI 1.x and DVI 1.0 compliant • HDCP compliant • Supports HDMI 3D and 4K x 2K features • Supports HDCP repeater and CEC function • Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable* •... -
Page 7: Operation Controls And Functions

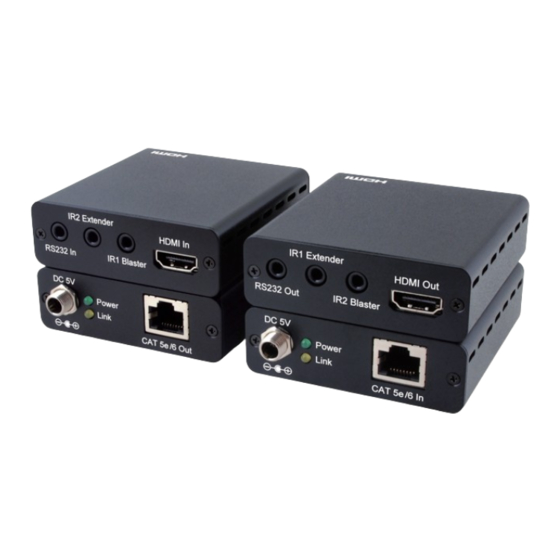

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear DC 5V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster CAT 5e /6 Out RS-232 In: Connect to a PC/laptop or RS-232 enabled device(with supplied 3.5 mm phone jack to D-Sub 9 pin adaptor) for the transmission of RS-232 commands. -
Page 8: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear DC 5V IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster CAT 5e /6 In RS-232 Out: Connect to the device that is to be controlled (with the supplied 3.5mm phone jack to D-Sub 9-pin adaptor) by RS-232 commands. -
Page 9: D-Sub 9-Pin Defi Nitions
6.3 D-Sub 9-Pin Defi nitions DEFINE TX/RX TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player RS-232 RS-232 HDMI Equipped 1.5m Adaptor PC or 60° Notebook IR Blaster 60° IR Extender Power Supply IR2 Extender HDMI In RS232 In IR1 Blaster DC 5V Power Link CAT 5e /6 Out Single CAT5e/6/7 Power... -
Page 11: Specifications
8. SPECIFICATIONS HDMI Bandwidth 10.2Gbps HDBaseT Bandwidth 10.2Gbps Transmitter Input Ports 1×HDMI, 1×IR Extender, 1×RS-232 Output Ports 1×CAT5e/6/7, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×RS-232, 1×IR Blaster IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200/sec Power Supply... -
Page 12: Cable Specifi Cations
8.1 Cable Specifi cations 1080p 4K30 4K60 8-bit 8-bit Cable Length 8-bit 12-bit (4:4:4) (4:2:0) High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6/7 100m Cat.5e/6 60m* 35m* Cat.6a/7 70m* 40m* *For Lite version • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Defi nition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
