Summary of Contents for CYP CH-506TXPLRXPL

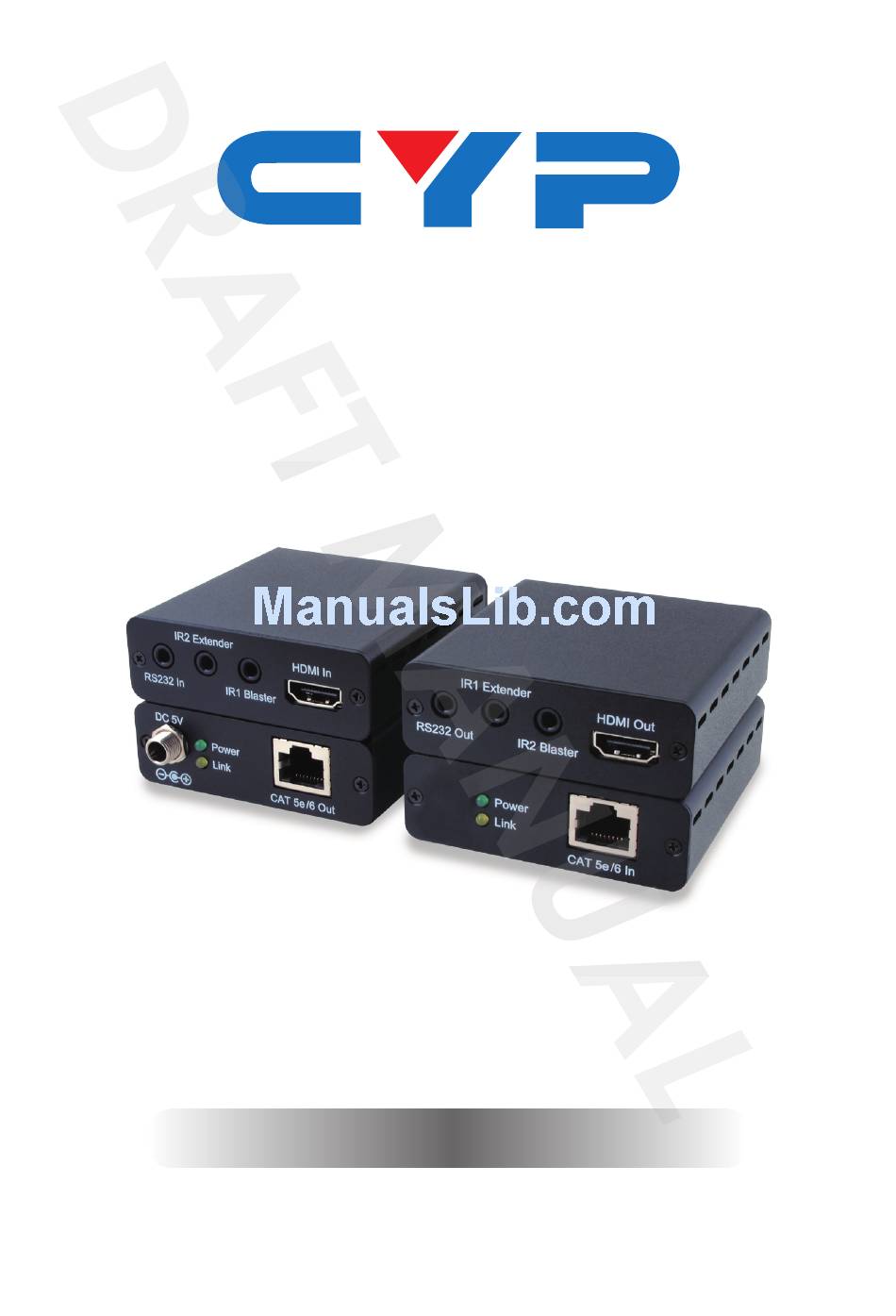

- Page 1 CH-506TXPLRXPL HDMI to CAT5e/6 Extender Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Pin Assignment ........ -
Page 6: Introduction
1. INTRODUCTION The HDMI over single CAT5e/6 with IR &RS-232 transmitter and receiver wall-mounted set can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the added benefit of controls through the built-in RS232 and IR ports. -
Page 7: Features
5. FEATURES • HDMI 1.4 with 3D, 4K x 2K support, HDCP and DVI compliant • Complies with the HDBase T-Lite class • Enables HDMI 1.4 (including HDCP), over a single CAT5e/6 up to • Full HD support: 1080p@60Hz@36 b/pixels, 3D over 60m and 4Kx2K over 40m with CAT5e/6 cable •... -
Page 8: Operation Controls And Functions

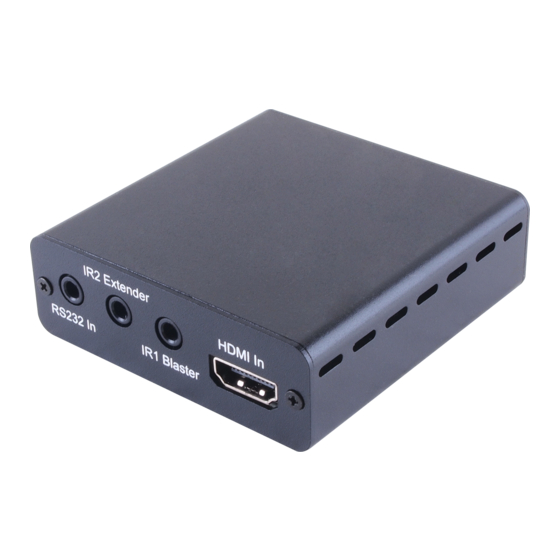

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 24V IR2 Extender HDMI In Power Link RS-232 In IR1 Blaster CAT 5e /6 Out Transmitter DC 24V Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels IR1 Extender HDMI Out Power Link RS-232 Out IR2 Blaster CAT 5e /6 In Receiver Power LED LINK LED This LED will illuminate in blue when the devices are connected with a CAT5e/6 cable. When the data transmission accrue with error the LED will be blinking. -
Page 10: Ir Pin Assignment
6.3 IR Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Grounding 6.4 D-Sub 9 Pin Definitions Define TX / RX TxD/RxD RxD/TxD... -
Page 11: Specifications
7. SPECIFICATIONS Video Bandwidth 300MHz/9Gbps Transmitter Input 1 x HDMI, 1 x IR Extender, 1 x RS-232 Output 1 x RJ45, 1 x IR Blaster Receiver Input 1 x RJ45, 1 x IR Extender Output 1 x HDMI, 1 x IR Blaster, 1 x RS-232 ESD Protection Human Body Model: ±8kV (air-gap discharge) -
Page 12: Connection And Installation
8. CONNECTION AND INSTALLATION DVD or Blu-ray Player RS-232 RS-232 HDMI Equipped 1.5m Adaptor PC or 60° Notebook IR Blaster 60° IR Extender Power Supply IR2 Extender HDMI In RS232 In IR1 Blaster DC 5V Power Link CAT 5e /6 Out Single CAT5e/6 Cable... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
