CH-514TXL/RXL
HDMI to CAT5e/6 Extender

Operation Manual

Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-514TXL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CH-514TXL

Summary of Contents for CYP CH-514TXL

  • Page 1: Operation Manual

    CH-514TXL/RXL HDMI to CAT5e/6 Extender Operation Manual Operation Manual...
  • Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 Transmitter and Receiver Top Panels ..

  • Page 5: Introduction

    1. INTRODUCTION The HDMI Extender over single CAT5e/6 incorporating IR signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) and supports High Definition Audio and 3D signals.

  • Page 6: Features

    5. FEATURES • HDMI with 3D, 4K×2K support, HDCP and DVI compliant • Complies with the HDBaseT-Lite class • Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m • Full HD resolution support (1080p@60Hz/36-bit), 3D, 4Kx2K and PC resolution support (VGA to WUXGA) over CAT5e/6 cable •...

  • Page 7: Operation Controls And Functions

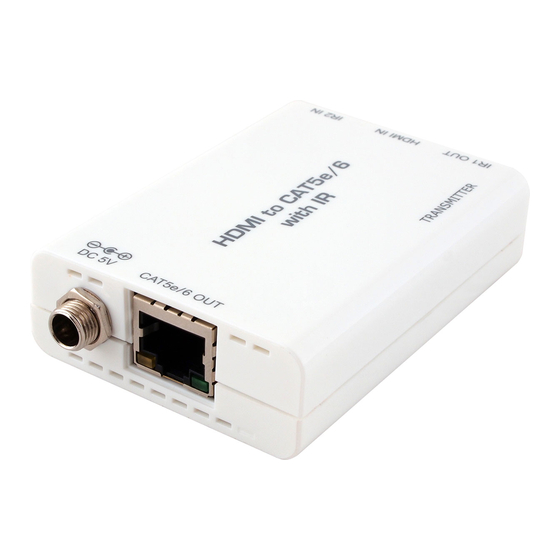

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 5V CAT5e/6 OUT IR1 OUT HDMI IN IR2 IN IR1 OUT/Blaster Connect to the supplied IR blaster for IR signal transmission to the source equipment from IR1 IN's IR signal. Place the IR blaster in direct line-of-sight of the equipment to be controlled.

  • Page 8: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels DC 5V CAT5e/6 IN IR1 IN HDMI OUT IR2 OUT DC 5V Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. CAT5e/6 IN Connect to the transmitter unit with a single CAT5e/6 cable for transmission of all data signals.

  • Page 9: Transmitter And Receiver Top Panels

    6.3 Transmitter and Receiver Top Panels CAT5e/6 to HDMI HDMI to CAT5e/6 with IR with IR TRANSMITTER RECEIVER 6.4 IR Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Ground...

  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray Player 1.5m 60° IR Blaster Power Supply 60° CAT5e/6 Power (60m) Supply 1.5m 60° IR Extender HDMI Cable 60° HD Monitor...

  • Page 11: Specifications

    8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Transmitter Input 1×HDMI, 1×IR Extender Output 1×RJ45, 1×IR Blaster Receiver Input 1×RJ45, 1×IR Extender Output 1×HDMI, 1×IR Blaster ESD Protection Human Body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) Power Supply 2×5 V/2.6 A DC (US/EU standards, CE/ FCC/UL certified) Dimensions 55 mm (W)×82 mm(D)×22.5 mm (H)/each...
  • Page 12 CAT5e/6/7 I/O Cable Distance Cable Type Range Pixel clock Video Data Supported Rate Video rate CAT5e/CAT6 60 m <=225 MHz <= 5.3 Gbps Up to 1080p, 60 Hz, 36-bit, 3D (HD Video) (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock).

  • Page 13: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared...
  • Page 14 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH514TXLRXL...

This manual is also suitable for:

Ch-514rxl
