Insignia NS-SDSK-BL Quick Setup Manual

QUICK SETUP GUIDE

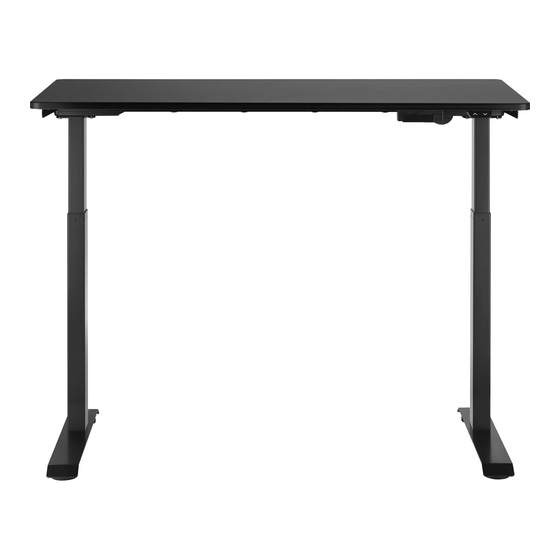

Standing Desk
NS-SDSK-BL / NS-SDSK-MH
PACKAGE CONTENTS
• Standing desk
• Small parts list
• Quick Setup Guide
FEATURES
• Easily adjusted to a comfortable height with a hand switch
• 19.7 in (50 cm) of height adjustment lets you use the desk while standing or sitting
• The desktop will hold up to 110 lb. and is suitable for a computer, printer, or
sewing machine (within the weight limit)
• Cable management for a clean look
• Choice of two colors, black or mahogany (both with black frame)
• Electric adjustment switch easily raises or lowers the desk height
• Steel frame with particleboard tabletop provides a stable work surface
Before using your new product, please read these instructions to prevent any damage.
SMALL PARTS LIST
No. Part
A
ST4.2*19
B
M6 x16
C
M6×16
D
4 x 4
MAJOR PARTS LIST
No. Part
1
8
2
Left column
TWO PERSON
LIFT REQUIRED
3
Right column
4
5
6
7
Hand switch
8
INSTALLING THE LEGS
1 Place the desktop upside down on a carpet or protective cloth.
Qty Note: Make sure that both legs are at their lowest setting
(turn the shaft in each leg to do this) before installation
so that the table will be level when assembled.
B
2
x 4
D
4
4 x 4
2
8
1
2 Insert the hexagonal shaft in the first leg
5 x 5
the desktop leg mount, then turn the leg until the screw holes line up and the
connecting cable on the top of the leg faces the in toward the motor.
Qty
1
Tabletop
1
3 Attach the leg to the desktop with four M6 x 16 screws, tightening them
firmly with the 4 x 4 Allen key.
1
B
2
Feet
1
Power Plug
4
Repeat the steps to attach the other leg
1
Note: See the section on "Installing the Adapter and Connecting the Cables"
Adapter
for cable connections.
1
4
Cable ties
INSTALLING THE FEET
Attach the feet to the bottoms of the legs with four 6 x 16 screws each. Make
sure that the adjustable pads on the bottom of the feet face down and
the long portion of each foot faces forward (as shown).
C
x 8
D
4 x 4
into the corresponding hole in
INSTALLING THE SWITCH
Top view
Attach the switch to the bottom of the desktop with two ST4.2*19 screws. Tighten
the screws with the 5 x 5 Allen key. Make sure that the flat side of the switch is
against the desktop and the UP and DOWN buttons are facing forward.
A
D
x 2
D
5 x 5
.
2
D
C
C
Adjustable pad
D
A
Hand switch
