STM32W108 SimpleMAC demonstration applications
You need to use at least two boards to perform the demonstration. Follow the instructions:
1. Load the one board with the sun role application.
2. Load the remaining boards with the planet role application.
3. Open a terminal on the sun board and type f.
4. Push the S1 button on all the planet role boards in sequence, waiting for LED D3 to
switch on indicating a successful connection to the sun.
5. All the planets should have LED D3 on, and you should now see messages coming
from planets to the sun.
4.1.9

Running the sample demonstration application on the STM32-Primer2

with an MB850 board

The STM32-Primer2 with MB850 sun application supports some of the sample
demonstration events and input commands described in
Primer2 interface resources (LCD, joystick with button, touch screen).

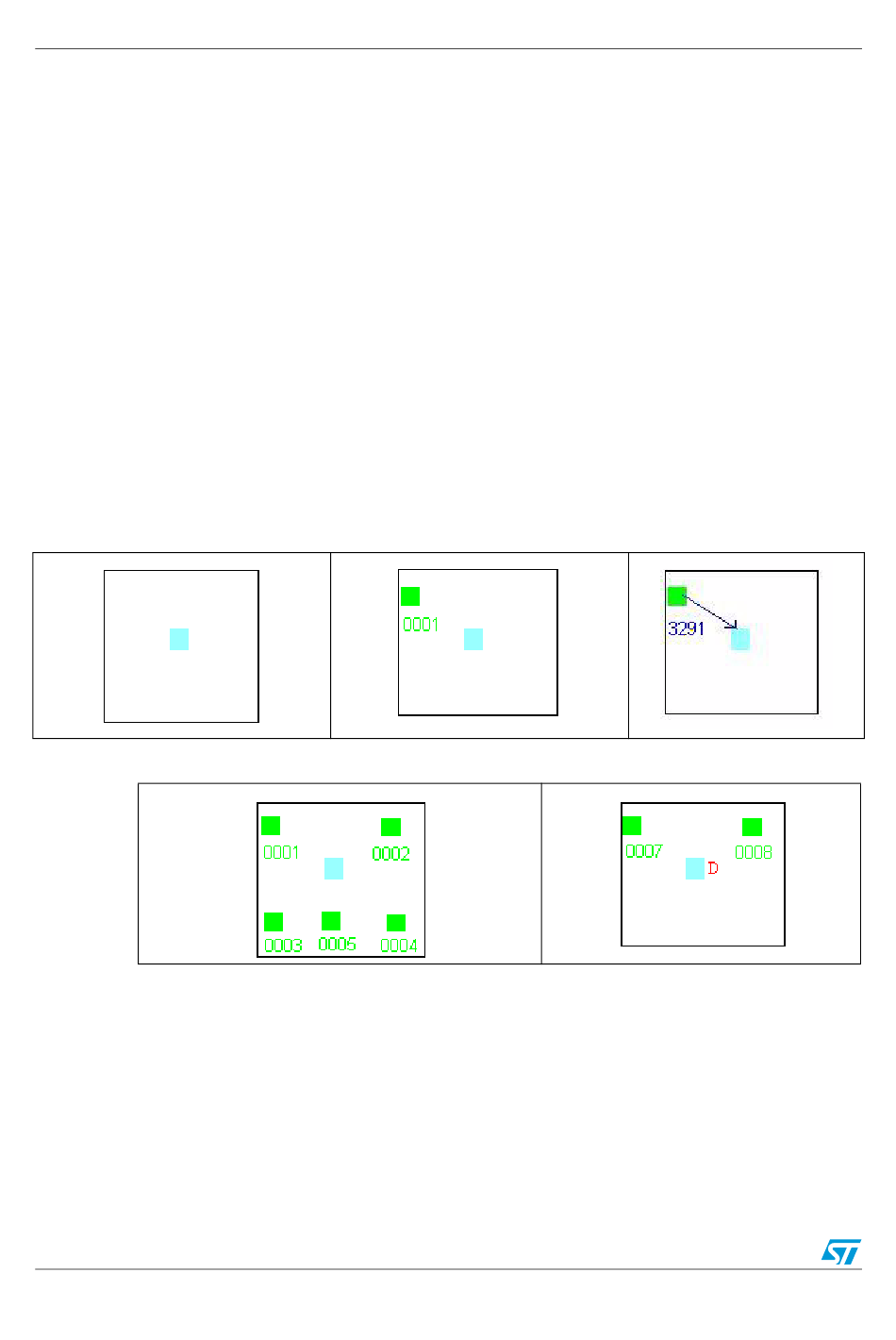

These events and commands are mapped to graphic events displayed on the STM32-
Primer2 LCD, as shown below.
Figure 8. Star network created
by sun

Figure 11. Sun plus 5 planets

24/54
Figure 9. Planet associated to
sun
Doc ID 16995 Rev 10
Section 4.1 through the STM32-
Figure 10. Data sent from

Figure 12. Network down

UM0893
planet to sun
