EVM Operation

6.3 Initial Required Setup on the Config Tab

After the EVM GUI is started, you must press some buttons (Initialize USB, Power Up, Program FPGA, and
Initialize ADS98xx) to perform the initial configurations. As shown in
from top to bottom. Wait after each button press for the status to indicate that the step is complete. For the
Power Up and Program FPGA buttons, some status LEDs on the hardware illuminate. The power-up step takes
the longest time (approximately 30 seconds). After all four buttons are pressed, the power on the ADS9218EVM
is on and the ADS9218 device registers are configured.
Press the bu
Wait a e r each bu on press for
¢
the status to indicate that the
step is complete.
16 ADS9218EVM-PDK Evaluation Module
o ns circled below.
¡

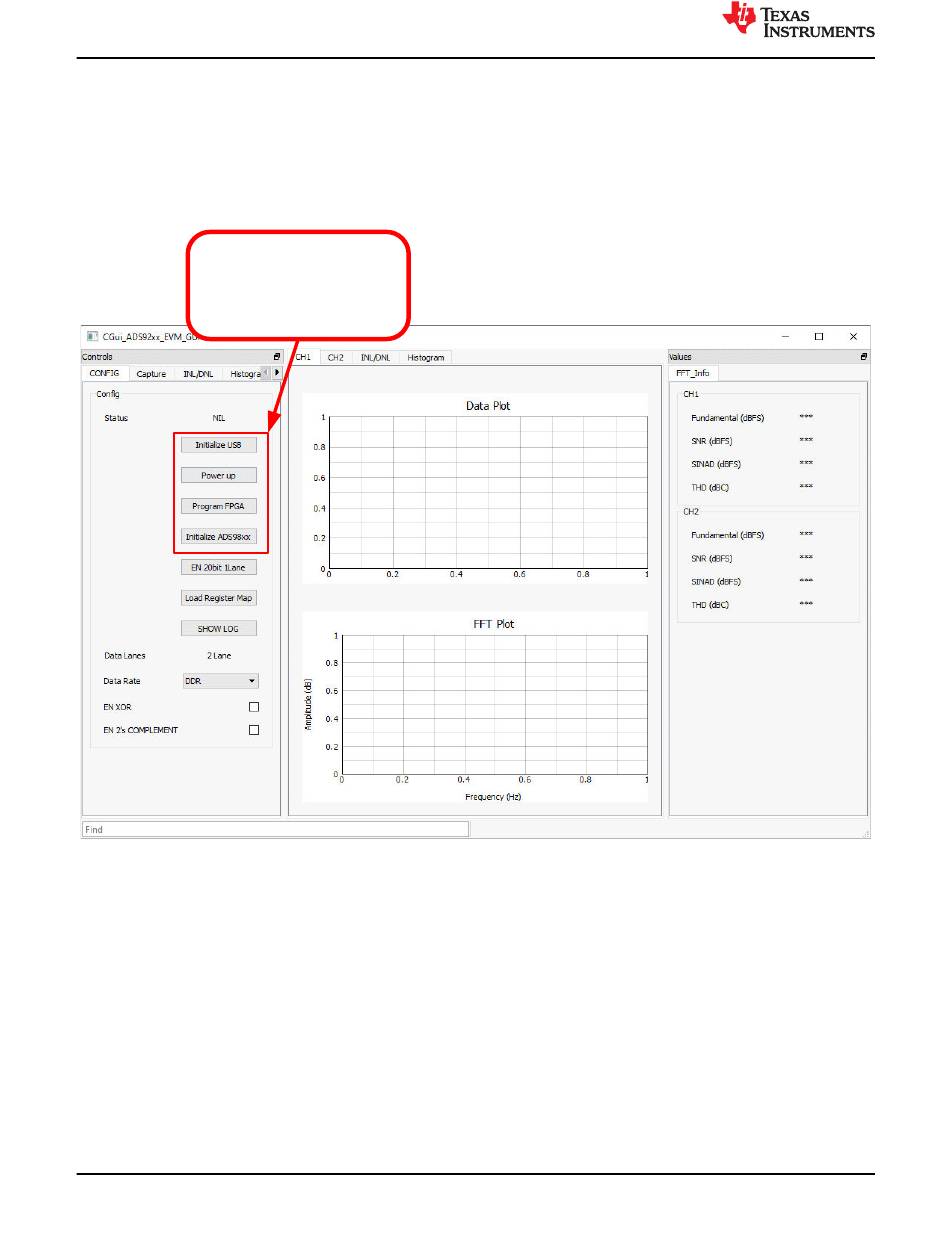

Figure 6-4. Initial Required Setup on the Config Tab

Copyright © 2022 Texas Instruments Incorporated
Figure 6-4, press these buttons in order
