3.1 Clock Connection

The EVM allows for an external differential clock, an external single-ended clock, or a clock signal from
the TSWDC155EVM controller card. Jumper J11 selects either the external clock or a clock from the
TSWDC155EVM. J5 grounds the negative clock if a single-ended clock is applied.
connection circuit.
SBAU409 – SEPTEMBER 2022
Submit Document Feedback
J1
EXT_SMPL_CLKP
1
R4
DNP
49.9
GND
EXT_SMPL_CLKM
J5
J2
1 1
2
GND GND
EXT_SMPL_CLKP
1
SMPL_CLKP
2
FPGA_SMPL_CLKP
3
J11

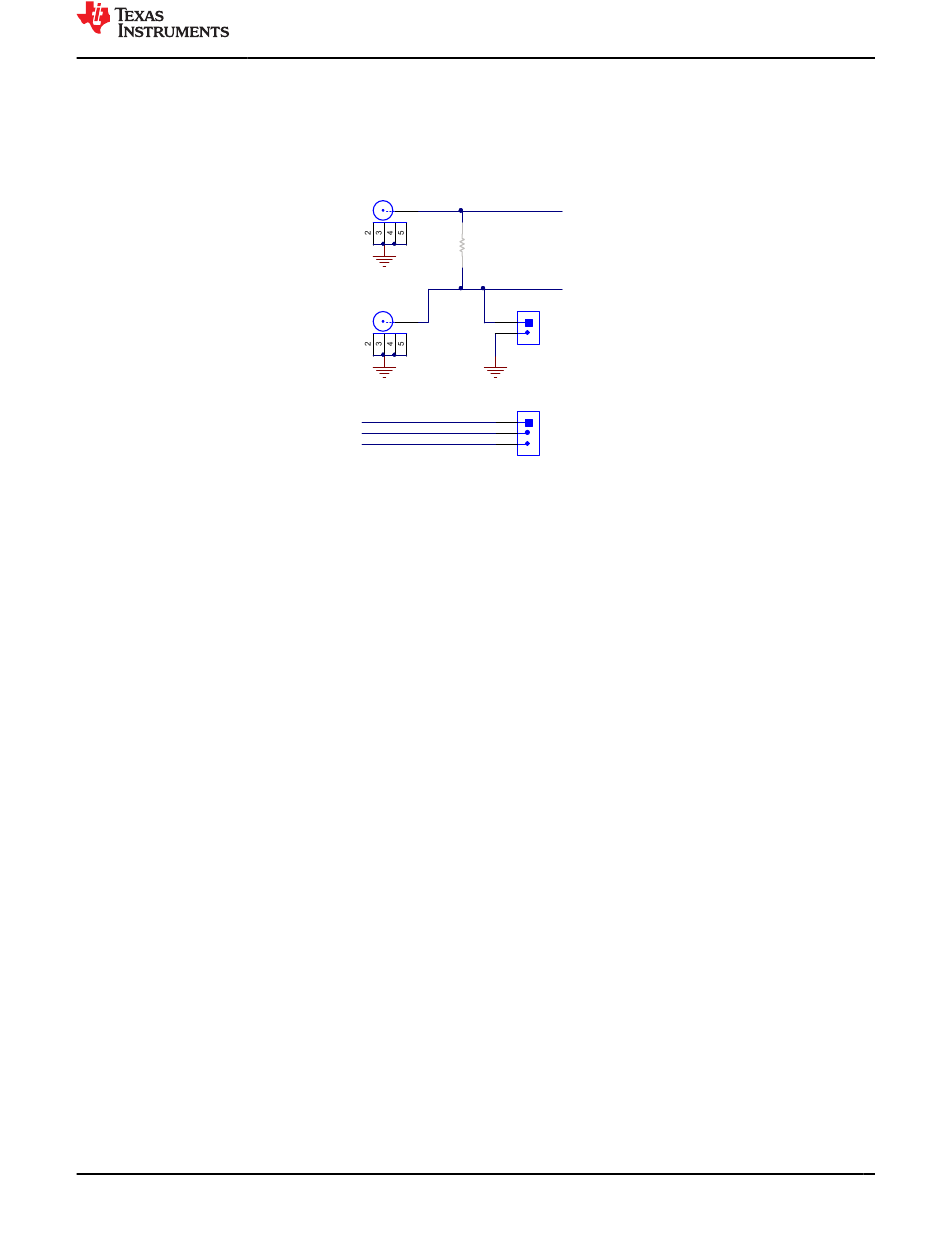

Figure 3-2. Clock Connection

Copyright © 2022 Texas Instruments Incorporated
Digital Interface
Figure 3-2 shows the clock
