5.4 Initial Required Setup on the Config Tab

After the EVM GUI is started, press the Initialize USB, Power Up, Program FPGA, and Initialize ADS98xx
buttons to setup the initial configurations. As shown in
bottom. Wait after each button press for the status to indicate that the step is complete. For the Power Up and
Program FPGA buttons, some status LEDs on the hardware illuminate. The power-up step takes the longest
time (approximately 30 seconds). After all four buttons are pressed, the power on the ADS9817EVM is on and
the ADS9817 device registers are configured.
Press the bu o ns circled below.
¡
Wait a e r each bu on press for
¢
the status to indicate that the
step is complete.
SBAU416 – NOVEMBER 2022
Submit Document Feedback
Figure

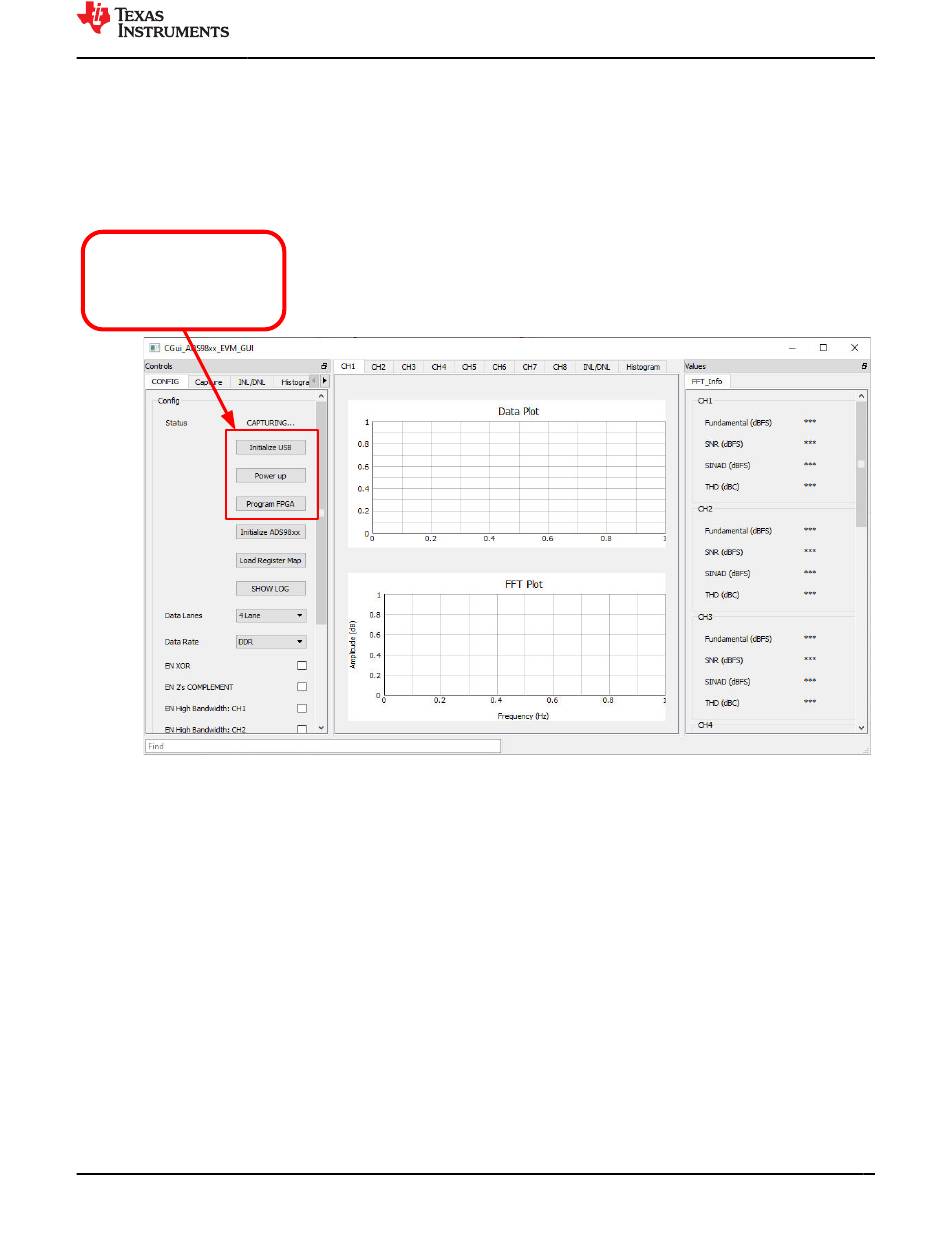

Figure 5-7. Initial Required Setup on the Config Tab

Copyright © 2022 Texas Instruments Incorporated
5-7, press these buttons in order from top to
