2.2 ADC Differential Input Fully Differential Amplifier (FDA)

The THS4552 FDA is used to amplify the input signals applied to the SMA connector. The amplifier is a dual
configuration for the two different ADC channels. Each channel is configured with the same discreet feedback
components. The amplifier gain is set to 1 V/V and the bandwidth is set to 500 kHz for good performance up to
100 kHz. The ADS9218 Power Optimized Signal Chain Circuit
can help adjust component values for different optimizations.

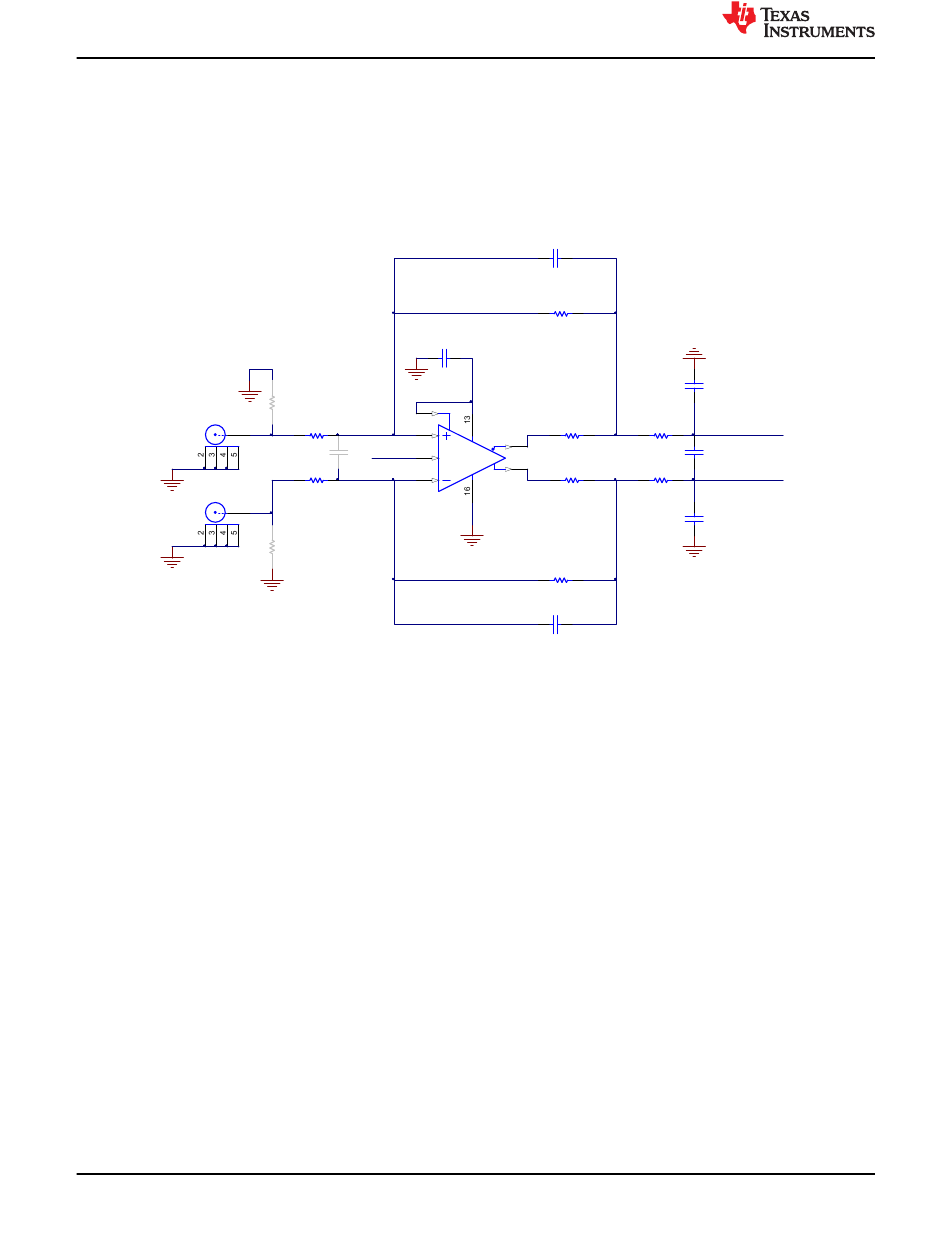

Figure 2-2 shows a schematic of the FDA driver components.
